HP ProLiant DL320 Maintenance And Service Guide

Removal and Replacement Procedures
Shipping/Ejector Key
The server includes a shipping/ejector key that secures the optical device/diskette drive
assembly or the bezel blank during shipping. This key should be removed before deploying
the server. This key is also used to eject an assembly or the blank.
CAUTION: Always install the shipping/ejector key in its storage location inside the chassis
before shipping the server. Failure to do so can result in damage to the optical device/diskette
drive assembly.
To remove the shipping/ejector key:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
3. Identify and lift the shipping/ejector key from its storage location inside the chassis.

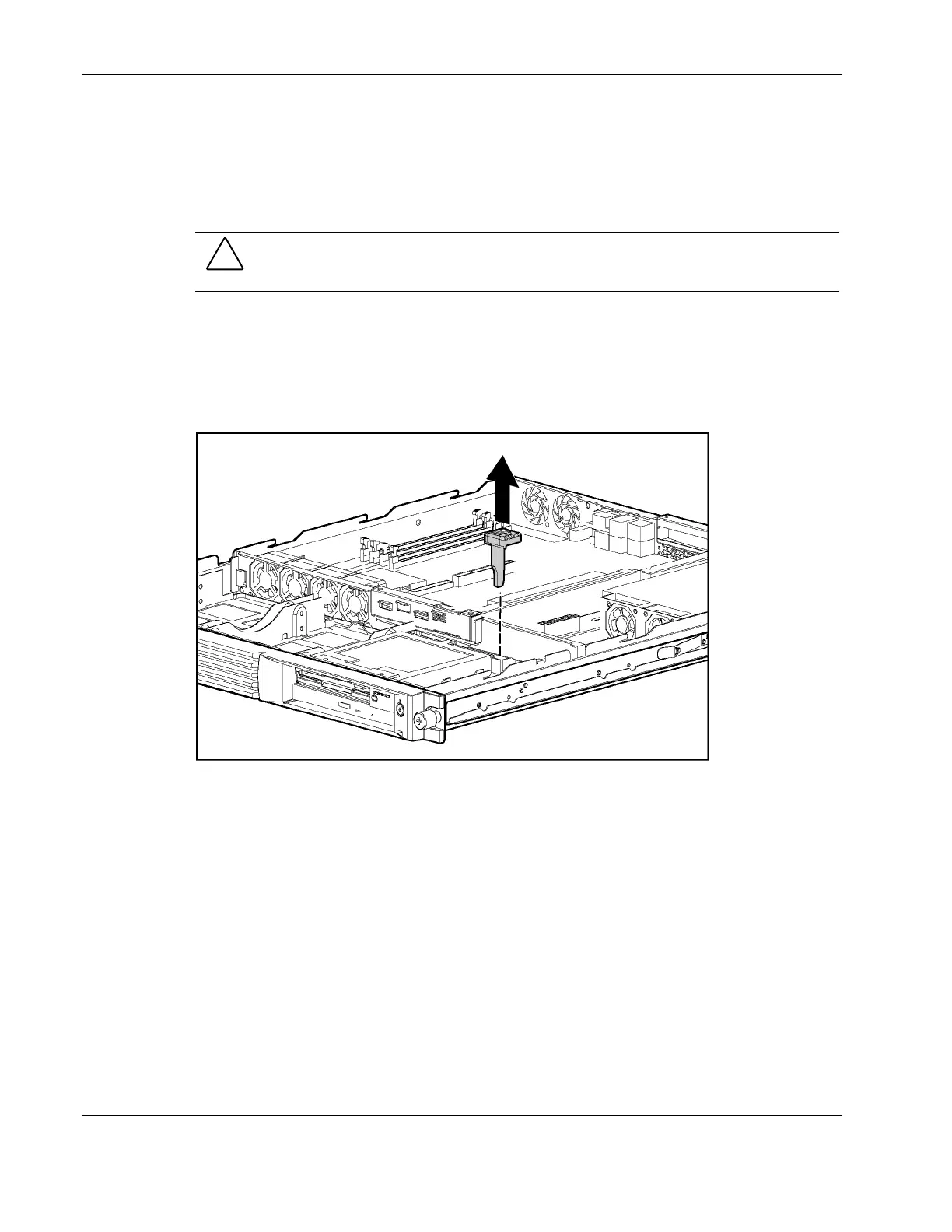

Figure 2-2: Removing the shipping/ejector key
Reverse steps 1 through 3 to replace the shipping/ejector key.
