HP ProLiant DL320 Maintenance And Service Guide

Removal and Replacement Procedures
Power Supply
IMPORTANT: A “Fan 5 Error” indicates an error from one of the fans located in the power supply.
When this error occurs, replace the entire power supply unit.
To remove the power supply:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Server Access Panel” in this chapter.
3. Remove the PCI riser board assembly. See “PCI Riser Board Assembly” in this chapter.
4. Remove the center wall. See “Center Wall” in this chapter.
5. Disconnect the hard drive power cables from the hard drives (1).
6. Disconnect the power supply cable from the power supply connector on the system board
by pressing the locking tab on the side of the connector and pulling upwards (2).
7. Remove the two Phillips-head screws that secure the power supply unit to the chassis (3).
8. Slide the power supply away from the back of the chassis and lift it from the server (4).

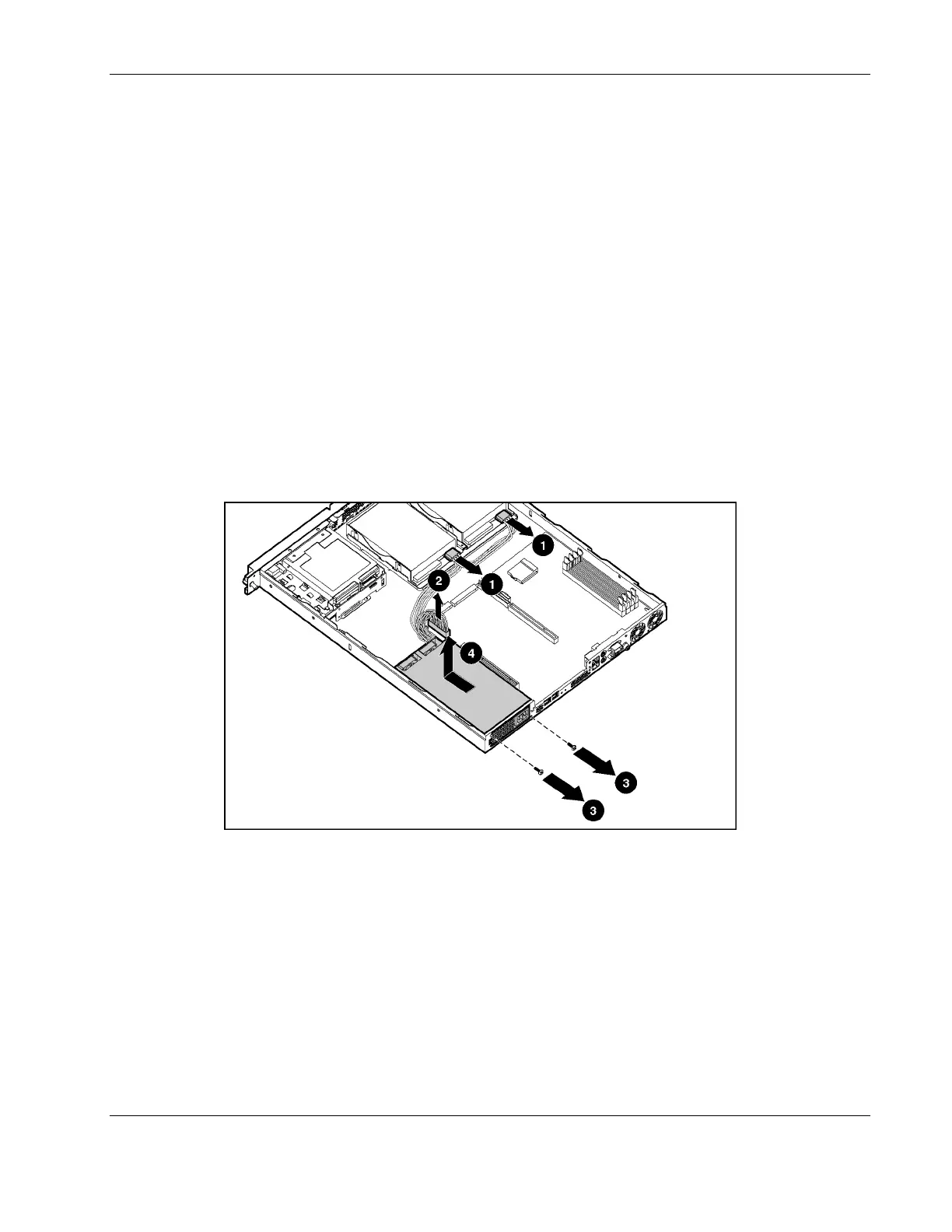

Figure 2-26: Removing the power supply
Reverse steps 1 through 8 to replace the power supply.
