HP ProLiant DL320 Maintenance And Service Guide

Removal and Replacement Procedures
Bezel
To remove the bezel:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
3. If necessary, remove the optical device/diskette drive assembly or bezel blank. See
“Optical Device/Diskette Drive Assembly,” or “Bezel Blank” in this chapter.
4. Remove the four screws that secure the bezel to each side of the chassis.

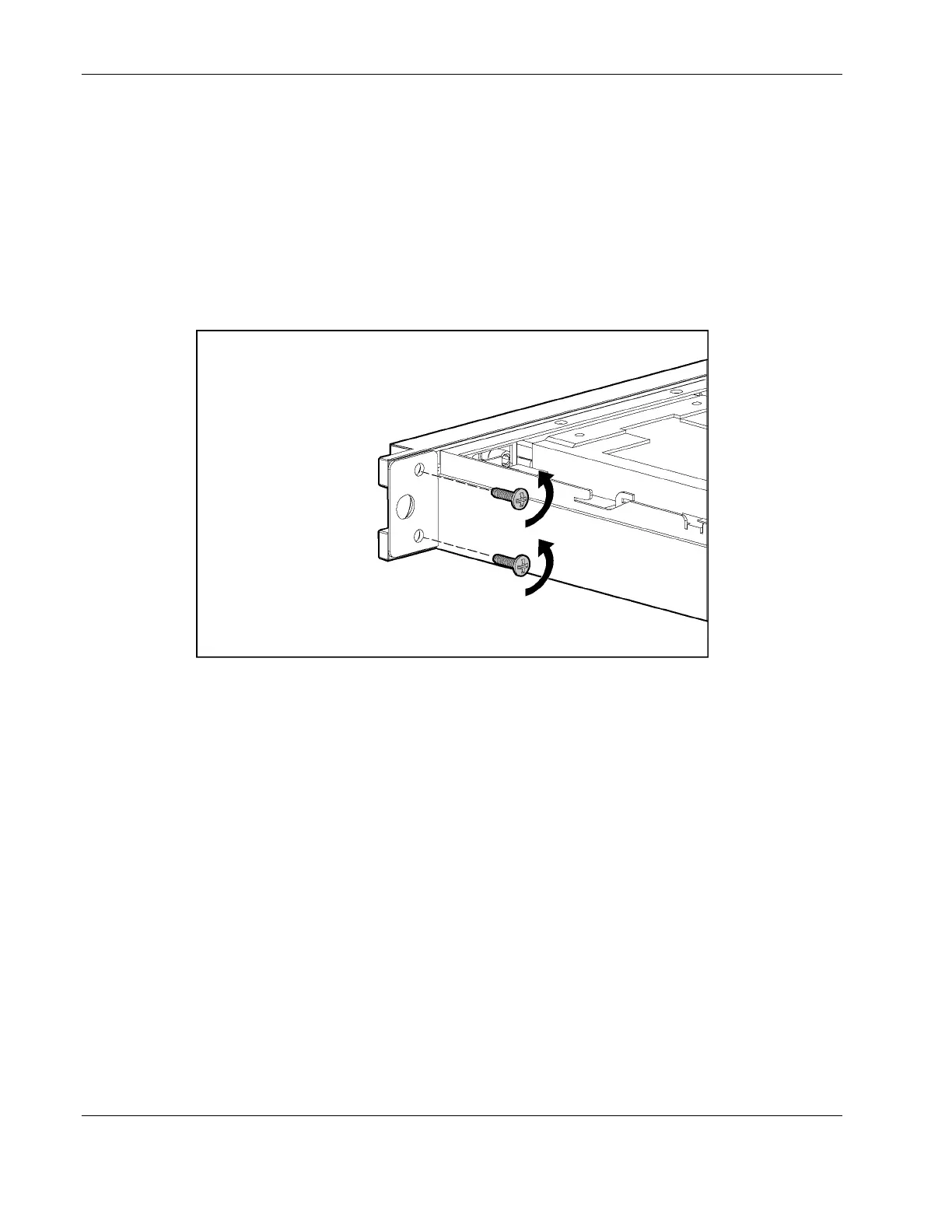

Figure 2-6: Removing the bezel screws
2-12 HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Moonstar 266 Part Number: 293164-002 Last Saved On: 4/14/03 9:37 AM

HP ProLiant DL320 Specifications

General

Product Line	ProLiant
CPU Type	Intel Xeon
Storage	Up to 4 LFF (3.5") or 8 SFF (2.5") SAS/SATA/SSD drives (depending on model and configuration)
Network	Embedded 1GbE
Power Supply	Single or Redundant Power Supplies (depending on model and configuration)
Form Factor	1U
Server Type	Rack Server
