HP ProLiant DL320 Maintenance And Service Guide

Removal and Replacement Procedures
Single Channel Wide Ultra3 SCSI Controller Module
To remove the SCSI module:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
CAUTION: Prevent damage to the connector pins by lifting the SCSI module evenly and with
equal pressure on the board. Tilting the board causes the connector pins to bend.
3. Remove the SCSI module by pinching the tops of the support posts and carefully lifting
the SCSI module from the system board.
4. Disconnect the SCSI cable from the SCSI controller connector on the module.

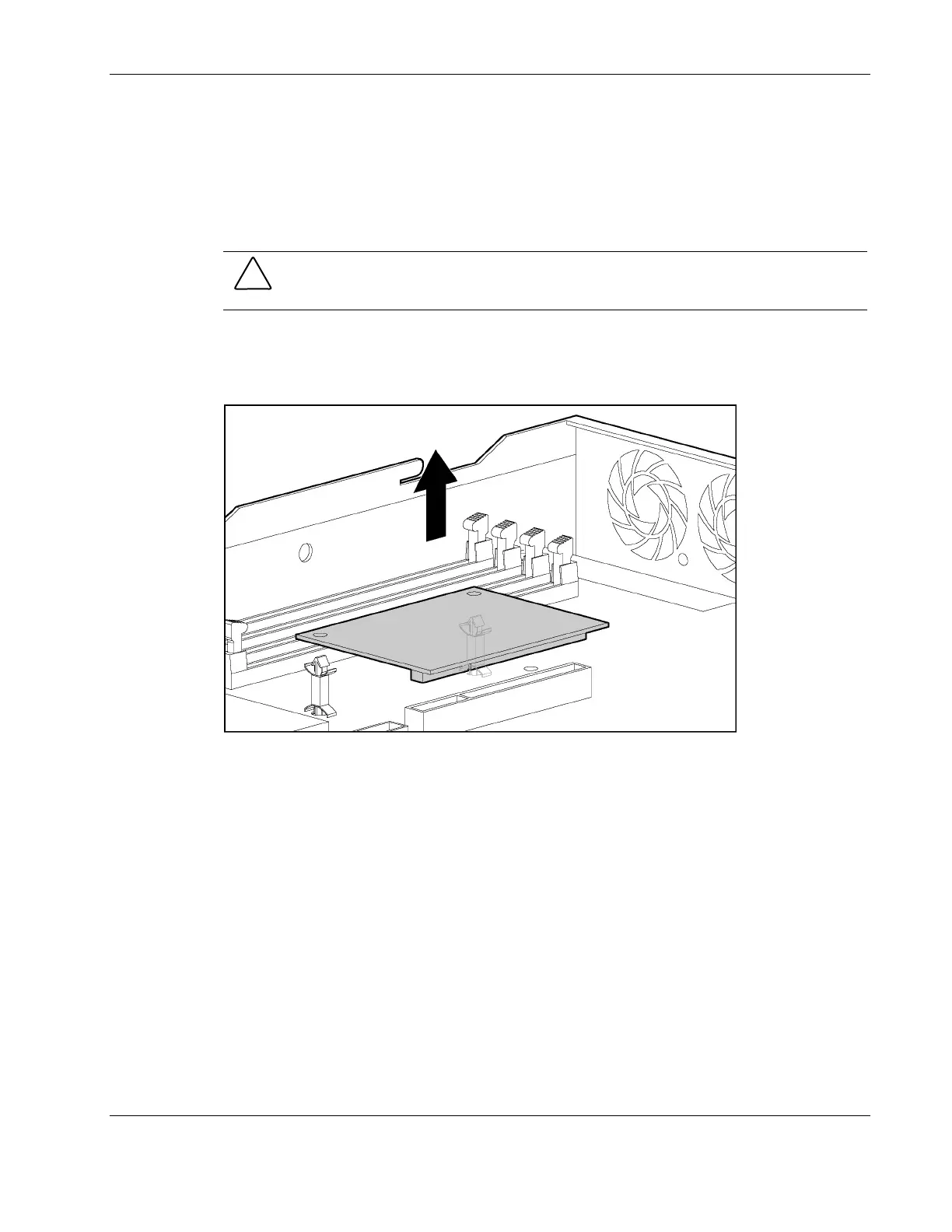

Figure 2-13: Removing the SCSI module from the system board
To replace the SCSI module, reverse steps 1 through 4, ensuring that the SCSI module seats
securely on the support posts.
HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide 2-19
HP CONFIDENTIAL Codename: Moonstar 266 Part Number: 293164-002 Last Saved On: 4/14/03 9:37 AM
