Removal and Replacement Procedures
6. Remove the four 6-32 Phillips-head screws that secure the hard drive to the
hard drive tray (1).
7. Remove the hard drive from the hard drive tray (2).

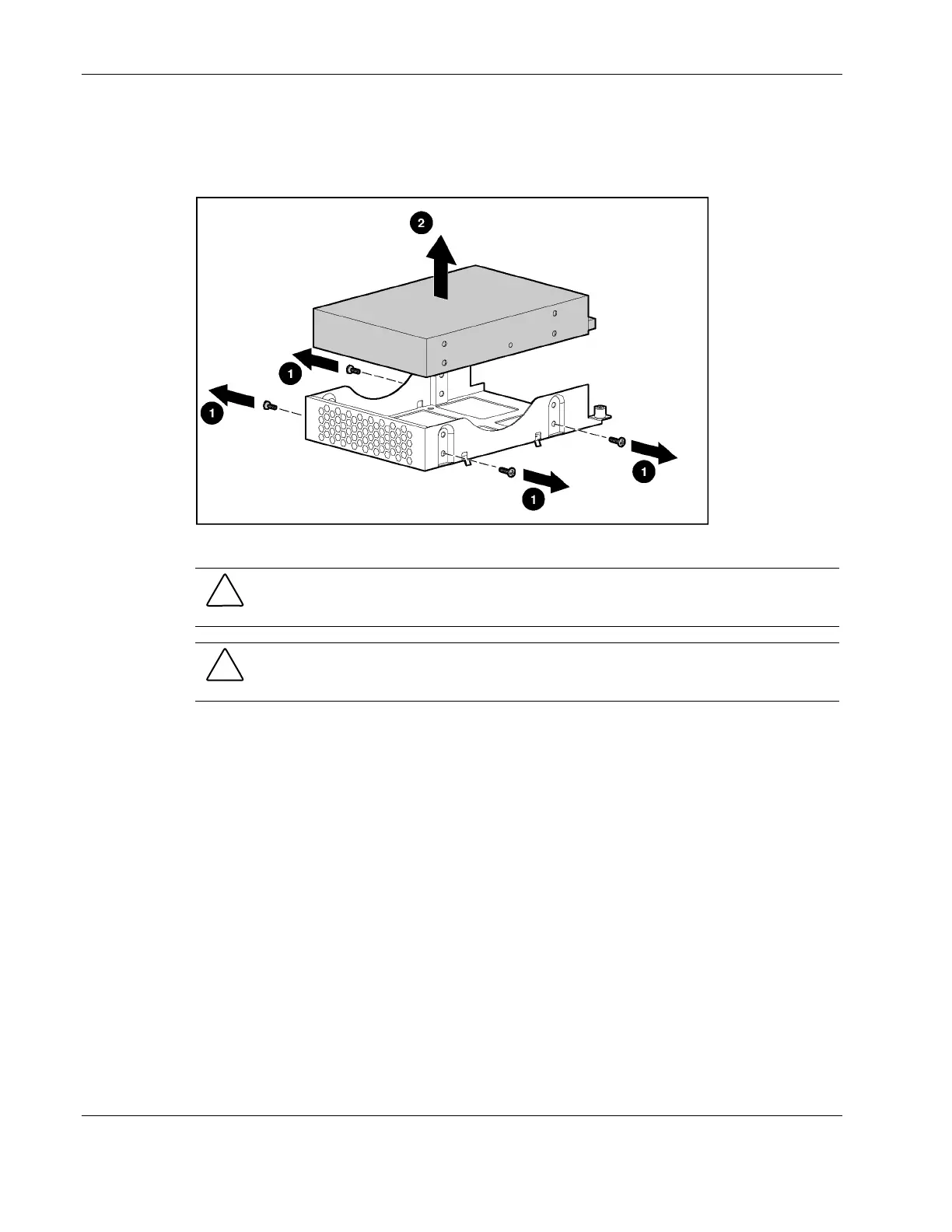

Figure 2-12: Removing the hard drive from a hard drive tray
CAUTION: Review “Guidelines for SCSI Hard Drives” and “Guidelines for ATA Hard Drives”
in this chapter to ensure proper jumper settings and hard drive configuration.
CAUTION: When connecting the power cable to the hard drives, ensure that the connectors
are installed so that the red wire faces right when viewed from the front of the server.
IMPORTANT: Ensure that the hard drives are installed with the data and power connectors along the
bottom of the tray, facing away from the front vent holes.
Reverse steps 1 through 7 to replace the hard drive.
