HP ProLiant DL320 Maintenance And Service Guide

Illustrated Parts Catalog

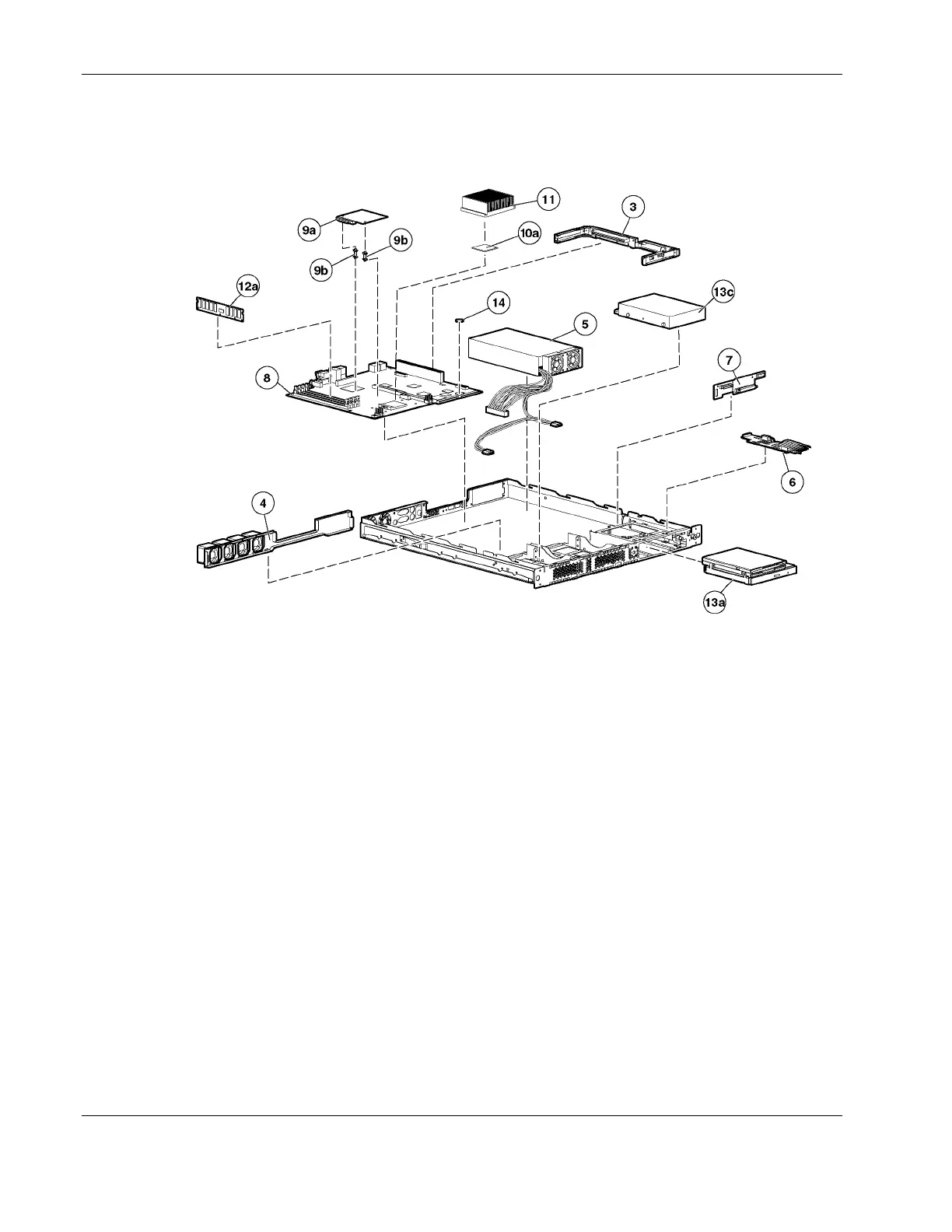

System Components Exploded View
Figure 1-2: System components exploded view
1-2 HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Moonstar 266 Part Number: 293164-002 Last Saved On: 4/14/03 9:34 AM

HP ProLiant DL320 Specifications

General

Product Line	ProLiant
CPU Type	Intel Xeon
Storage	Up to 4 LFF (3.5") or 8 SFF (2.5") SAS/SATA/SSD drives (depending on model and configuration)
Network	Embedded 1GbE
Power Supply	Single or Redundant Power Supplies (depending on model and configuration)
Form Factor	1U
Server Type	Rack Server
