HP ProLiant DL320 Maintenance And Service Guide

Removal and Replacement Procedures
Memory Modules
The server supports up to four PC2100 DDR ECC registered 266-MHz SDRAM DIMMs
installed in four sockets on the system board.
NOTE: Populate the DIMM sockets in descending sequential order, starting with DIMM socket 4.

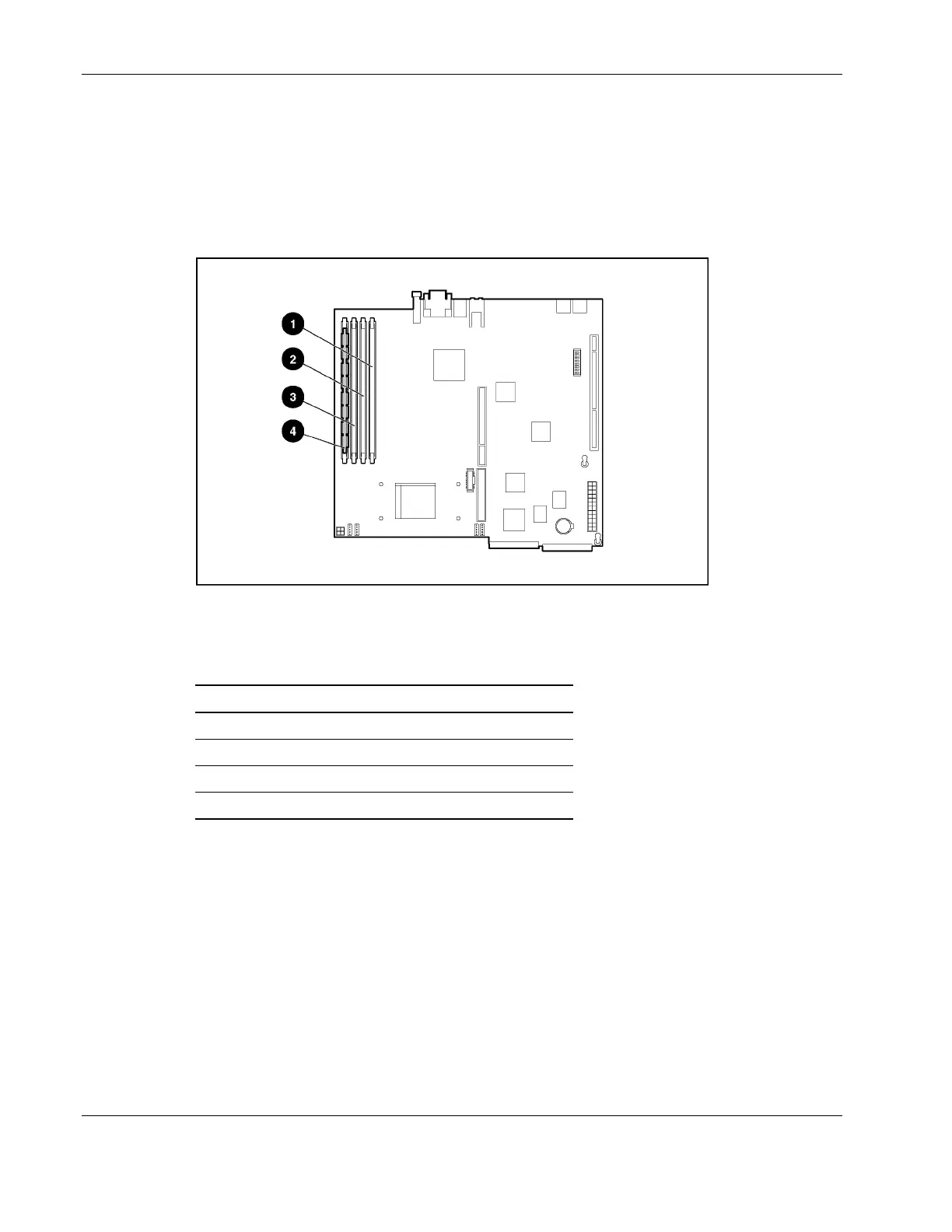

Figure 2-28: Identifying DIMM sockets on the system board (center
wall removed for clarity)
Table 2-1: DIMM Socket Identification
Item Description
1 DIMM socket 1
2 DIMM socket 2
3 DIMM socket 3
4 DIMM socket 4 (populated)
2-34 HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Moonstar 266 Part Number: 293164-002 Last Saved On: 4/14/03 9:37 AM
