HP ProLiant DL320 Maintenance And Service Guide

Removal and Replacement Procedures
To remove the battery:
1. Power down the server. See “Powering Down the Server” in this chapter.
2. Remove the access panel. See “Access Panel” in this chapter.
3. Locate the battery on the system board.

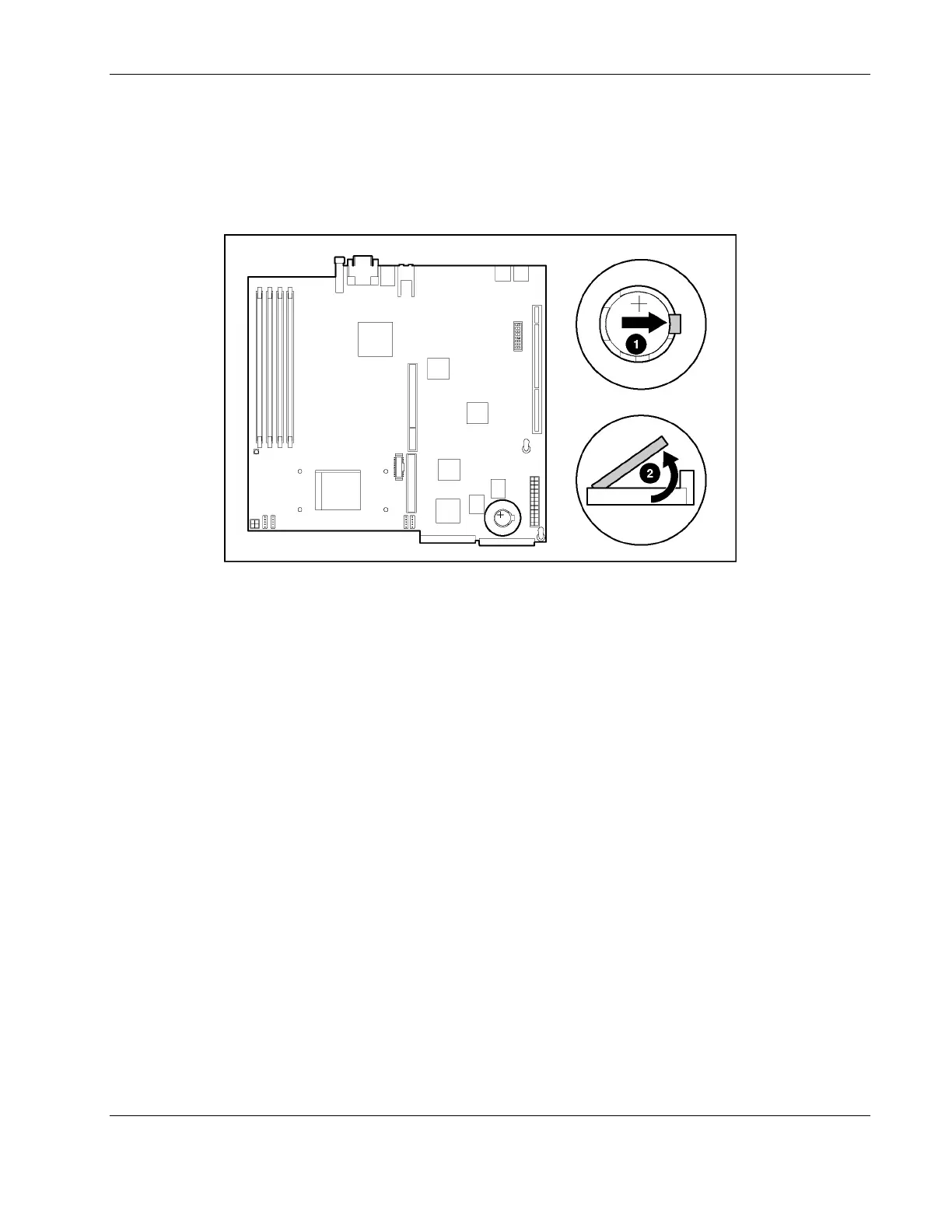

Figure 2-27: Locating and removing the system battery
4. If necessary, remove the PCI riser board assembly to access the battery location. See
“PCI Riser Board Assembly” in this chapter.
5. Press the battery release lever away from the battery (1).
6. Lift the battery on the lever side and pull it out of the holder (2).
IMPORTANT: Do not bend the retaining clip during battery replacement. For proper operation, the clip
must maintain a position of contact with the battery.
Reverse steps 1 through 6 to replace the battery, ensuring that the new battery is installed
with the positive side up.
HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide 2-33
HP CONFIDENTIAL Codename: Moonstar 266 Part Number: 293164-002 Last Saved On: 4/14/03 9:37 AM

HP ProLiant DL320 Specifications

General

Product Line	ProLiant
CPU Type	Intel Xeon
Storage	Up to 4 LFF (3.5") or 8 SFF (2.5") SAS/SATA/SSD drives (depending on model and configuration)
Network	Embedded 1GbE
Power Supply	Single or Redundant Power Supplies (depending on model and configuration)
Form Factor	1U
Server Type	Rack Server
