14. Remove all Phillips head screws that secure the system board to the chassis (1).
15. Slide the system board 0.7 mm (0.25 in) toward the front of the chassis, ensuring that the
board unseats from all the alignment keys, and lift the board up and away from the
keys (2).

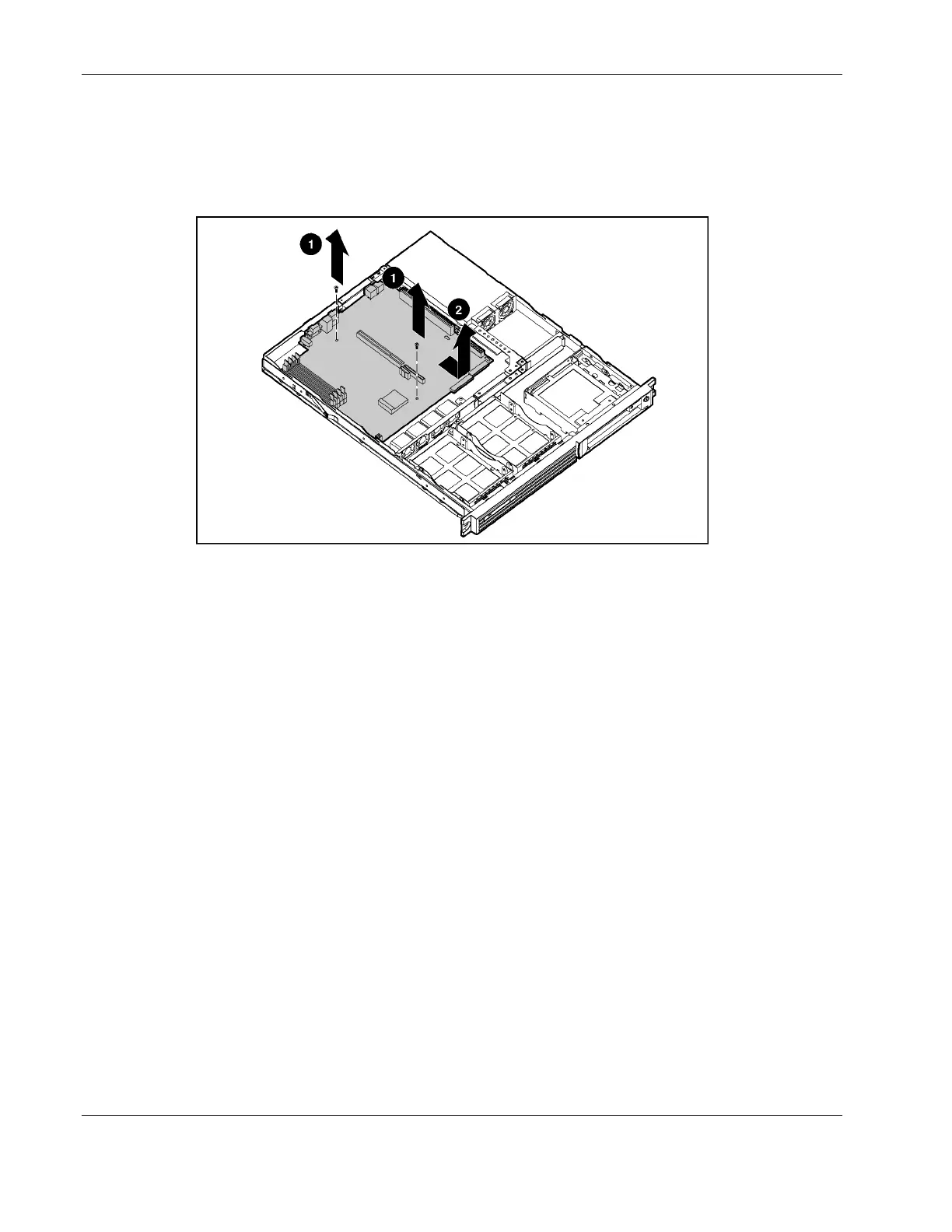

Figure 2-36: Removing the system board
Reverse steps 1 through 14 to replace the system board.
