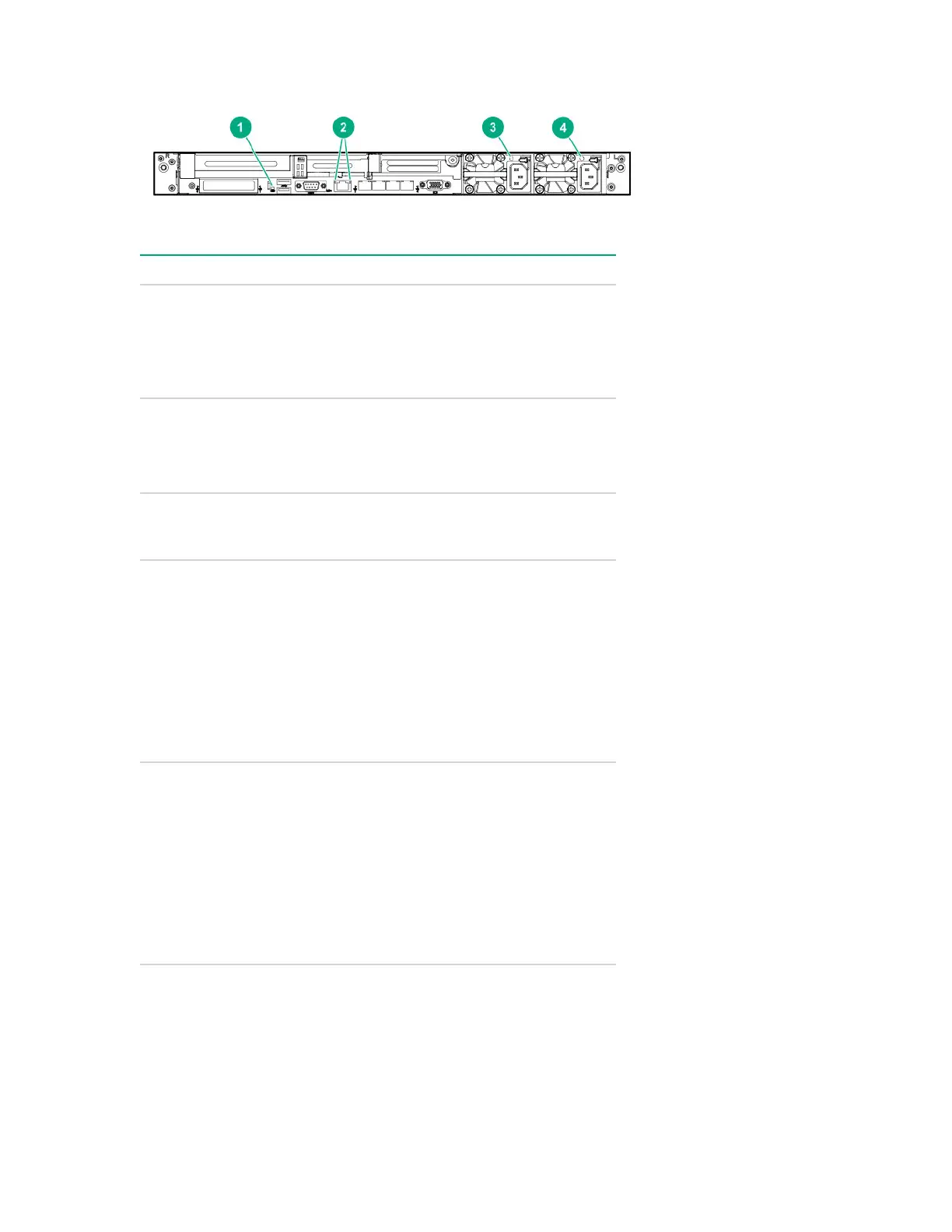

Rear panel LEDs
Item Description Status
1 UID LED
Solid blue = Identification is activated.
Flashing blue = System is being
managed remotely.
Off = Identification is deactivated.
2R
iLO 5/standard
NIC activity LED
Solid green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
2L
iLO 5/standard
NIC link LED
Solid green = Link exists.
Off = No link exists.
3 Power supply 2
LED
Solid green = Normal
Off = One or more of the following
conditions exists:
• AC power unavailable
• Power supply failed
• Power supply in standby mode
• Power supply exceeded current
limit.
4 Power supply 1
LED
Solid green = Normal
Off = One or more of the following
conditions exists:
• AC power unavailable
• Power supply failed
• Power supply in standby mode
• Power supply exceeded current
limit.
Rear panel LEDs 15
