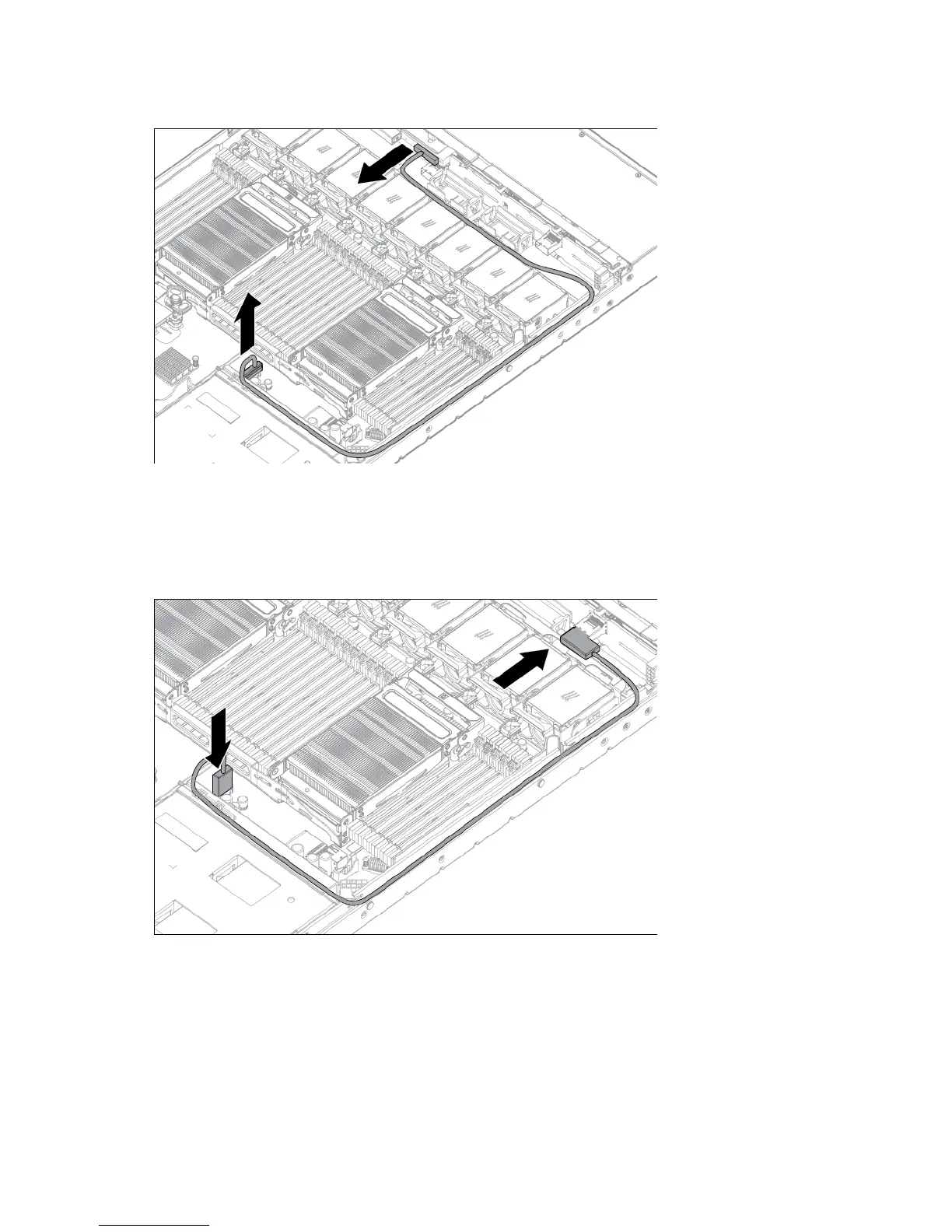

Disconnect the SATA cable from the optical drive and the SATA connector on the system board. The
optical bay is disabled with the chipset SATA cable option.
7. Connect the chipset SATA cable:
a. Connect the chipset SATA cable connector to the chipset SATA controller port on the system board.
The chipset SATA connector on the SATA cable is narrower than the chipset SATA controller port
header on the system board.
b. Connect the remaining chipset SATA cable connector to the SATA header on the hard drive cage.
