Hardware options installation 28

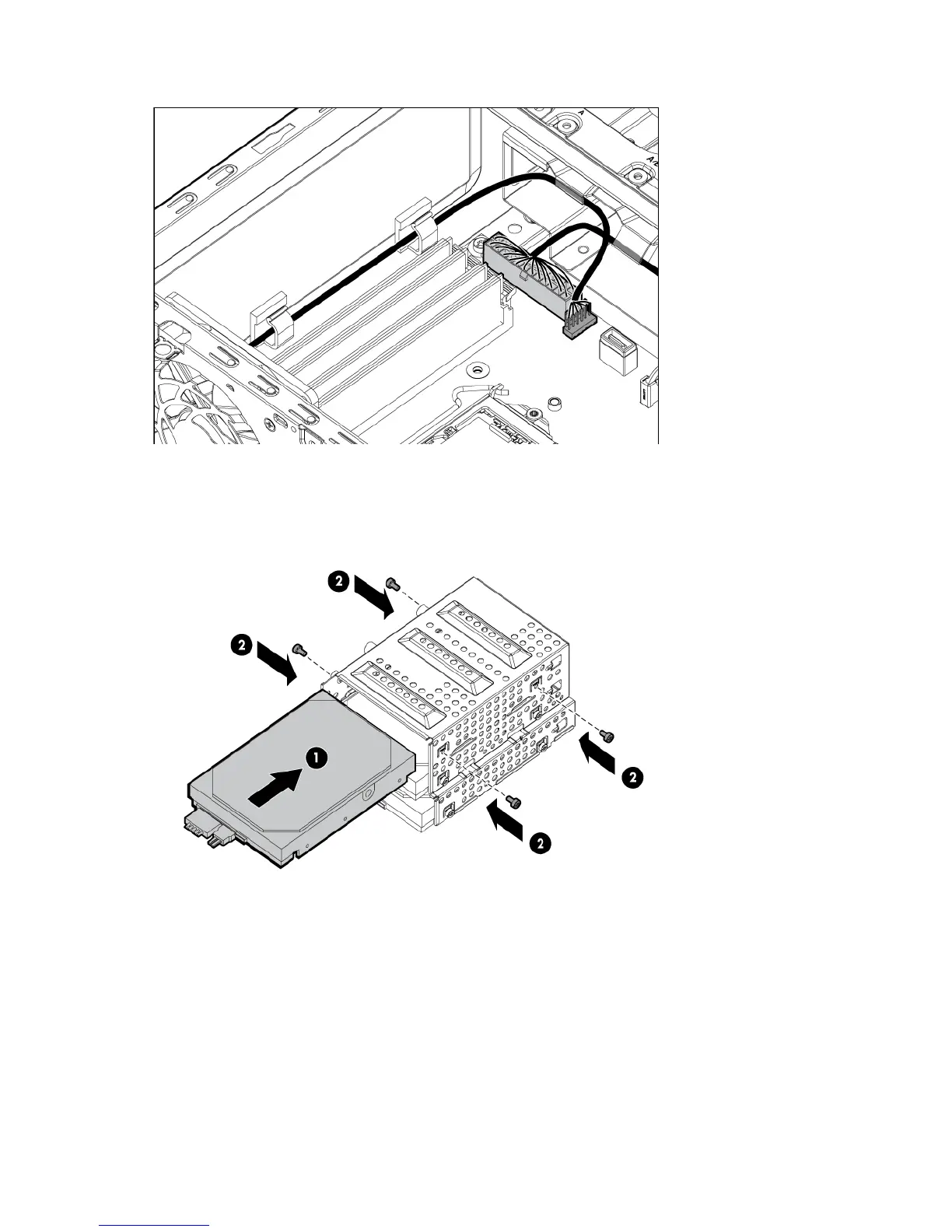

To avoid drive carrier interference, tuck the two cables underneath the flanges of the drive bracket.
15. Insert the LFF drives into the drive carrier, the open end of the drive carrier should be facing down and
the drive stickers should be facing up, and then secure each drive by tightening two T-15 6-32 screws
on either side of the drive carrier for each drive installed.
Be sure to install each drive with the sticker facing up and the connectors facing toward the rear.
16. Install the drive carrier into the server:
a. Place the drive carrier, with the open end of the drive carrier facing up, on the drive bracket.
