Hardware options installation 29
b.

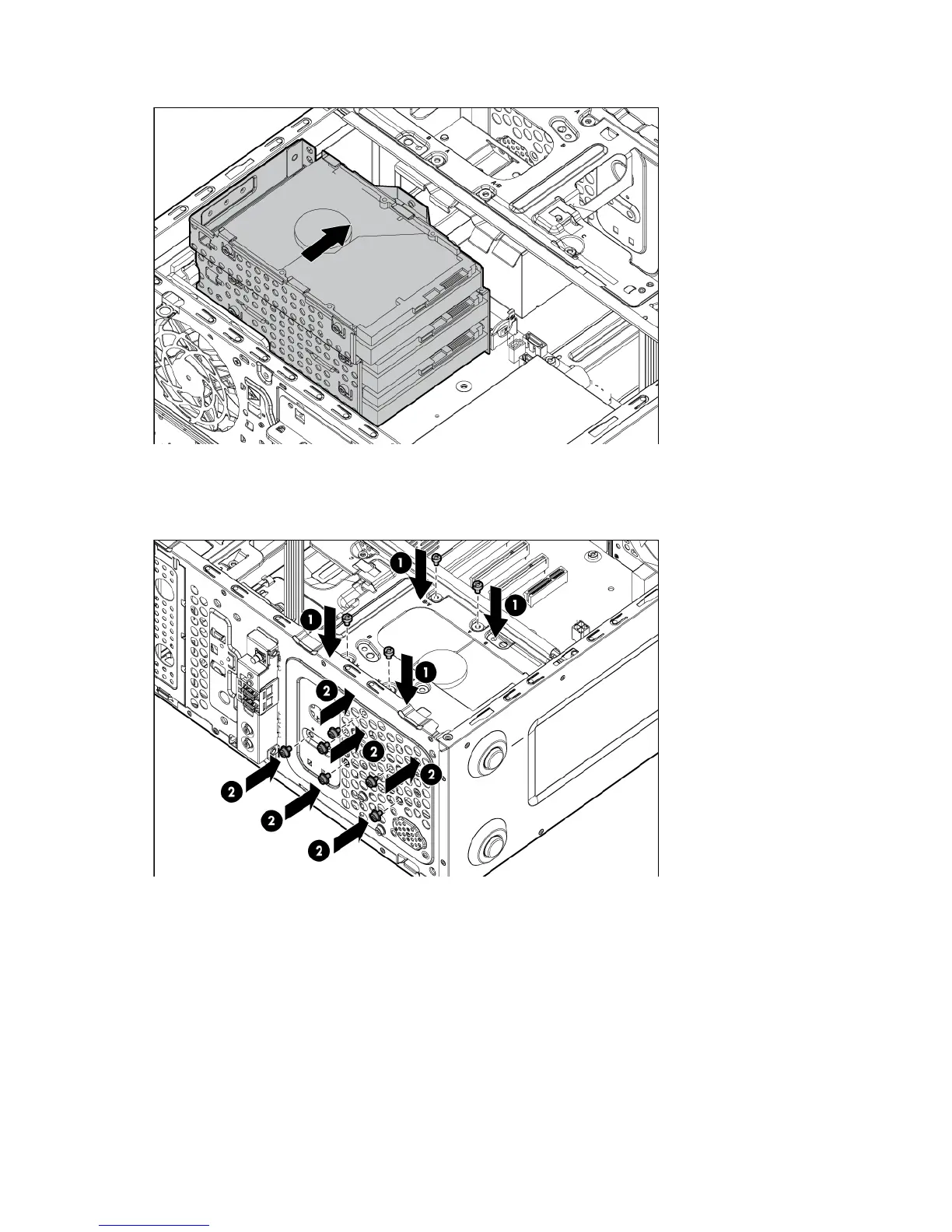

Place the drive carrier flush against the wall of the chassis, and then slide it fully to the chassis front.
17. Secure the drive carrier installed in the server:
a. Insert and completely tighten the four T-15 6- 32 screws on the top of the drive cage.
b. Insert and completely tighten the six shoulder screws on the chassis.
18. Connect the Mini-SAS/power cable assembly:
a. Starting from the bottom, connect the HDD1, HDD2, and HDD3 connectors in sequence.
