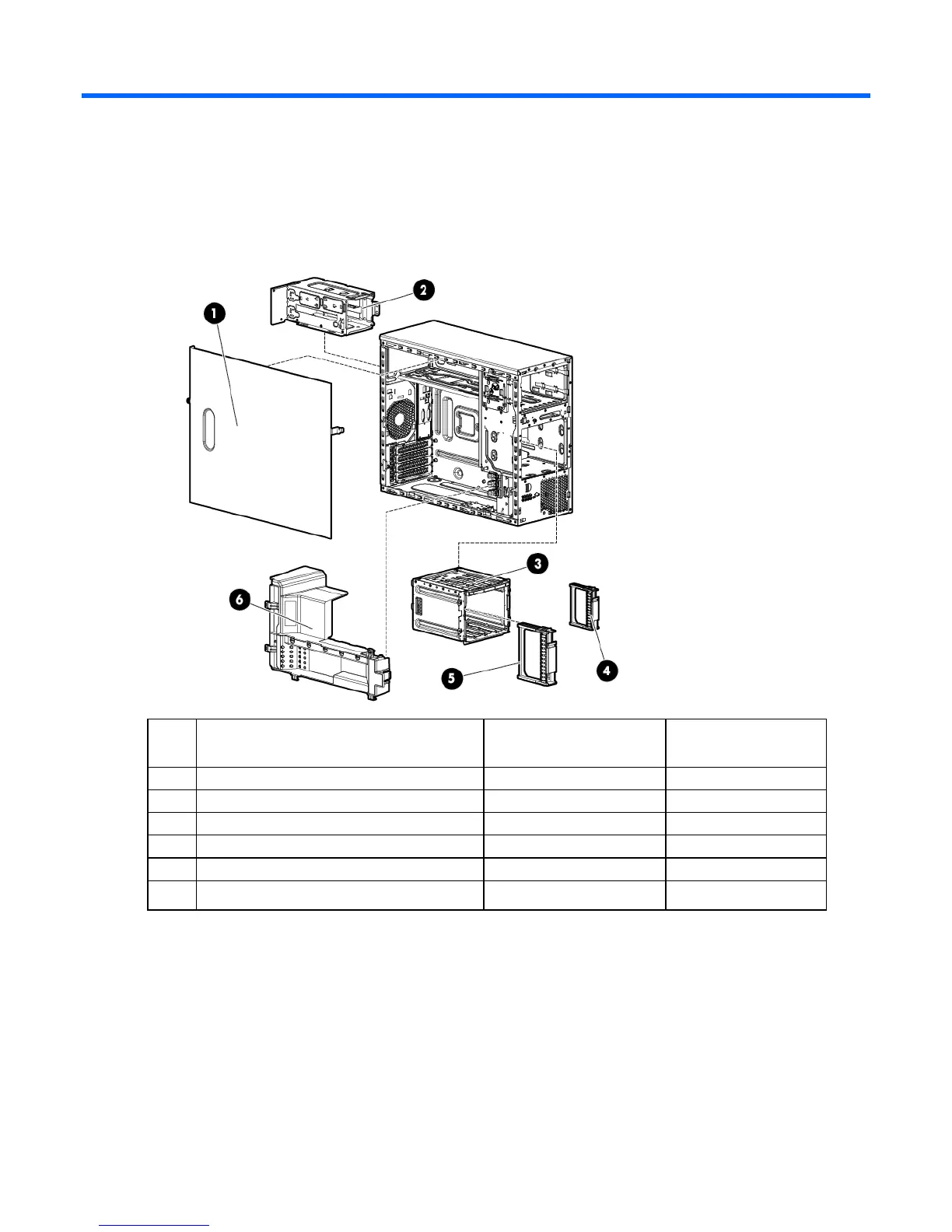

Illustrated parts catalog 16
Illustrated parts catalog
Mechanical components
Item Description Spare part number
Customer self repair
(on page
)
1
Access panel 686751-001 Mandatory
1
RPS cage 686665-001 Mandatory
1
3
Four-bay LFF drive cage 686745-001 Mandatory
1
4
SFF drive blank 670033-001 Mandatory
1
5
LFF drive blank 675039-001 Mandatory
1
6
Air baffle 686752-001 Mandatory
1
1
Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be
charged for the travel and labor costs of this service.
2
Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If,
however, you require that HP replace them for you, there may or may not be additional charges, depending on the type
of warranty service designated for your product.
3
No—Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty, HP requires that
an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.
1
Mandatory: Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de
remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.
