HP ProLiant ML310e Gen - System Board Components

Component identification 70

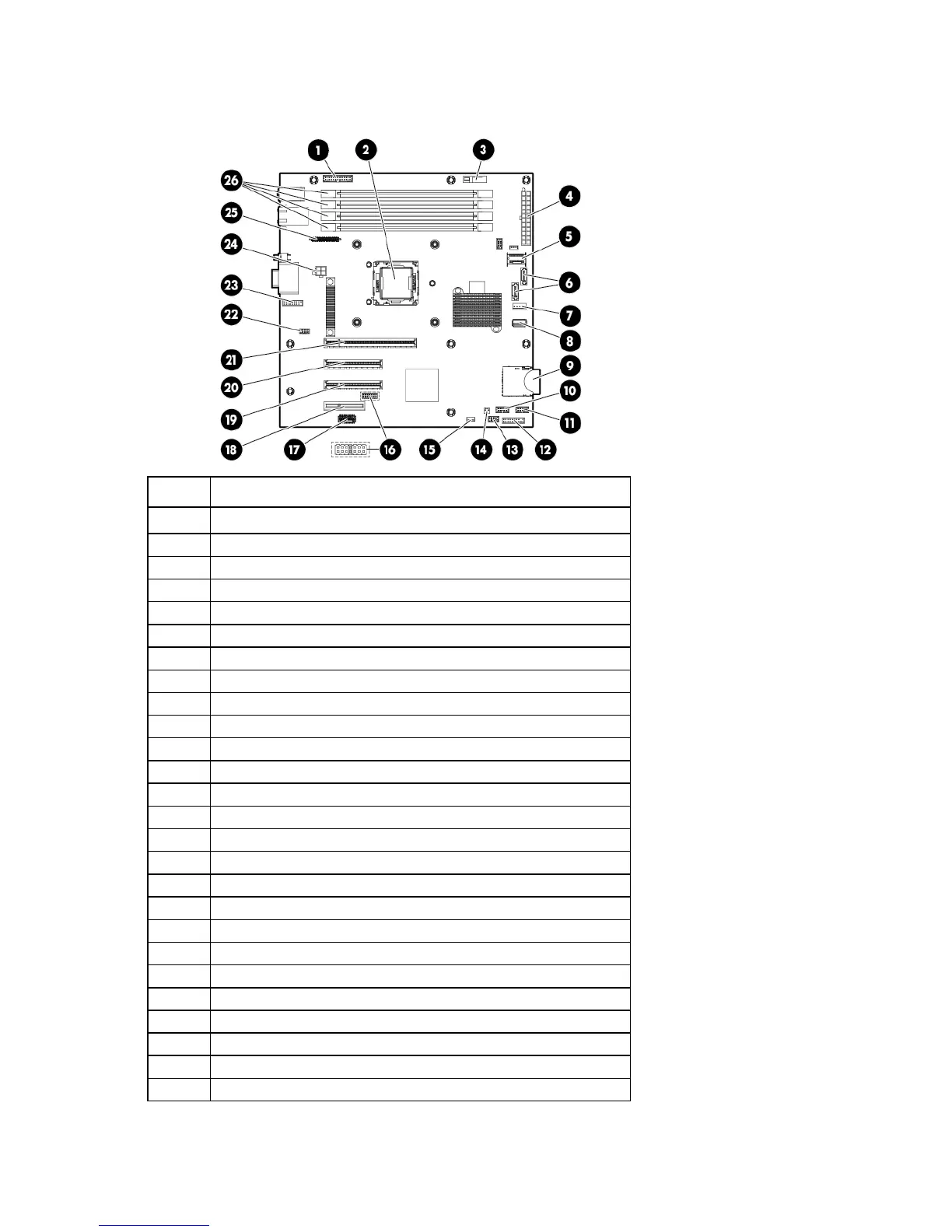

System board components
Item Description
1
RPS connector
2
Processor socket
3
System battery
4
24-pin power supply connector
5
Mini-SAS connector
6
SATA connectors
7
Internal USB cable connector
8
Internal USB connector
9
SD card slot
10
Front USB connector 2
11
Front USB connector 1
12
Front panel LED connector
13
Fan connector 2
14
Reserved
15
Ambient thermal sensor connector
16
NMI header
17
System maintenance switch
18
Slot 1 PCIe x4 (1)*
19
Slot 2 PCIe x8 (4, 1)*
20
Slot 3 PCIe x8 (8, 4, 1)*
21
Slot 4 PCIe x16 (8, 4, 1)*
22
Fan connector 1
23
TPM connector
24
4-pin power supply connector
25
Dedicated iLO module connector
26
DIMM slots
