HP ProLiant ML310e Gen User Manual

Removal and replacement procedures 33
5.
Disconnect the SATA and power cables from the optical drive.
6. Remove the optical drive.

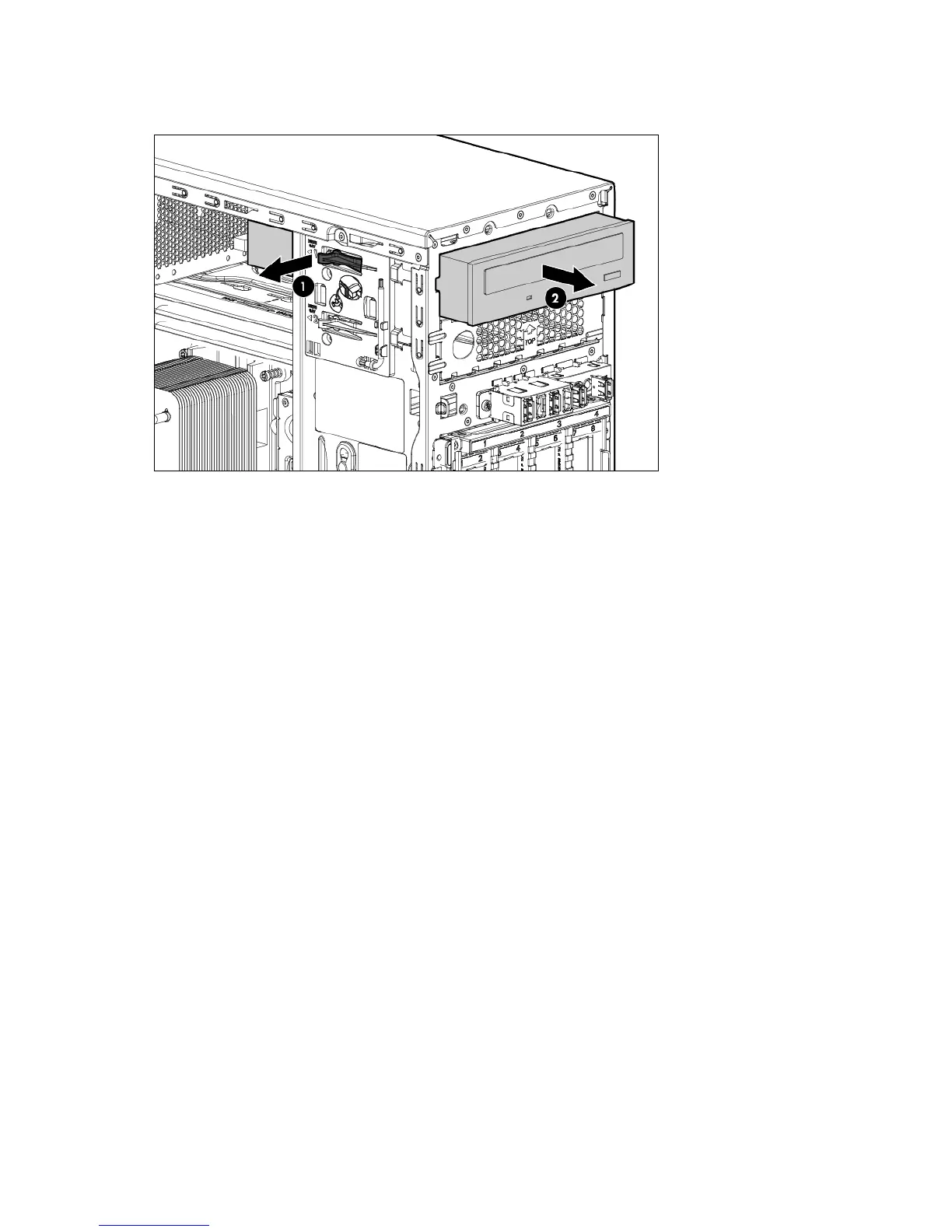

To replace the component, reverse the removal procedure.
Drive cage
To remove the component:
1. Power down the server (on page 26).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the tower bezel (on page 26).
4. Remove the access panel ("Access panel" on page 31).
5. If the drives are connected to a storage controller card, remove the air baffle.
6. Remove all installed drives ("Storage drive" on page 28).
7. Disconnect the drive cage cables:
a. Disconnect the Mini-SAS cable from the system board or from the storage controller option.
b. Disconnect the drive power cable from the 10-pin power supply connector.
8. Remove the drive cage:

HP ProLiant ML310e Gen Specifications

General

Product Type	Server
Form Factor	Tower
Processor Sockets	1
Memory Slots	4
RAID Support	HP Dynamic Smart Array B120i Controller
Memory	Up to 32GB
Network Controller	HP 1Gb 332i Ethernet Adapter 2 Ports per controller
Operating System Support	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware
