Removal and replacement procedures 38
7.

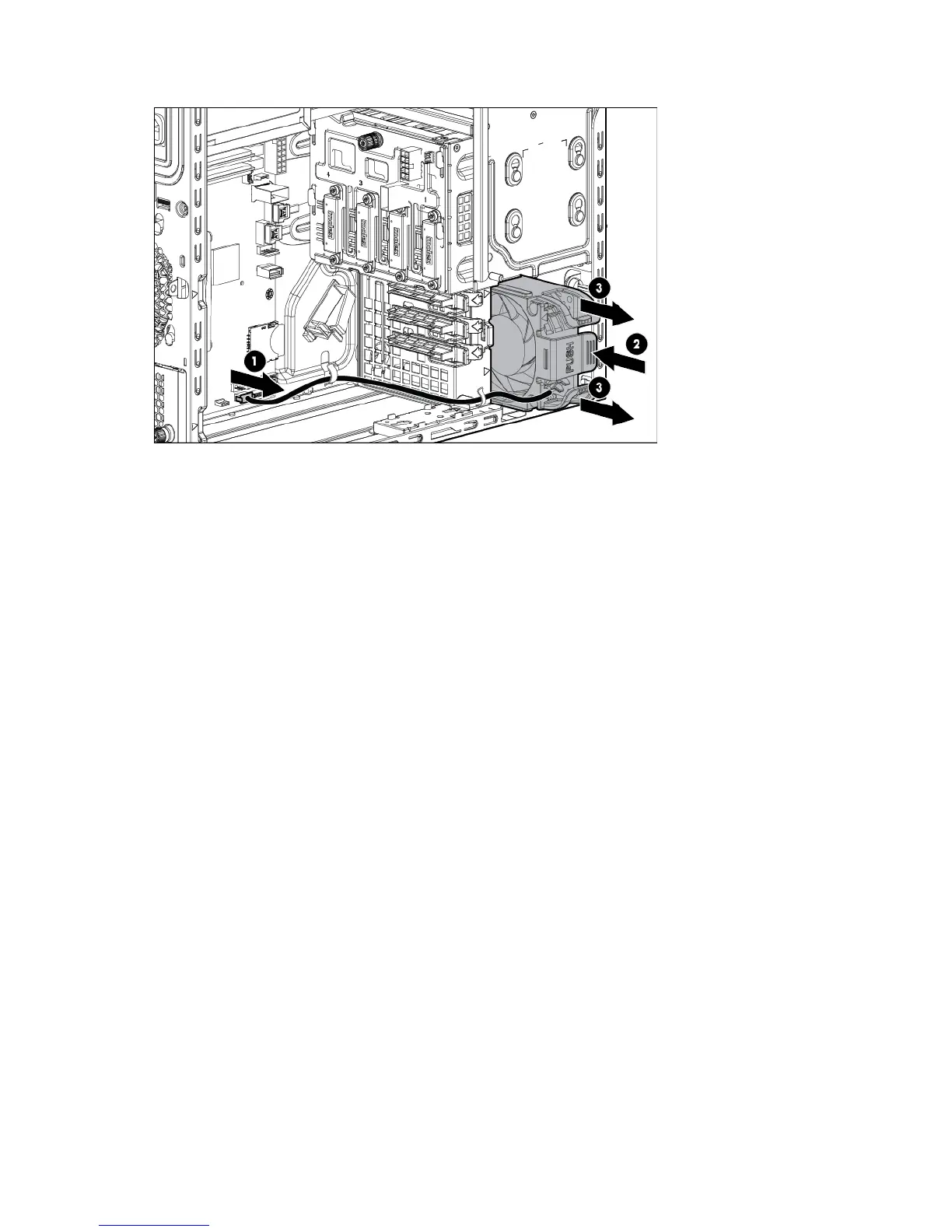

Press the release latch, and then remove the fan module.
To replace the component, reverse the removal procedure.
DIMMs
General DIMM slot population guidelines
The server has four memory slots.
The server supports two channels with two DIMM slots per channel.
o Memory channel 1 consists of the two DIMMs that are closest to the processor.
o Memory channel 2 consists of the two DIMMs that are farthest from the processor.
White DIMM slot indicates the first slot of a channel (2-A, 4-B).
Memory speed support depends on the type of processor installed. See the technical specification of the
installed processor for more information.
The server supports up to 1600 MT/s ECC UDIMMs.
The server supports up to 32 GB (4x8 GB) UDIMMs.
The server does not support:
o RDIMMs
o Non-ECC UDIMMs
When installing DIMMs:
o Populate the DIMM slots in this sequence: 2-A, 4-B, 1-C, 3-D.
o Use HP-qualified UDIMMs.
Removing a DIMM
1. Power down the server (on page 26).
