HP ProLiant ML370 User Manual

Removal and Replacement Procedures
3. Disconnect all external peripheral devices from the server.
4. Remove the cable management arm from the server.

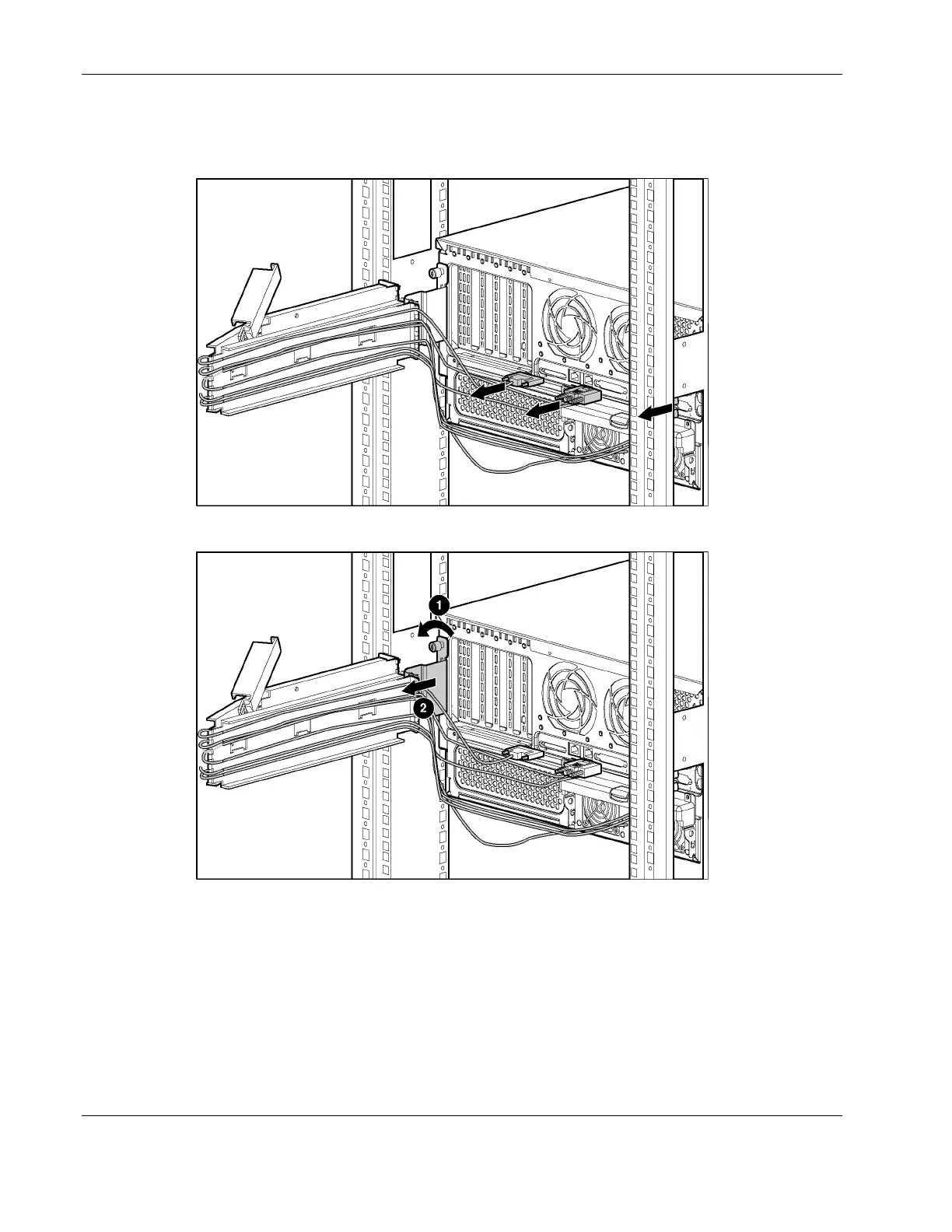

Figure 2-7: Disconnecting all cables from the server
Figure 2-8: Removing the cable management arm from the server
NOTE: You may leave the cables attached to the cable management arm.
5. Loosen the thumbscrews that secure the front bezel to the front of the rack.
6. Slide the server out of the rack.
7. Place the server on a sturdy, level surface.
2-10 HP ProLiant ML370 Generation 3 Server Maintenance and Service Guide

HP ProLiant ML370 Specifications

General

Form Factor	Tower
Server Type	Tower Server
Chipset	Intel C600 Series Chipset
Maximum Memory	384 GB
Network Controller	HP Ethernet 1Gb 2-port 330i Adapter or HP FlexibleLOM
Drive Bays	Up to 24 SFF or 18 LFF
Management	HP iLO (Integrated Lights-Out)
Storage Controller	Smart Array
