HP ProLiant ML370 User Manual

Removal and Replacement Procedures
System Board
IMPORTANT: You must re-enter the server serial number through RBSU if you replace the system
board. Refer to “Re-entering the Server Serial Number” in this chapter.
To remove the system board:
1. Power down and remove power from the server. Refer to “Powering Down the Server” in
this chapter.
2. Unlock and open the front bezel (tower server only).
IMPORTANT: You must unlock the tower bezel before removing the access panel. Refer to “Front
Bezel” in this chapter.
3. Remove the access panel. Refer to “Access Panel” in this chapter.
4. Remove the redundant fan cage, if installed. Refer to “Redundant Fan Cage” in this
chapter.
5. Remove all expansion boards. Refer to “PCI-X Expansion Boards” in this chapter.
6. Remove the processor air baffle. Refer to “Processor Air Baffle” in this chapter.
7. Remove the center wall. Refer to “Center Wall” in this chapter.
8. Disconnect all cables.
9. Loosen the two thumbscrews securing the system board to the chassis (1).
10. Slide the system board toward the front of the chassis to release it from the six retaining
guides (2).
11. Lift the system board out of the chassis and tilt it to one side to clear the cable guide (3).

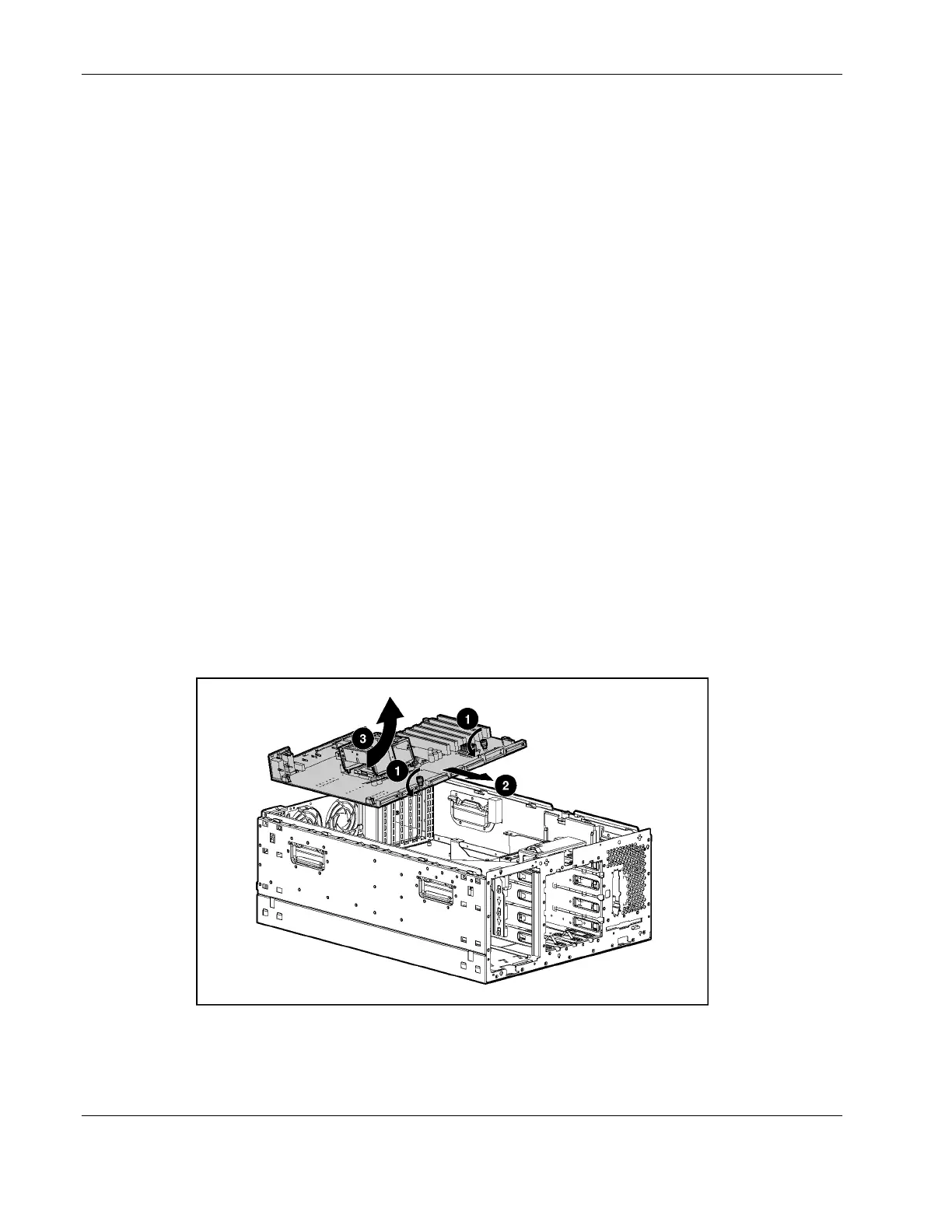

Figure 2-52: Removing the system board
2-56 HP ProLiant ML370 Generation 3 Server Maintenance and Service Guide
