LED Indicators and Switches
RJ-45 Connector LEDs
The RJ-45 connector on the server rear panel has two LEDs. Figure 4-3 and Table 4-4
identify the LED locations and status.

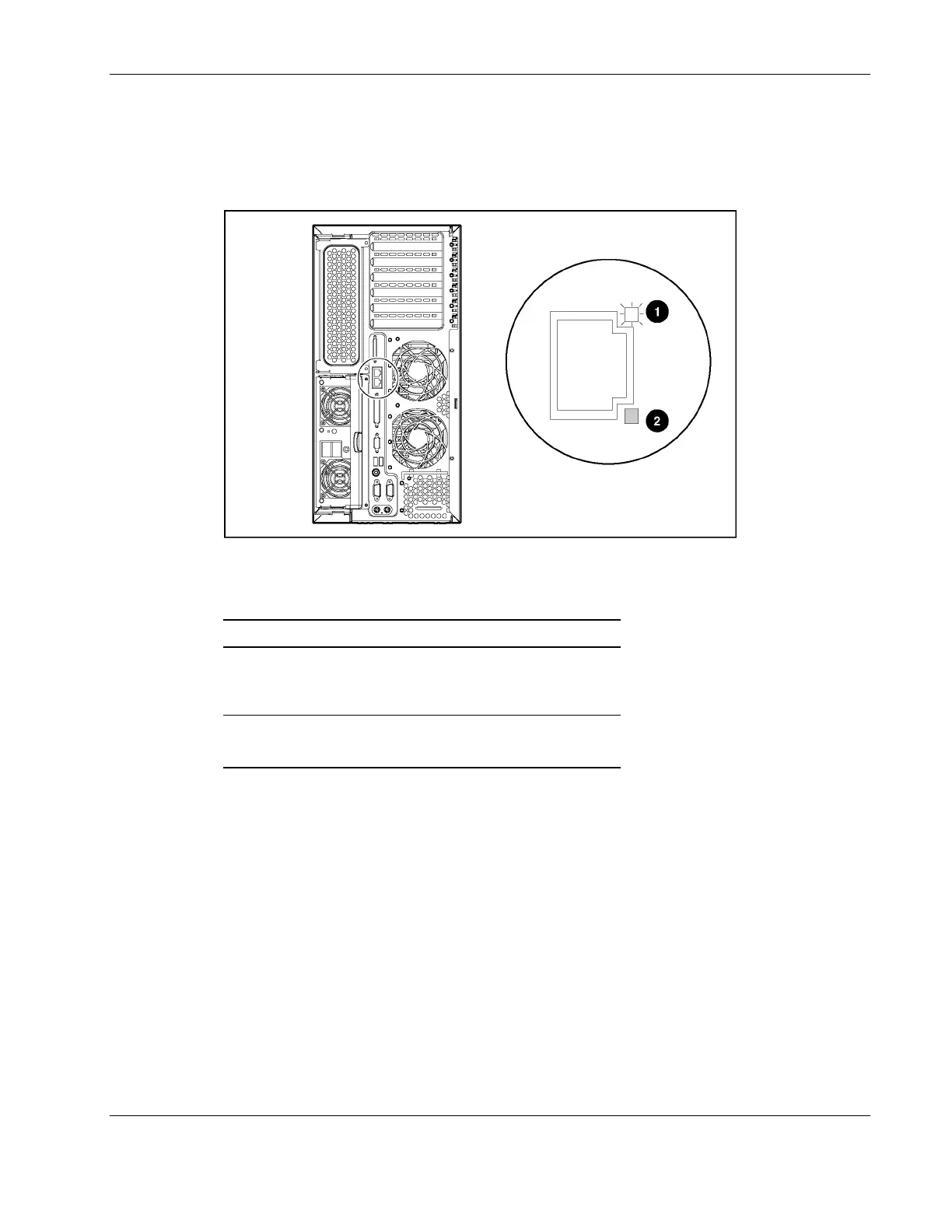

Figure 4-3: RJ-45 connector LEDs
Table 4-4: RJ-45 Connector LEDs
Item Description Status
1 Activity On or flashing = Network
activity
Off = No network activity
2 Link On = Linked to network
Off = No network link
HP ProLiant ML370 Generation 3 Server Maintenance and Service Guide 4-5
