HP Spectre x360 Maintenance And Service Guide

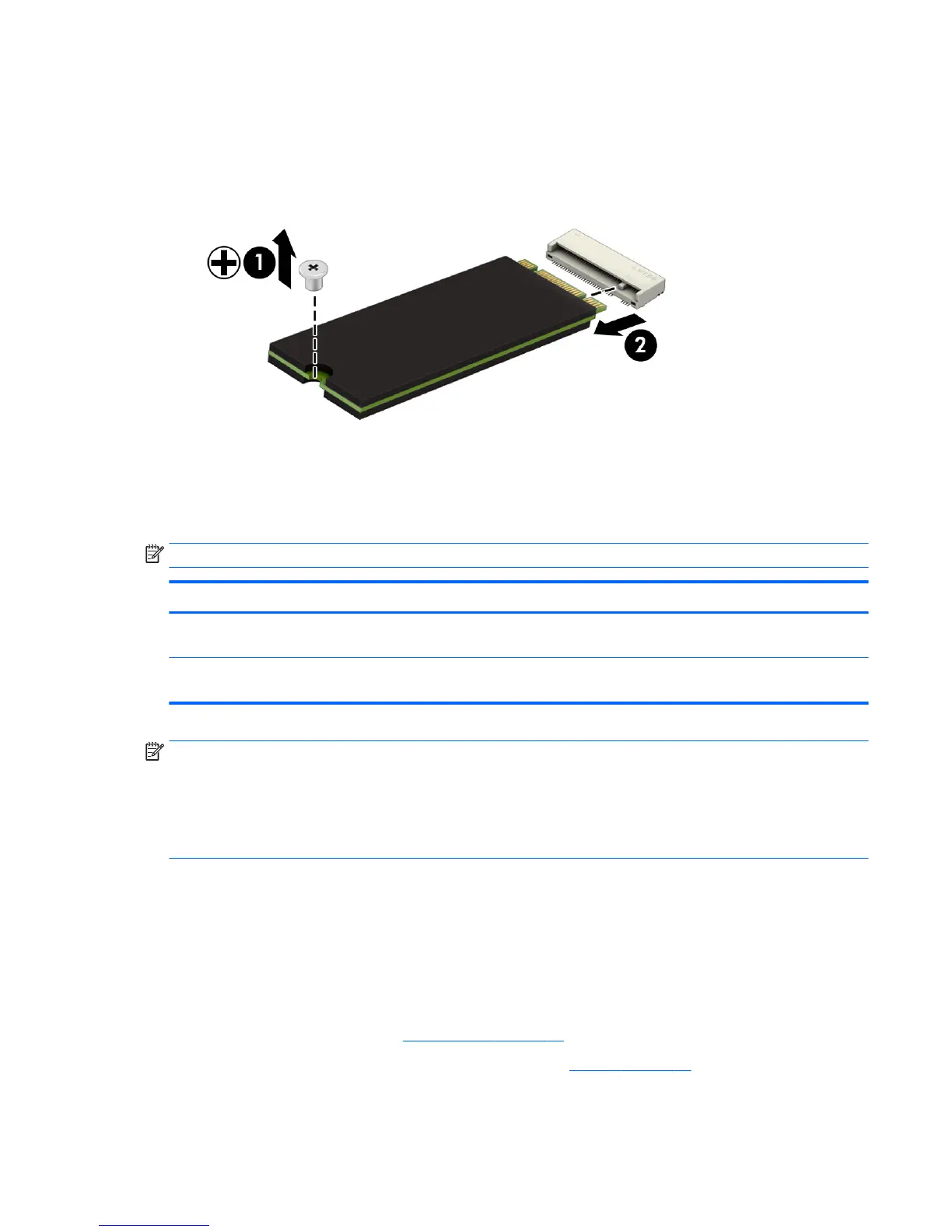

2. Remove the solid-state drive (2) by pulling the drive away from the slot at an angle.
Reverse this procedure to install the solid-state drive.
Fan
NOTE: The fan spare part kit includes the fan cable.
Description Spare part number
For use only on computer models equipped with an Intel Core i-7 6550U, Intel Core i-7 6500U, or Intel
Core i-5 6200U processor
828818-001
For use only on computer models equipped with an Intel Core i-7 5600U, Intel Core i-7 5500U, Intel Core
i-5 5300U, or Intel Core i-5 5200U processor
801493-001
NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side
of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature
sensor and is designed to turn on automatically when high temperature conditions exist. These conditions
are affected by high external temperatures, system power consumption, power management/battery
conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced
through the ventilation grill located on the left side of the computer.
Before removing the fan, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation,
turn the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 28).
5. Disconnect the battery cable from the system board (see Battery on page 29).
Remove the fan:
Fan 33
