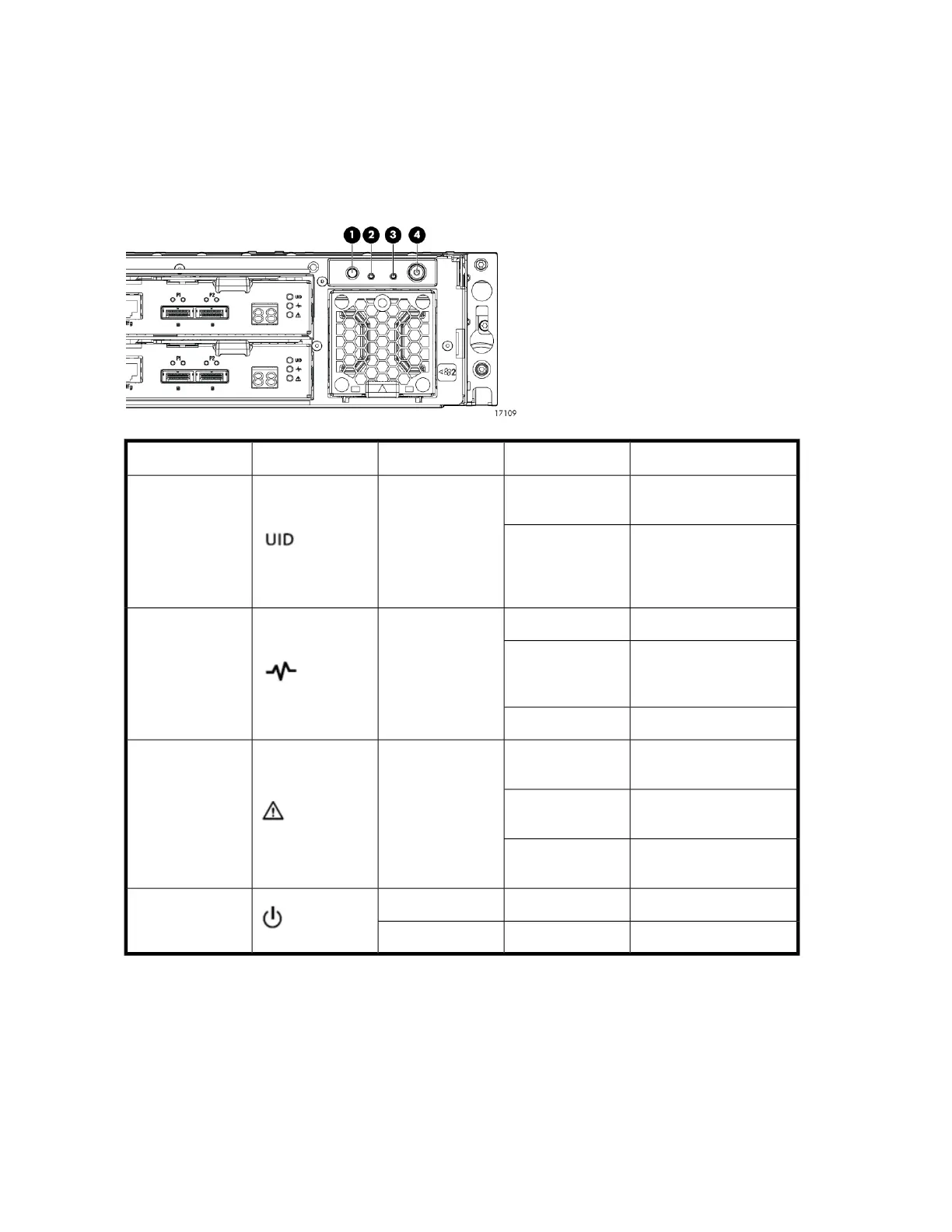

Rear power and UID module
The rear power and UID module includes status LEDs, a unit identification (UID) button, and the power
on/standby button.
Rear power and UID module LEDs
DescriptionStatusLED colorLED iconLED
Not being identified or no
power
Off
Blue1. UID
Unit is being identified,
either from the UID button
being pushed or from the
management utility
On
No powerOff
Green2. Health
Enclosure is starting up
and not ready, perform-
ing POST
Blinking
Normal, power is onSolid
Normal, no fault condi-
tions
Off
Amber3. Fault
A fault of lesser import-
ance
Blinking
A fault of greater import-
ance
Solid
Power is onSolidGreen
4. On/Standby
Standby powerSolidAmber
Hardware18
