HP StorageWorks P9000 - Mainframe to Open (Mto) Conversion Diagram; Open to Mainframe (Otm) Conversion Diagram

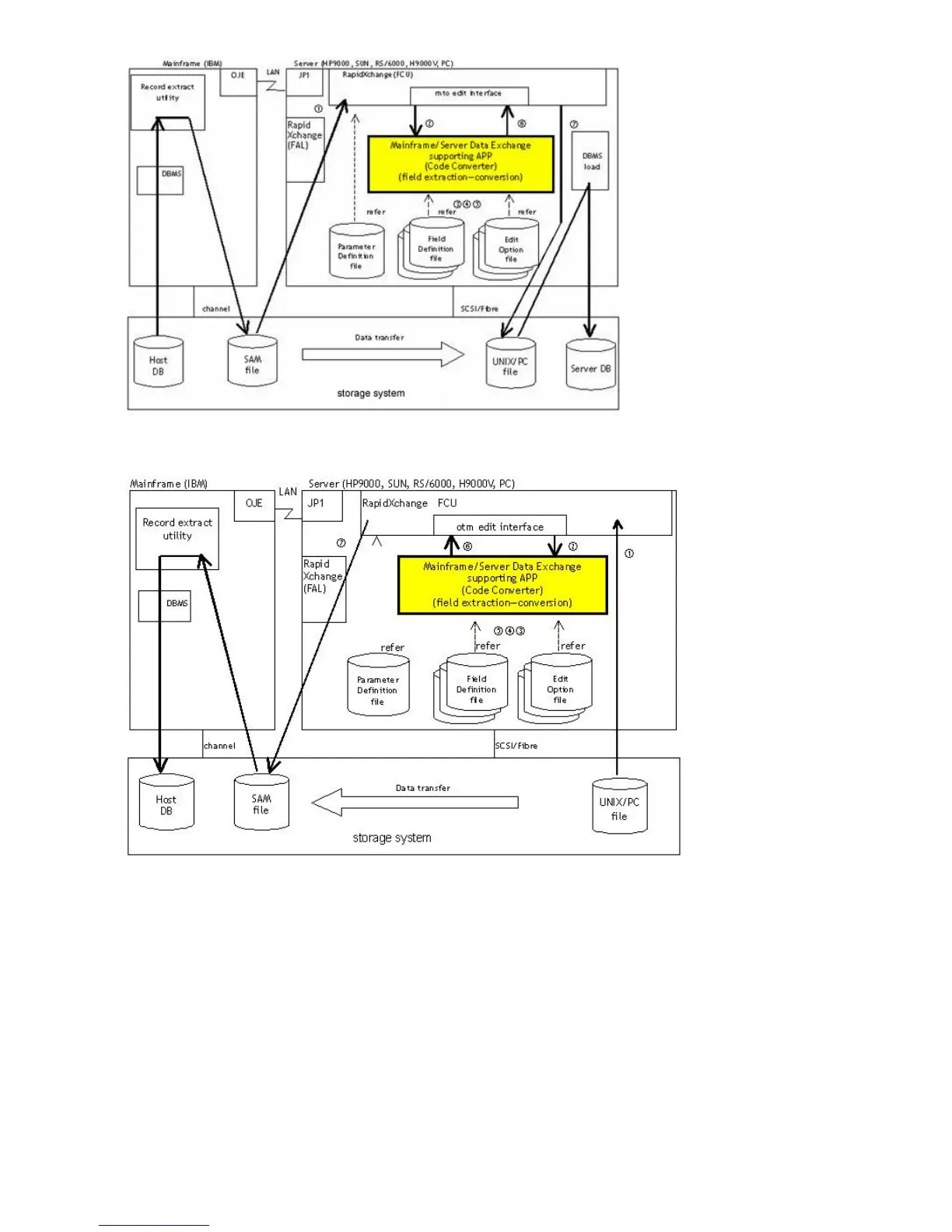

Figure 1 Mainframe to Open (mto) Conversion Diagram
.
Figure 2 O pen to Mainframe (otm) Conversion Diagram
.
Note 1 : JP1 and OJE (open job entry) are HP-provided package products. They are required for
communication between the Mainframe and the open systems servers to handle data transfer.
Note 2 : A field represents a part of a record or can be the whole record, and is the basic processing
unit of the Data Exchange Code Converter.
The following procedure represents the basic flow of the Code Converter program:
1. The File Conversion Utility reads the data of a Mainframe FXmto volume.
Overview of HP StorageWorks Data Exchange Software Code Converter16
