Tape Drive Installation and Replacement
311U Rackmount Tape Enclosure Reference Guide
13. Replace the top cover by placing in on top of the enclosure 1, engaging all the
pins into slots in both sides of the enclosure as well as the central pin in the
latch. Push the latch down flush with the top 2 and turn the lock clockwise 3
to prevent accidental opening. See Figure 21.

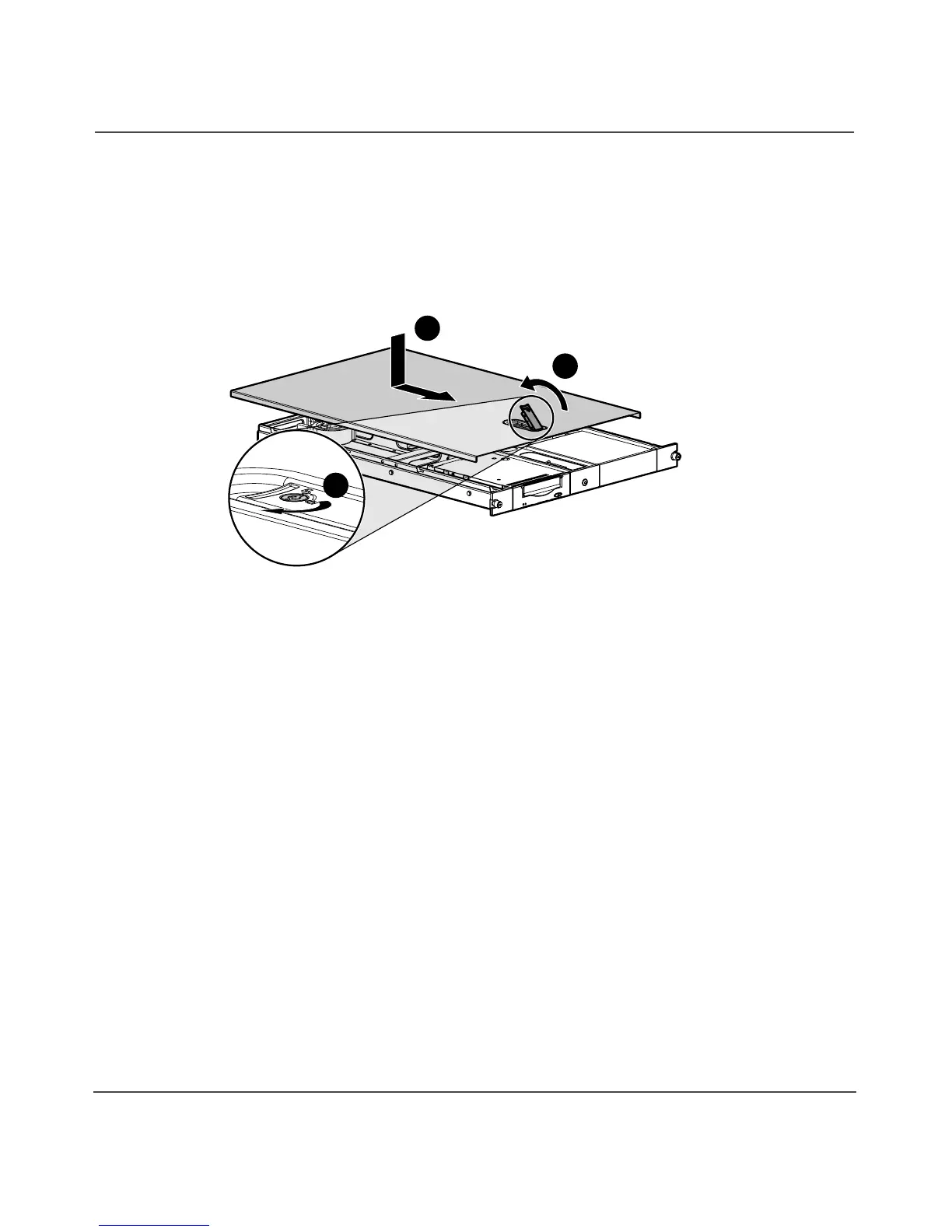

Figure 21: Replacing the top
14. Slide the enclosure fully into the rack and tighten the two front panel
thumbscrews.
15. Set the SCSI ID if you are using the remote SCSI ID switch on the back of the
enclosure. Refer to “Setting SCSI IDs” on page 25.
16. If your configuration requires an additional SCSI cable, connect it between
the second SCSI connector on the back of the enclosure and the SCSI
controller.
15128
3
2
1
