Tape Drive Installation and Replacement
30 1U Rackmount Tape Enclosure Reference Guide
Caution: To prevent possible data errors, when there is only one drive on a
SCSI bus that drive must be connected to the SCSI port closest to the terminator.
12. Attach the power cable 1, SCSI ID cable 2 (if used), and SCSI data cable 3
to the back of the drive. Refer to Figure 20 and “Internal cable configurations”
on page 33 to identify the SCSI cable for your configuration.

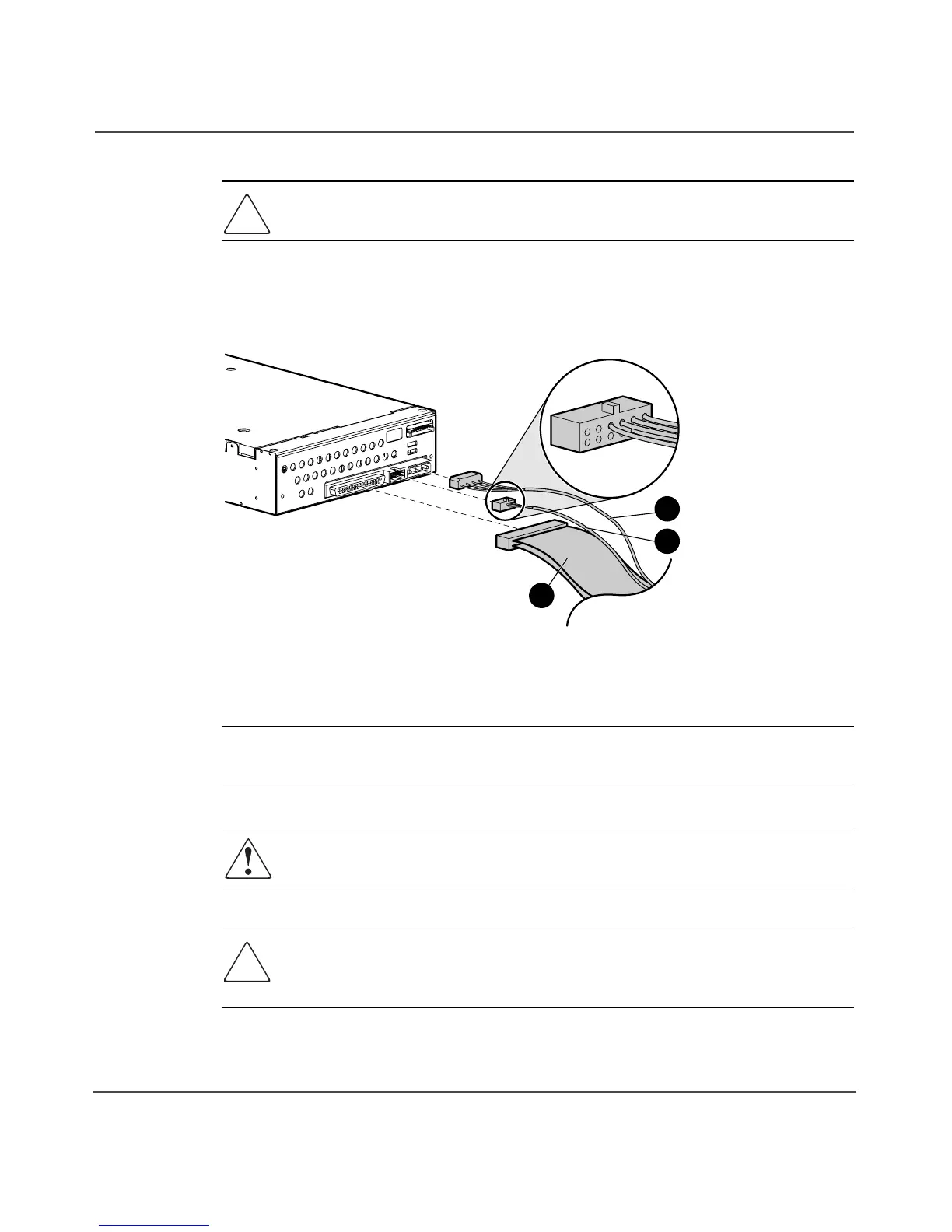

Figure 20: Attach cables to the drive
Note: Fold excess SCSI cable length and secure with the clips provided in the tape
enclosure.
WARNING: To avoid possible injury from rotating fan blades do not attempt
to operate the tape enclosure with the top cover removed.
Caution: When reinstalling the top cover, be sure the latch is fully engaged
and is flush with the cover to avoid interference with devices installed above
the tape enclosure.
