Tape Drive Installation and Replacement
291U Rackmount Tape Enclosure Reference Guide
9. If you are not using the remote SCSI ID switch on the tape enclosure, set the
SCSI ID with jumpers on the back of the new drive. Refer to the
documentation for your tape drive for information about setting the SCSI ID.
10. If you are using the remote SCSI ID switch on the tape enclosure, remove all
the jumpers from the back of the new drive. The switch will connect to the
pins normally programmed by the jumpers.
Caution: To prevent possible damage to the tape enclosure or to cause the
rack to become unstable, you must provide support under the enclosure when
installing a drive.
11. Position the keyhole slots in the left and right mounting brackets over the
mounting posts attached to the tape enclosure. While supporting the enclosure
from the bottom, press down 1 so that the drive is flat against the bottom of
the tape enclosure. Slide the drive 2 toward the back of the enclosure until the
spring-loaded pin snaps into place 3, locking the drive into the enclosure. See
Figure 19.
Note: Make sure that all of the posts are engaged into their respective slots in the drive
mounting brackets.

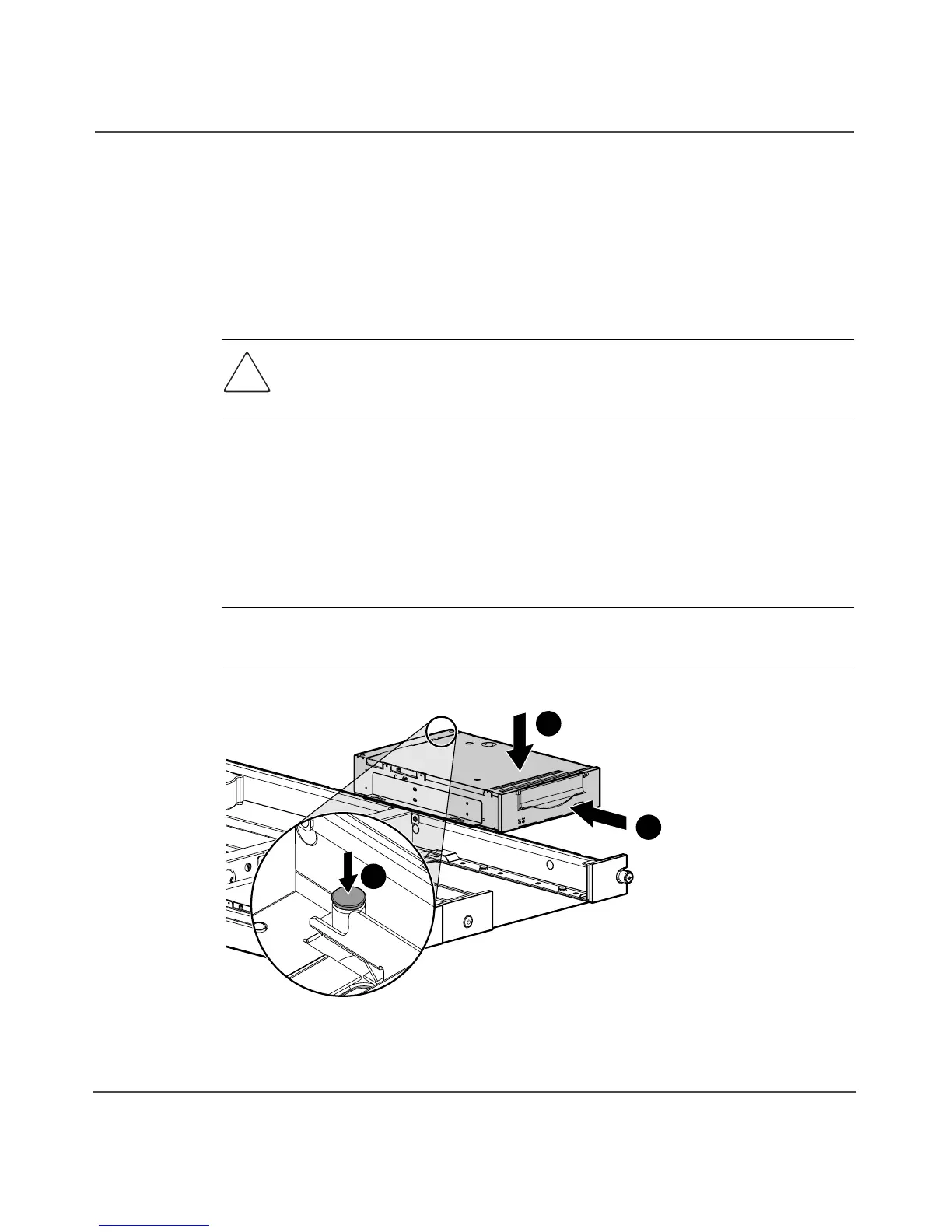

Figure 19: Installing the tape drive
15106
2
1
3
