Rack Installation
20 1U Rackmount Tape Enclosure Reference Guide
Installation in racks with 10-32 threaded holes
For installation in racks with 10-32 threaded holes in the vertical mounting bars
the pins supplied on the rails must be removed. The rails will be attached with
user-supplied 10-32 x.375 screws.
1. Remove the pins and threaded plates from both ends of each outer rack rail.
See Figure 9. These pieces will not be used.

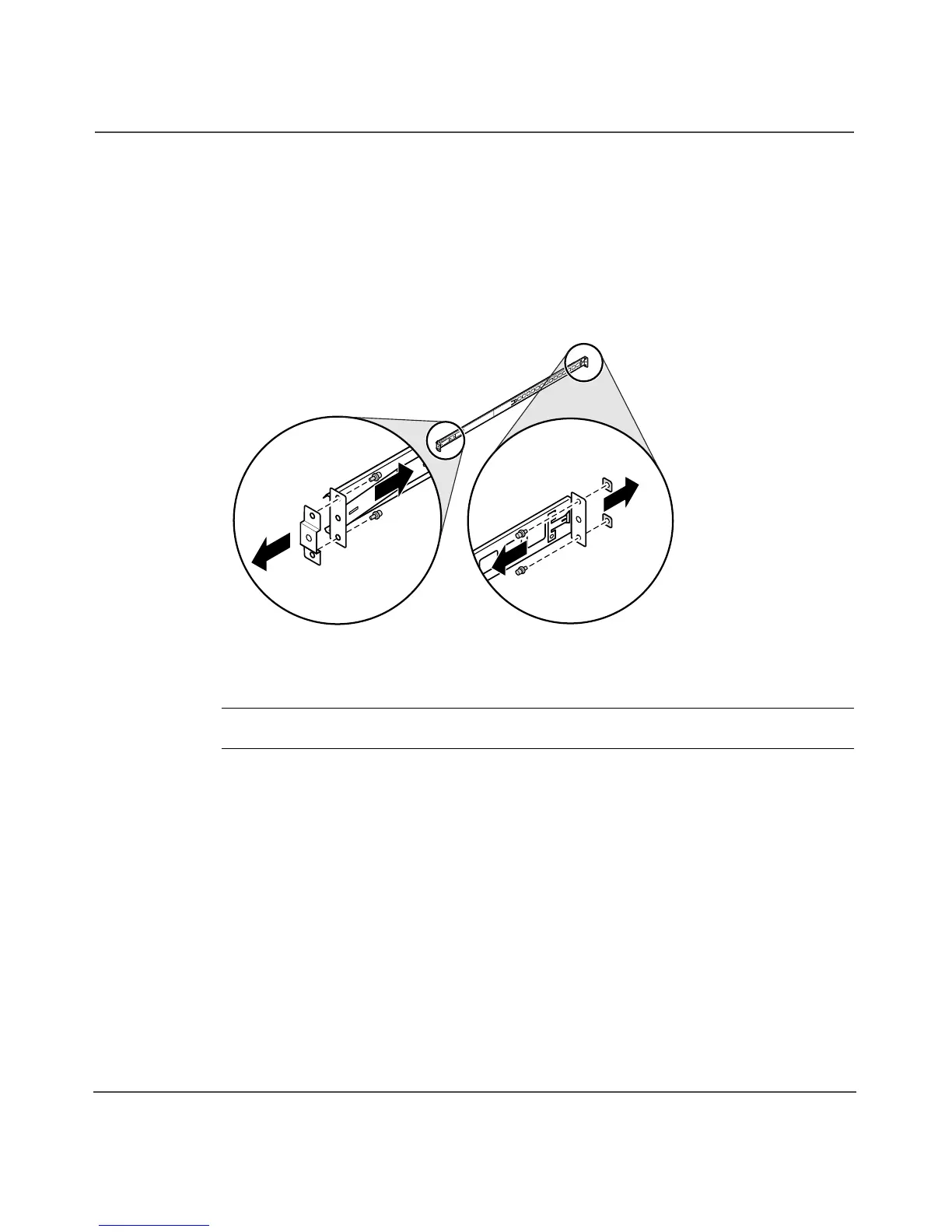

Figure 9: Remove the pins and mounting hardware from the rack rail
Note: The ends of the rack rails are marked FRONT and REAR for proper orientation.
2. Attach the front mounting plate of each outer rail to the rack using four 10-32
screws in the previously marked holes in the front vertical mounting bars of
the rack. See Figure 10.
