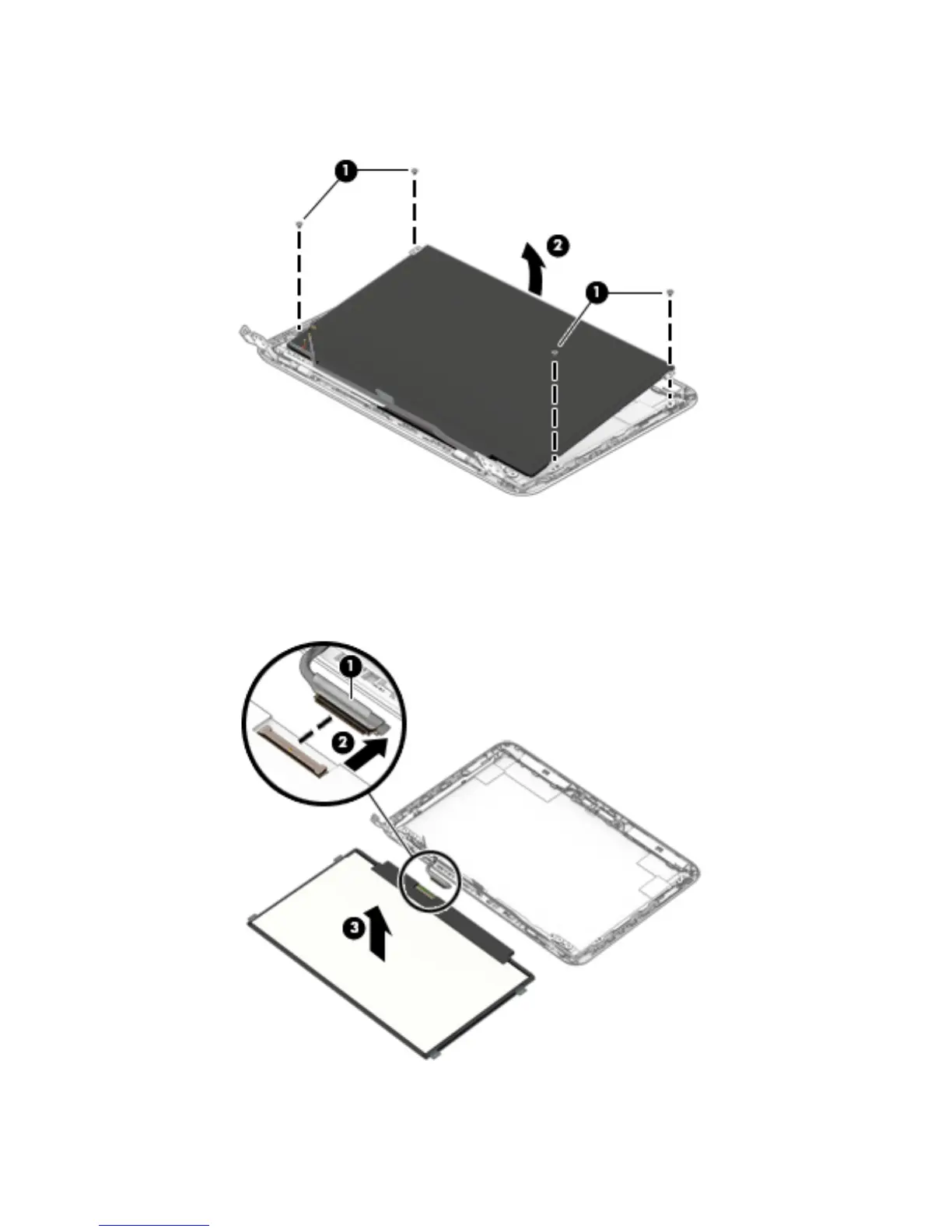

c. Lift the top edge of the display panel (2), and then swing the panel up and forward until the panel
rests upside down in front of the display enclosure.
d. Release the adhesive strip (1) that secures the display panel cable connector to the display panel.
e. Disconnect the display panel cable (2) from the display panel.
f. Remove the display panel (3).
The display panel is available using spare part number 792896-001.
9. If it is necessary to replace the display panel cable:
Component replacement procedures 41
