a. Remove the display panel.
b. Disconnect the display panel cable from the webcam/microphone module.

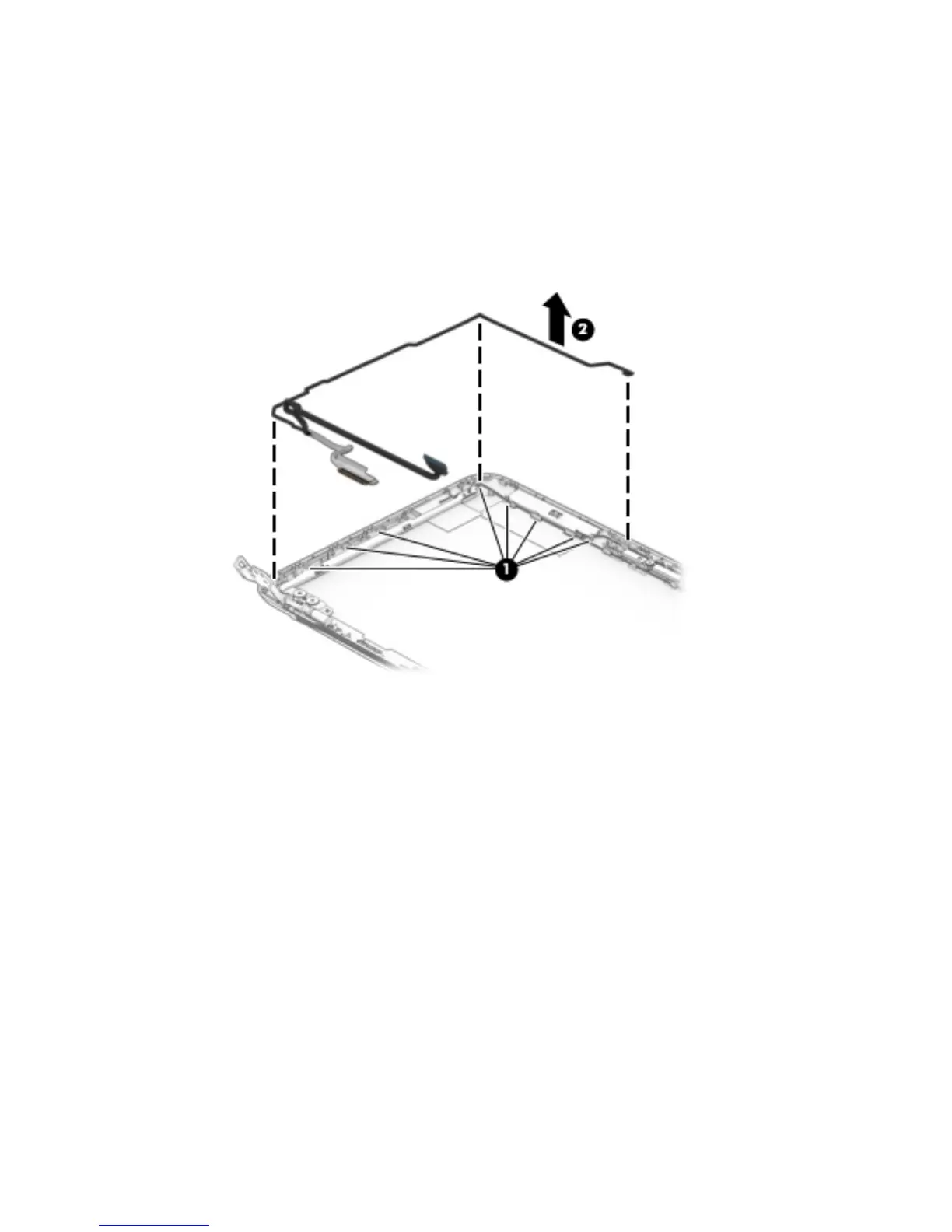

c. Release the display panel cable from the retention clips (1) and routing channel built into the top
edge and left side of the display enclosure.
d. Remove the display panel cable (2).
The display panel cable is available using spare part number 792892-001 and includes the
webcam/microphone module cable.
10. If it is necessary to replace the display hinges:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the following screws that secure the display hinges to the display enclosure:
(1) Four Phillips PM2.4×3.6 broad head screws
(2) Two Phillips PM1.9×3.3 screws
42 Chapter 5 Removal and replacement procedures
