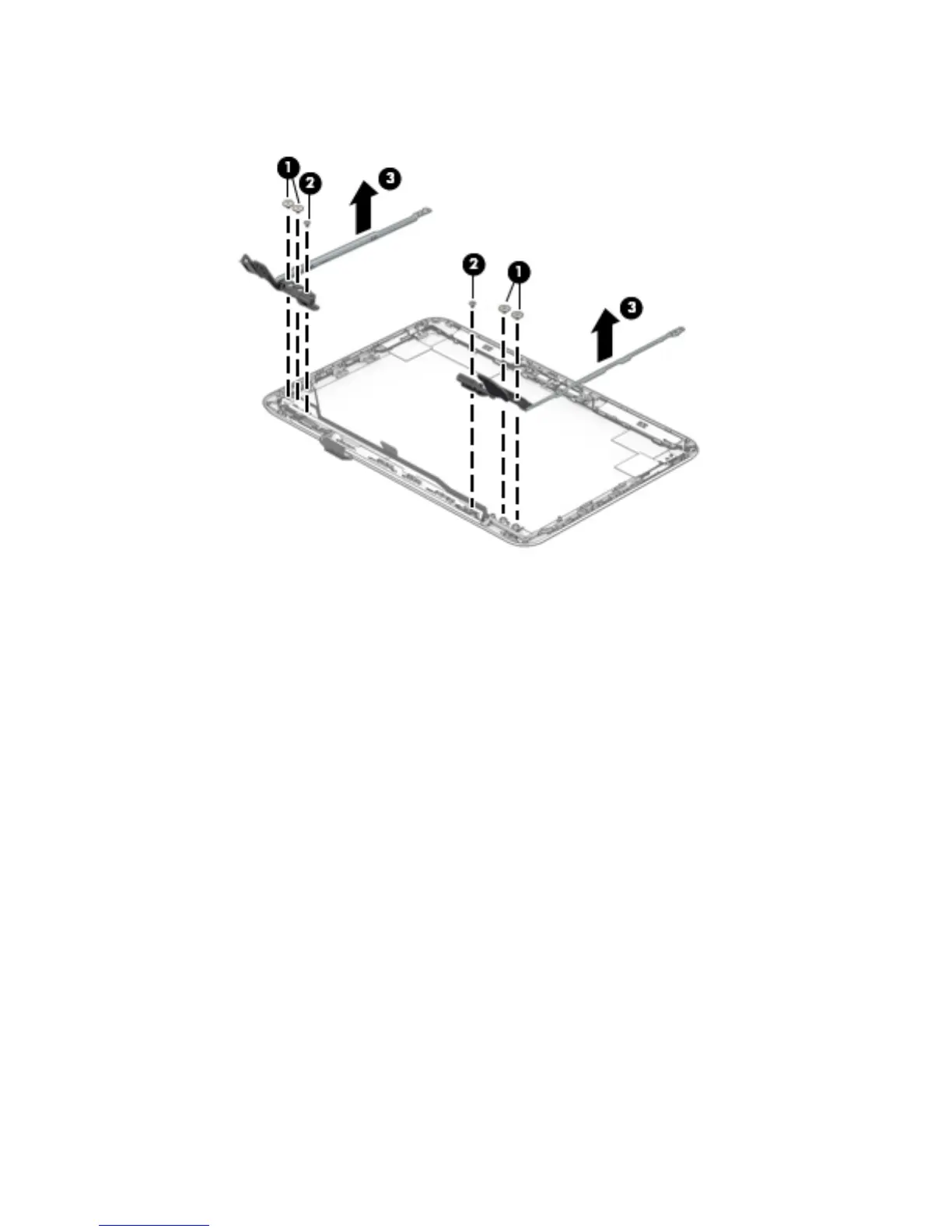

d. Remove the display hinges (3).
The display hinges are included in the Display Hinge Kit, spare part number 792893-001.
11. If it is necessary to replace the WLAN antenna:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the display hinges.
d. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN antenna
transceivers are attached to the display enclosure with double-sided adhesive.)
Component replacement procedures 43
