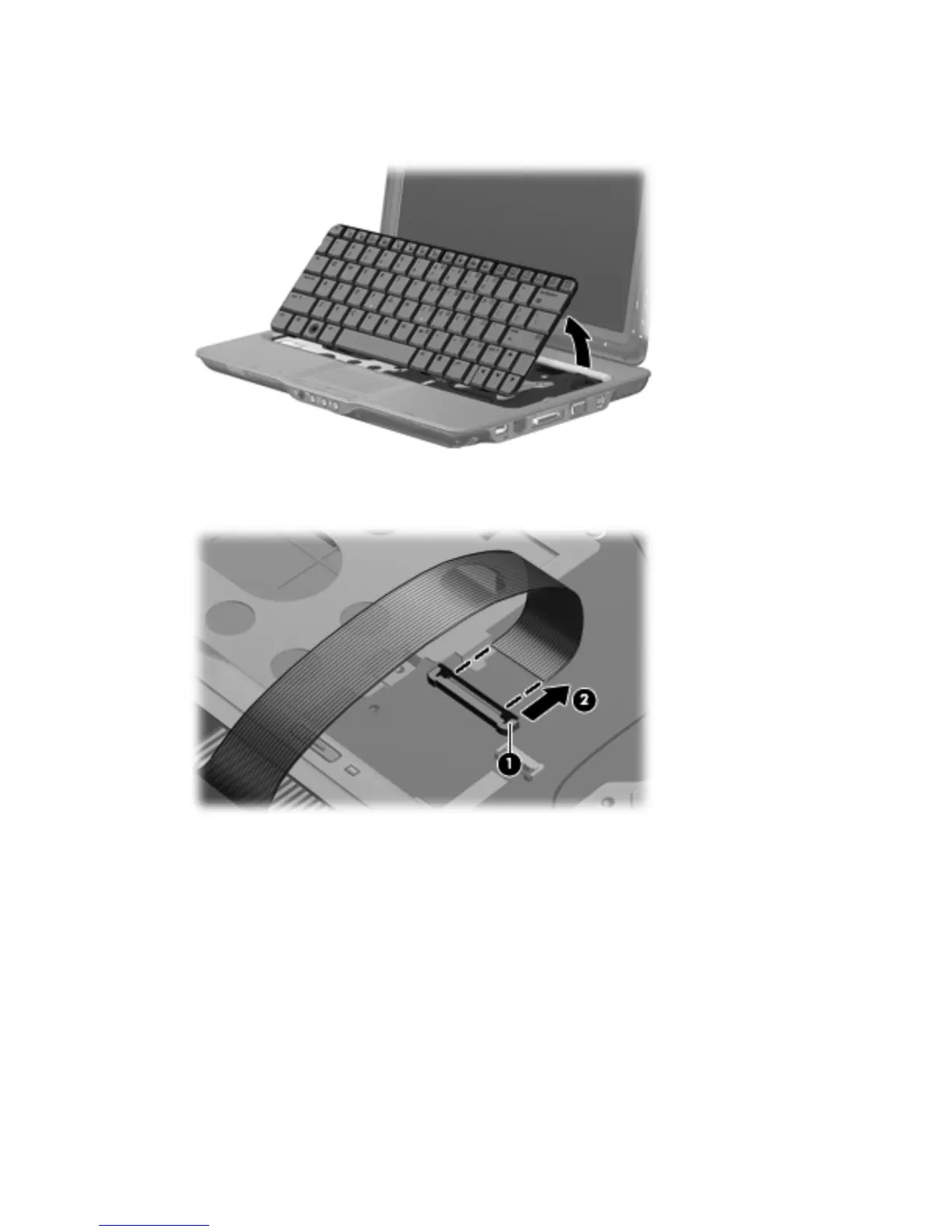

4. Open the computer.

5. Lift the rear edge of the keyboard and swing it toward you until it rests on the palm rest.

6. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and

disconnect the keyboard cable (2).

7. Remove the keyboard.

Reverse this procedure to install the keyboard.

50 Chapter 4 Removal and replacement procedures

Questions and Answers:

Need help?

Do you have a question about the HP TOUCHSMART TX2 and is the answer not in the manual?

General

RAM	4 GB DDR2
Resolution	1280 x 800
Graphics	ATI Radeon HD 3200 Graphics
Operating System	Windows Vista Home Premium
Battery	6-cell Lithium-Ion Battery
Wireless	802.11a/b/g/n
Bluetooth	Bluetooth 2.0
Storage	320GB HDD
Display	12.1" WXGA High-Definition HP BrightView Display
Optical Drive	LightScribe SuperMulti 8X DVD±RW with Double Layer Support
Webcam	HP Webcam
