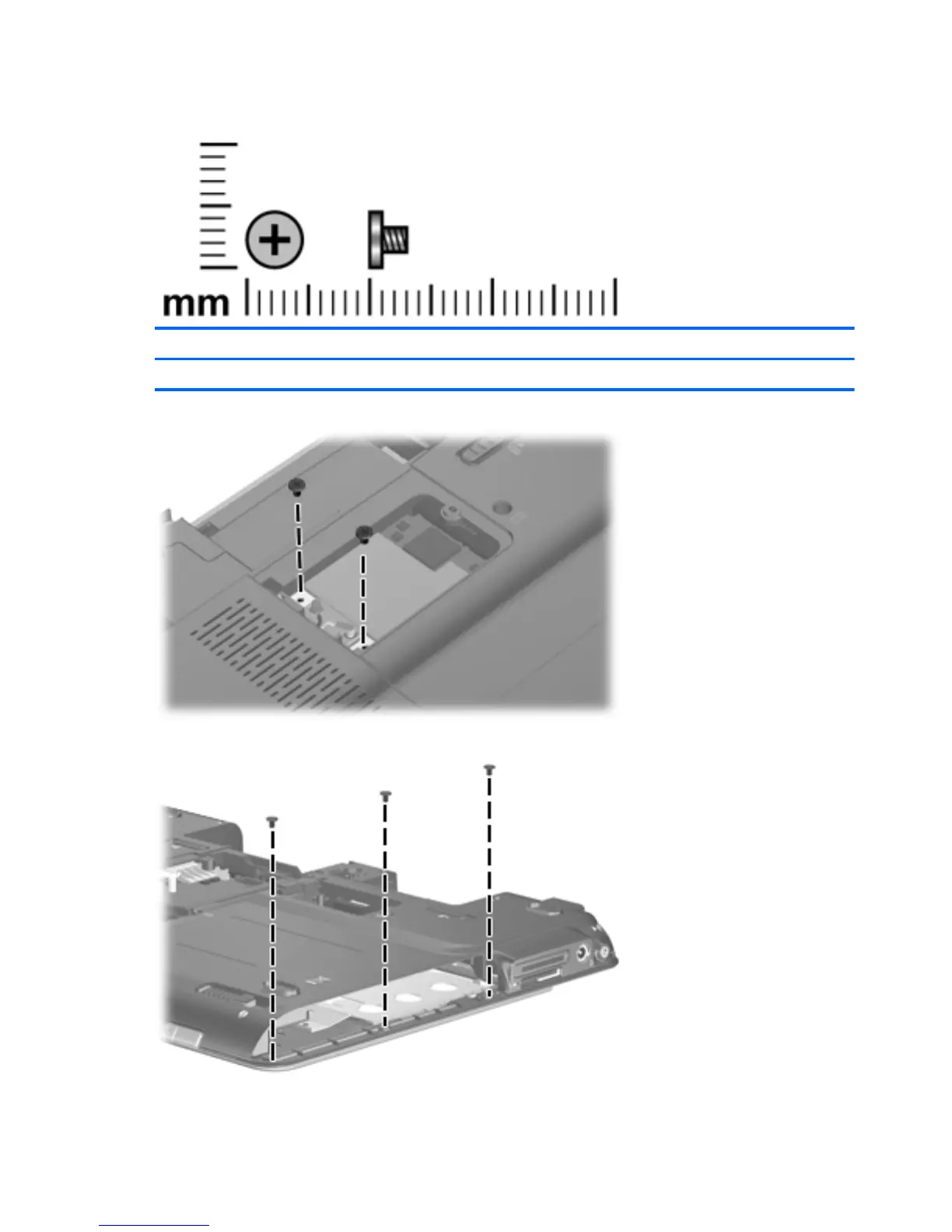

Black Phillips PM2.0×3.0 screw
Color
Quantity
Length
Thread
Head width
Black
5
3.0 mm
2.0 mm
4.5 mm
Where used
:
2 screws that secure th
e WLAN module to the computer
Where used
:
3 screws that secure the top cover to the base enclosure
90
Chapter 7 Screw listing
97
99
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Top Components
13
Display Components
13
Keys
15
Pointing Devices
16
Front Components
17
Left-Side Components
18
Right-Side Components
19
Rear Components
20
Bottom Components
21
3 Illustrated Parts Catalog
22
Service Tag
22
Computer Major Components
23
Plastics Kit
29
Mass Storage Devices
30
Miscellaneous Parts
31
Sequential Part Number Listing
32
4 Removal and Replacement Procedures
38
Preliminary Replacement Requirements
38
Tools Required
38
Service Considerations
38
Plastic Parts
38
Cables and Connectors
39
Drive Handling
39
Grounding Guidelines
40
Electrostatic Discharge Damage
40
Packaging and Transporting Guidelines
41
Workstation Guidelines
41
Equipment Guidelines
42
Unknown User Password
43
Component Replacement Procedures
44
Service Tag
44
Computer Feet
45
Battery
46
Pen
47
Hard Drive
48
RTC Battery
50
Optical Drive
51
Memory Module
52
WLAN Module
54
Keyboard
57
Switch Cover
59
Display Assembly
61
Top Cover
64
Power Switch Assembly
66
Bluetooth Module
68
System Board
69
Pen Holder and Pen Eject Assembly
72
Audio/Infrared Board
73
Fan/Heat Sink Assembly
75
Processor
77
5 Setup Utility
79
Starting the Setup Utility
79
Changing the Language of the Setup Utility
80
Navigating and Selecting in the Setup Utility
80
Displaying System Information
80
Restoring Default Settings in the Setup Utility
81
Using Advanced Setup Utility Features
81
Closing the Setup Utility
82
Setup Utility Menus
82
Main Menu
82
Security Menu
82
System Configuration Menu
83
Diagnostics Menu
83
6 Specifications
84
Computer Specifications
84
12.1-Inch, WXGA Brightview Display Specifications
85
Hard Drive Specifications
86
DVD±RW and CD-RW Supermulti Double-Layer Combo Drive Specifications
87
System DMA Specifications
88
System Interrupt Specifications
89
System I/O Address Specifications
90
System Memory Map Specifications
92
7 Screw Listing
93
Phillips PM3.0×3.0 Screw
93
Phillips PM2.0×7.0 Screw
94
Phillips PM2.0×4.0 Screw
95
Phillips PM2.0×5.0 Captive Screw
97
Black Phillips PM2.0×3.0 Screw
98
Phillips PM2.0×11.0 Screw
99
Phillips PM2.5×6.0 Screw
100
Silver Phillips PM2.0×3.0 Screw
101
8 Backup and Recovery
102
Recovering System Information
102
Creating Recovery Discs
102
Backing up Your Information
103
When to Back up
103
Backup Suggestions
104
Using System Restore Points
104
When to Create Restore Points
104
Create a System Restore Point
104
Restore to a Previous Date and Time
105
Performing a Recovery
105
Recovering from the Recovery Discs
105
Recovering from the Partition on the Hard Drive
105
9 Connector Pin Assignments
107
Audio-In (Microphone)
107
Audio-Out (Headphone)
107
External Monitor
108
Modem)
109
Network)
109
S-Video-Out
110
Universal Serial Bus
110
10 Power Cord Set Requirements
111
Requirements for All Countries or Regions
111
Requirements for Specific Countries or Regions
112
11 Recycling
113
Battery
113
Display
113
