HP XP1024 System Configuration

Fibre Address
In fabric environments, the port addresses are assigned automatically. In arbitrated
loop environments, set the port addresses by selecting a unique arbitrated loop
physical address (AL-PA) or loop ID for each port. For specificvalues,refertotheHP
StorageWorks
LUN Configuration and Security Manager XP User Guide applicable
to your array.
Fabric and Connection parameter settings

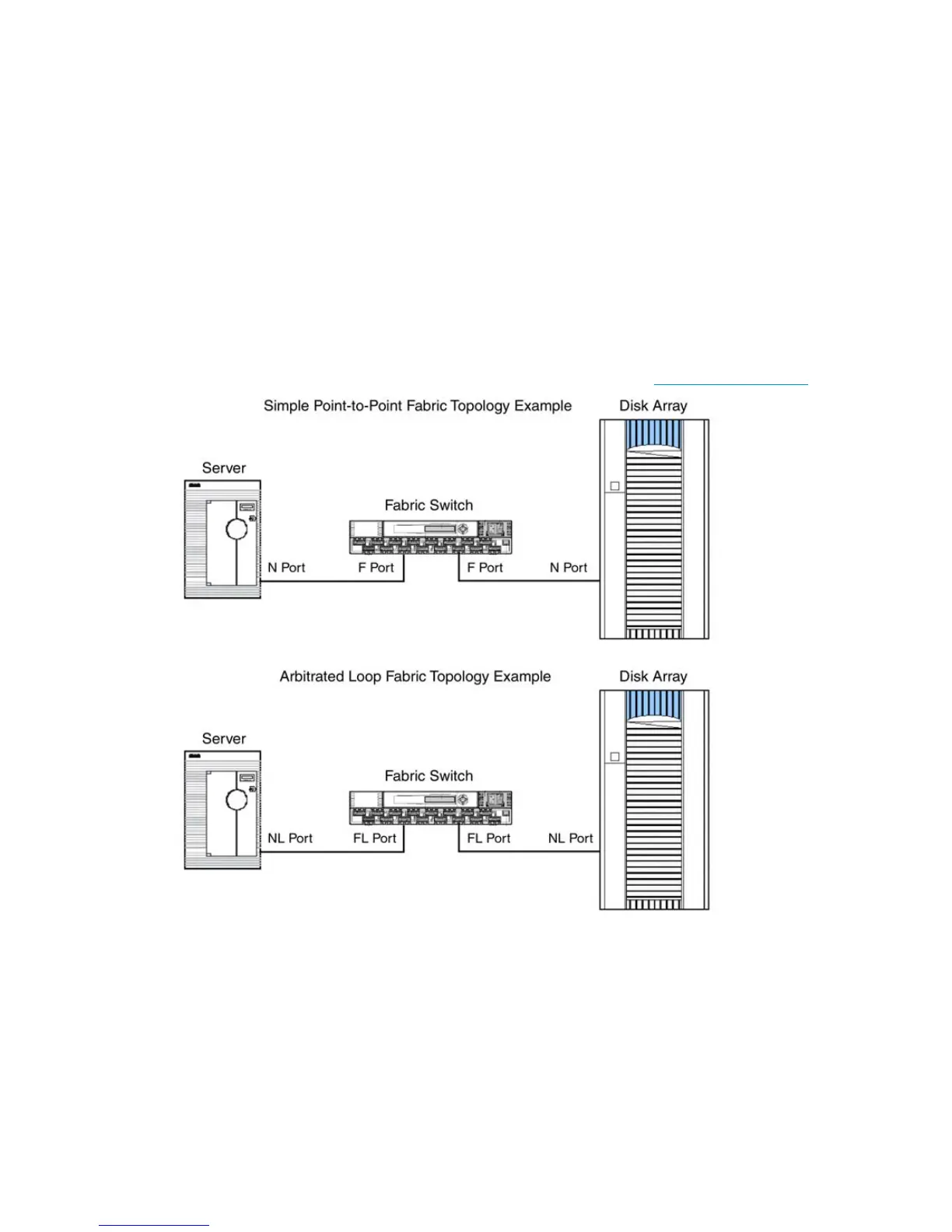

Set each array port to FABRIC ON or OFF with connections of POINT-TO-POINT or
FC-AL as shown in the following table and figu res. For detailed topology information,
refer to the HP StorageWo rks SAN Design Reference Guide on h
ttp: //www.hp.com.
Disk Array XP operating system configuration guide: HP-UX
17
