HP Z24f G3

14

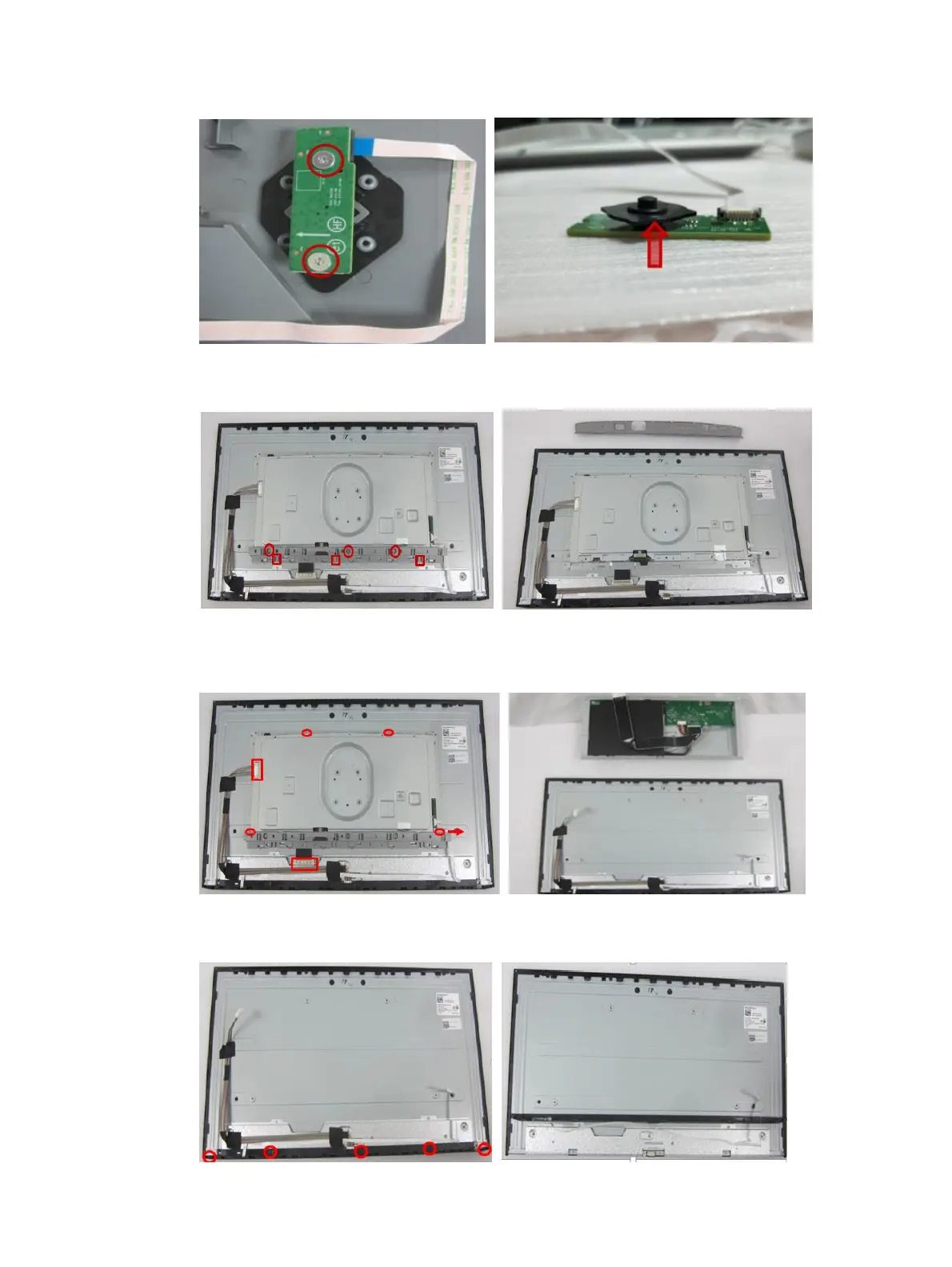

4) Release OSD key BD from rear cover
5) Remove IO cover from display head(Remove three screws and loose three hooks by hand)
6) Remove Bracket Assembly From Display Head: remove all inside cable, then remove the four screws from
the back bracket
7) Remove bezel bottom ASSY from display head(Remove five screws)
