HP Z27Q G3 User Manual

19

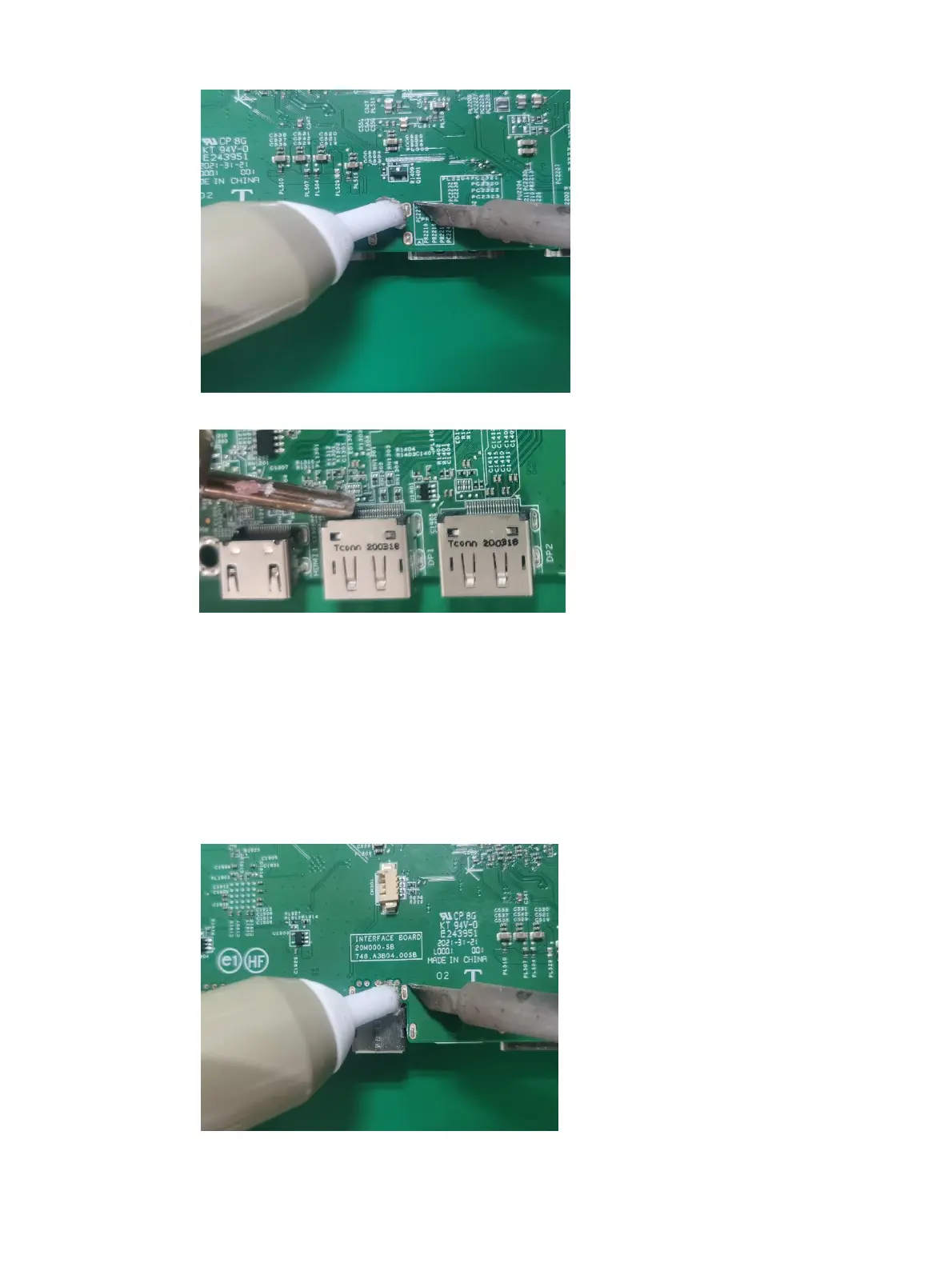

2) Use a hot air gun to melt the solder on the pins.
3) Lift the DP connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
USB-B connector USB1
Repair the USB-B connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the USB-B connector from the PCB.

HP Z27Q G3 Specifications

General

Screen Size	27 inches
Panel Type	IPS
Aspect Ratio	16:9
Brightness	350 cd/m²
Refresh Rate	60 Hz
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
HDCP Support	Yes
Integrated Speakers	No
Height Adjustment	Yes, 150 mm
Color Gamut	99% sRGB
VESA Mount	100 x 100 mm
Resolution	2560 x 1440 (QHD)
Ports	1 x DisplayPort 1.4, 1 x HDMI 2.0, 4 x USB-A 3.2 Gen 1, 1 x USB-C
Tilt	-5° to +20°
Pivot	Yes
Dimensions (with stand)	24.1 x 18.1 x 9.1 inches
Response Time	5 ms (gray to gray)
Swivel	±45°
