HP Z27Q G3 User Manual

15

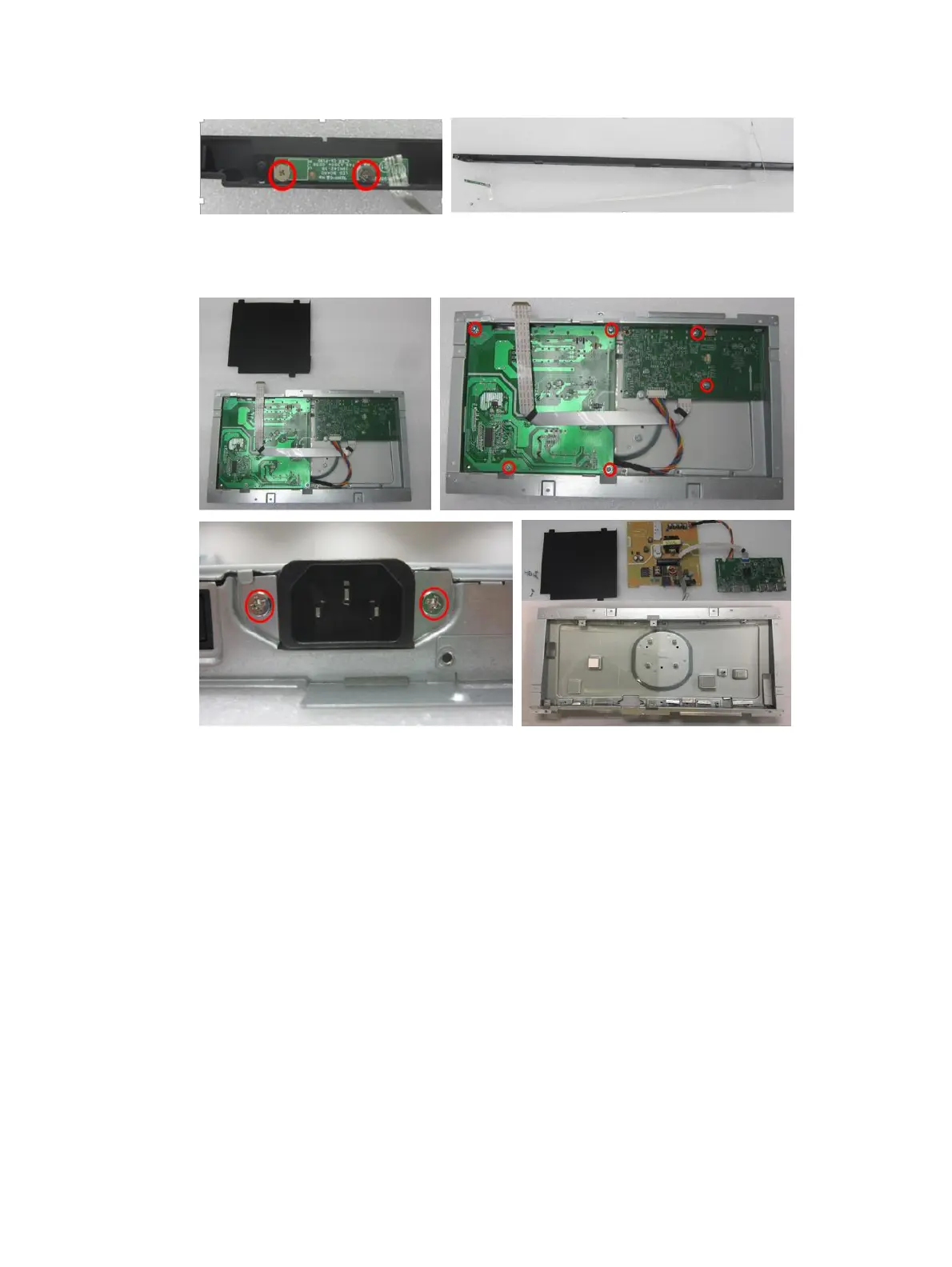

8) Remove Power Key Board from Bezel bottom assy.(Remove two screws)
9) Disassemble Bracket Assembly: remove black Mylar, then release the two AC screws from bracket, Release
the six screws for releasing the power board and interface board.
Power board
The power board part number is 755.A3B02.0001 or 755.A3B02.0002.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 12.
Remove the power board:
1) The HP Z27q G3 power board connector position is as follows:

HP Z27Q G3 Specifications

General

Screen Size	27 inches
Panel Type	IPS
Aspect Ratio	16:9
Brightness	350 cd/m²
Refresh Rate	60 Hz
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
HDCP Support	Yes
Integrated Speakers	No
Height Adjustment	Yes, 150 mm
Color Gamut	99% sRGB
VESA Mount	100 x 100 mm
Resolution	2560 x 1440 (QHD)
Ports	1 x DisplayPort 1.4, 1 x HDMI 2.0, 4 x USB-A 3.2 Gen 1, 1 x USB-C
Tilt	-5° to +20°
Pivot	Yes
Dimensions (with stand)	24.1 x 18.1 x 9.1 inches
Response Time	5 ms (gray to gray)
Swivel	±45°
