HP Z27Q G3 User Manual

14

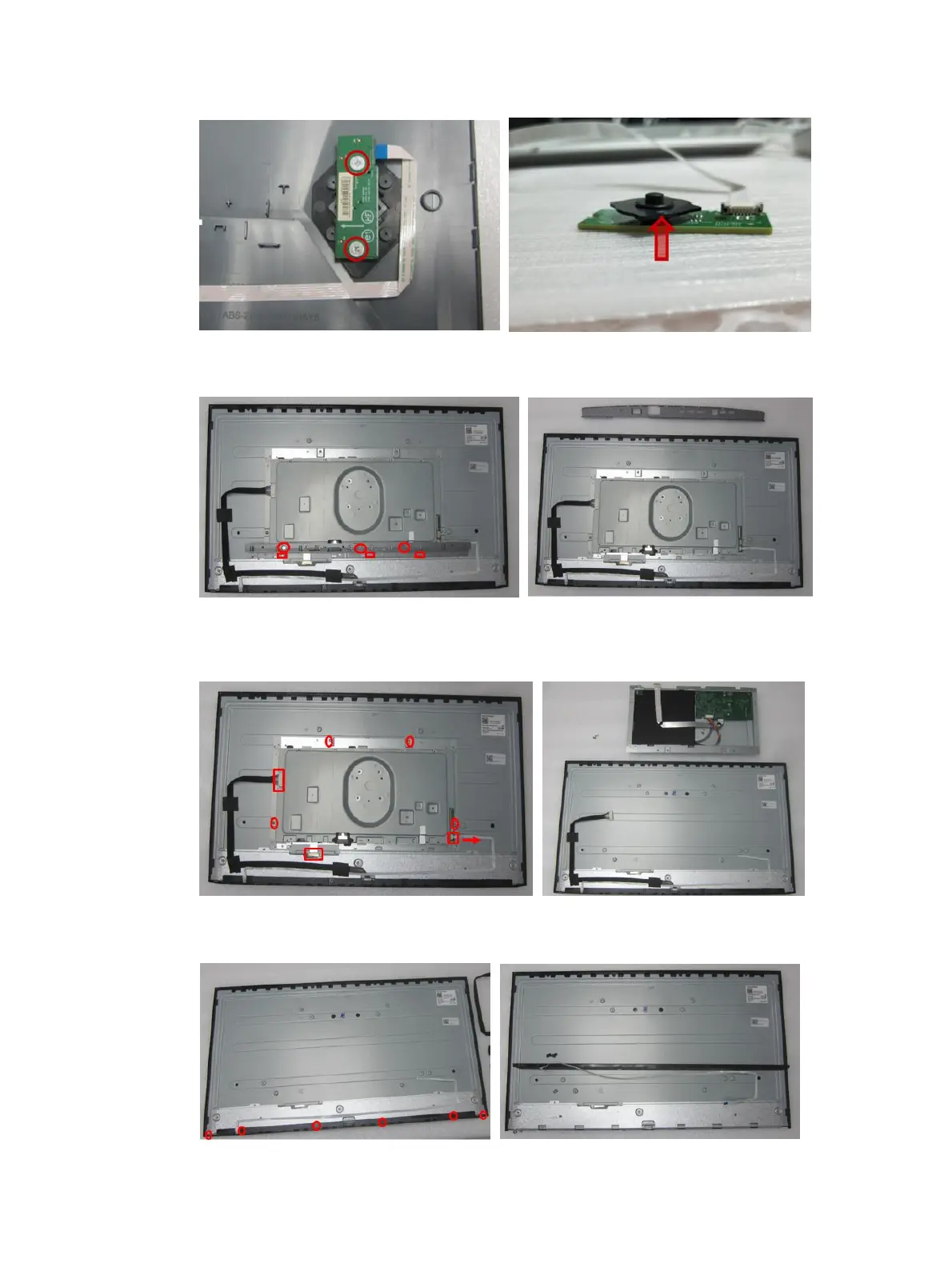

4) Release OSD key BD from rear cover
5) Remove IO cover from display head(Remove three screws and loose three hooks by hand)
6) Remove Bracket Assembly From Display Head: disconnect all inside cable, then remove the four screws
from the back bracket
7) Remove bezel bottom ASSY from display head(Remove five screws)

HP Z27Q G3 Specifications

General

Screen Size	27 inches
Panel Type	IPS
Aspect Ratio	16:9
Brightness	350 cd/m²
Refresh Rate	60 Hz
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
HDCP Support	Yes
Integrated Speakers	No
Height Adjustment	Yes, 150 mm
Color Gamut	99% sRGB
VESA Mount	100 x 100 mm
Resolution	2560 x 1440 (QHD)
Ports	1 x DisplayPort 1.4, 1 x HDMI 2.0, 4 x USB-A 3.2 Gen 1, 1 x USB-C
Tilt	-5° to +20°
Pivot	Yes
Dimensions (with stand)	24.1 x 18.1 x 9.1 inches
Response Time	5 ms (gray to gray)
Swivel	±45°
