HP Z27Q G3 User Manual

13

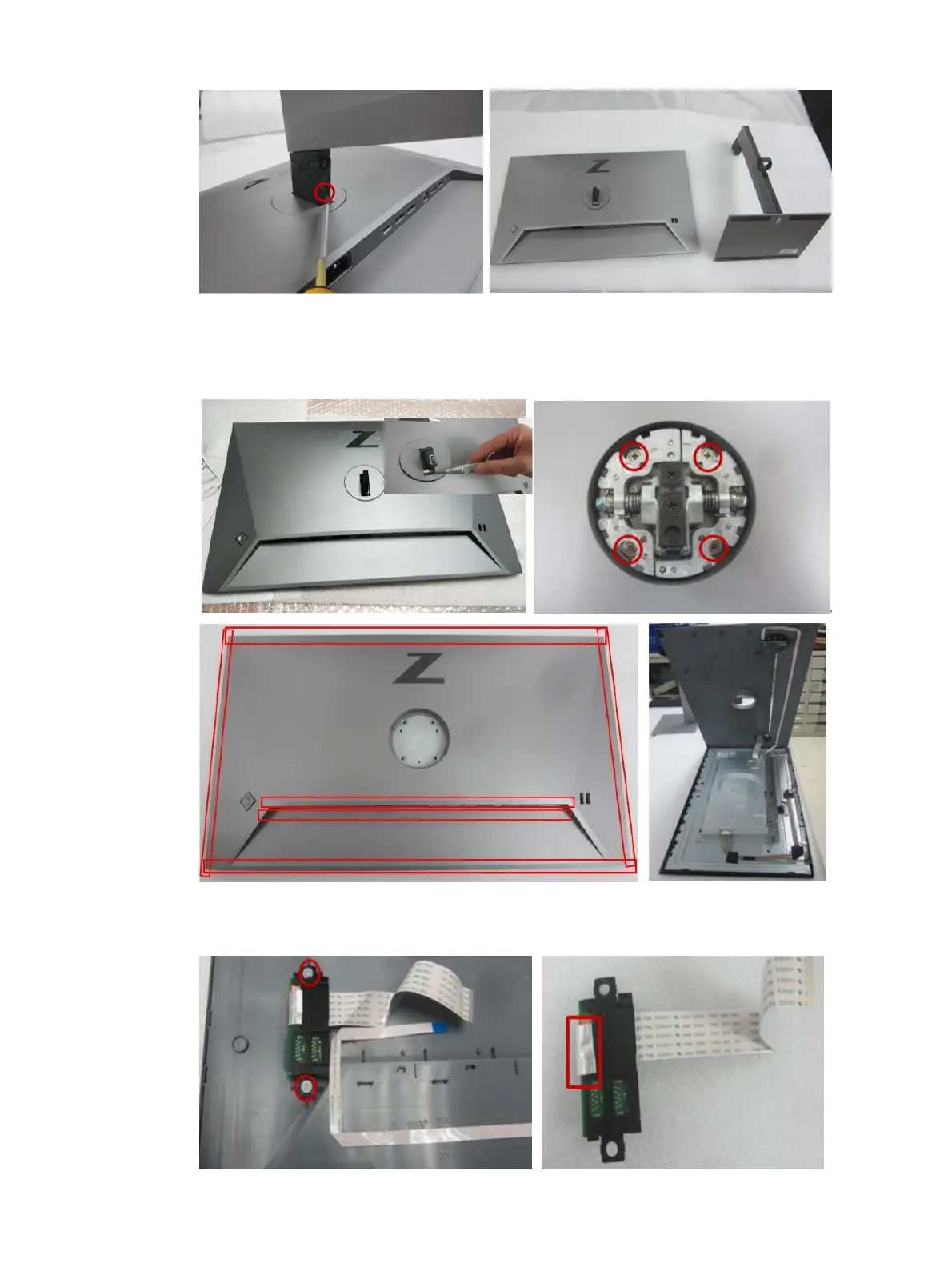

2) Remove Rear Cover From Display Head: Use the tool to remove the hinge cover, then Release the four
screws from back bracket and remove the hinge, then Loose all the hooks by hand for pulling the rear
cover
3) Remove USB BD Screws to remove USB BD: Remove the EMI gasket, then loose the two hooks by hand, then
remove the cable

HP Z27Q G3 Specifications

General

Screen Size	27 inches
Panel Type	IPS
Aspect Ratio	16:9
Brightness	350 cd/m²
Refresh Rate	60 Hz
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
HDCP Support	Yes
Integrated Speakers	No
Height Adjustment	Yes, 150 mm
Color Gamut	99% sRGB
VESA Mount	100 x 100 mm
Resolution	2560 x 1440 (QHD)
Ports	1 x DisplayPort 1.4, 1 x HDMI 2.0, 4 x USB-A 3.2 Gen 1, 1 x USB-C
Tilt	-5° to +20°
Pivot	Yes
Dimensions (with stand)	24.1 x 18.1 x 9.1 inches
Response Time	5 ms (gray to gray)
Swivel	±45°
