HP Z32k G3 User Manual

There are 2 types of KVM connections:
● Thunderbolt uses a Thunderbolt or USB Type-C cable only.
● USB Type-B uses a USB Type-B cable for USB data transfer and to connect with HDMI or DisplayPort for
video transfer.
The KVM function uses the current video input port. If the rst computer is disconnected, the KVM setting
switches to the powered-on second computer.

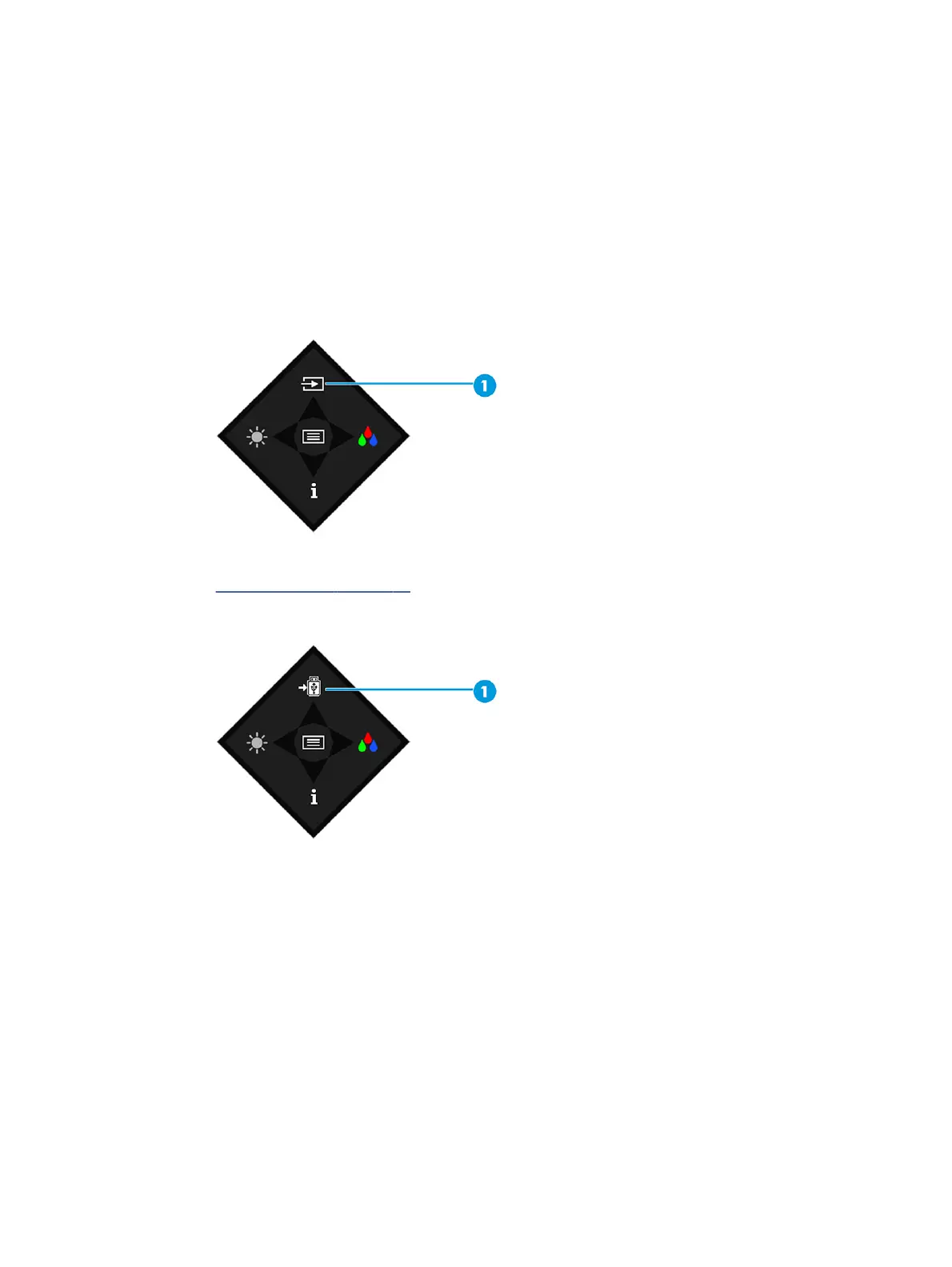

If two active computers are connected, the KVM function can be quickly switched by pressing the OSD Next
Input button (1).
In PbP mode, to activate the KVM function for two active computers, follow the instructions to rst enable PbP
mode (see Using PiP and PbP on page 24). Two video inputs will be shown picture by picture at the same
time. Next, you can quickly switch hosts by pressing the OSD USB host swap button (1).
20 Chapter 2Connecting a second computer to the monitor using the KVM function

HP Z32k G3 Specifications

General

Color depth	10 bit
Pixel pitch	0.18 x 0.18 mm
Screen shape	Flat
Pixel density	140 ppi
Backlight type	Edge LED
Display diagonal	31.5 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	29 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 135 kHz
sRGB coverage (typical)	100 %
Display bezel technology	Micro-Edge
Display number of colors	1.07 billion colors
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
Pivot angle	-90 - 90 °
Number of OSD languages	11
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR, RUS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	180 W
Power consumption (standby)	0.5 W
Power consumption (typical)	35 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DisplayPort, HDMI, Thunderbolt, USB Type-A to USB Type-B
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.4
USB upstream port type	USB Type-B, USB Type-C
USB Power Delivery up to	100 W
USB Type-A downstream ports quantity	4
Sustainability certificates	ENERGY STAR
HP segment	Business
Package depth	185 mm
Package width	816 mm
Package height	504 mm
Package weight	13700 g
Product color	Black, Silver

Weight and Dimensions

Depth (with stand)	217 mm
Width (with stand)	713.5 mm
Height (with stand)	604.9 mm
Weight (with stand)	9000 g
Depth (without stand)	47 mm
Height (without stand)	415.9 mm
