Front IO/User Interface (FIOUI) module
Follow these steps to remove the FIOUI module:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 15).
2. Remove the access panel (see Access panel on page 17).

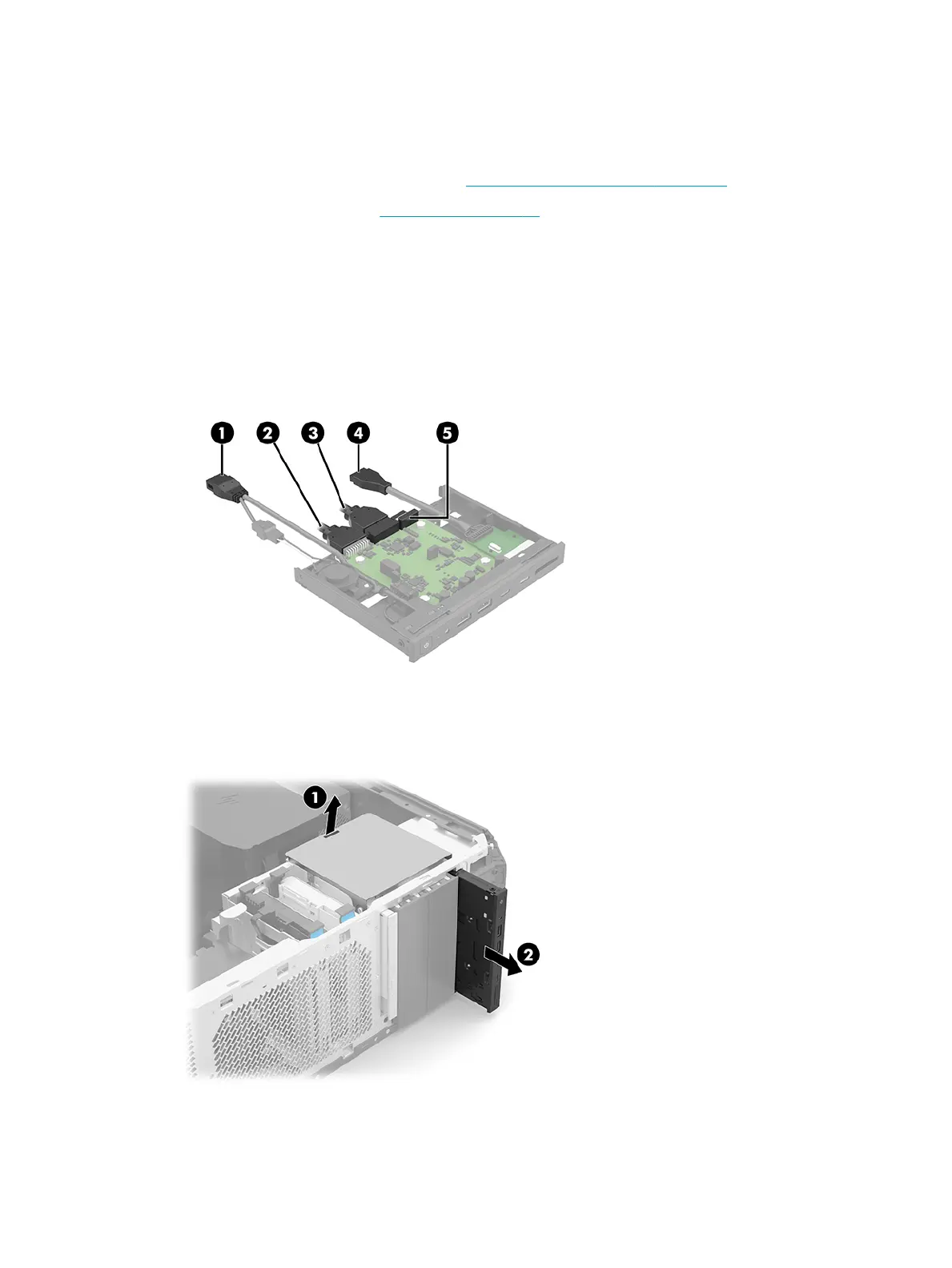

3. Disconnect the I/O front audio cable (1) from the system board.
4. Disconnect the FIOUI module FUI cable (2) from the FIOUI module.
5. Disconnect the FIOUI module USB cable (3) from the FIOUI module.
6. Disconnect the FIOUI module memory card reader cable (4) from the FIOUI module.
7. Disconnect the FIOUI module FIOUI-Premium (OCUlink) cable (5) from the FIOUI module.
8. Release the FIOUI module by lifting up on the drive release bar (1).
9. Press on the FIOUI module rear panel, and then remove the FIOUI module (2).
Reverse this procedure to install the FIOUI module.
