Memory fan assembly
Follow these steps to remove the memory fan assembly:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 15).
2. Remove the access panel (see Access panel on page 17).

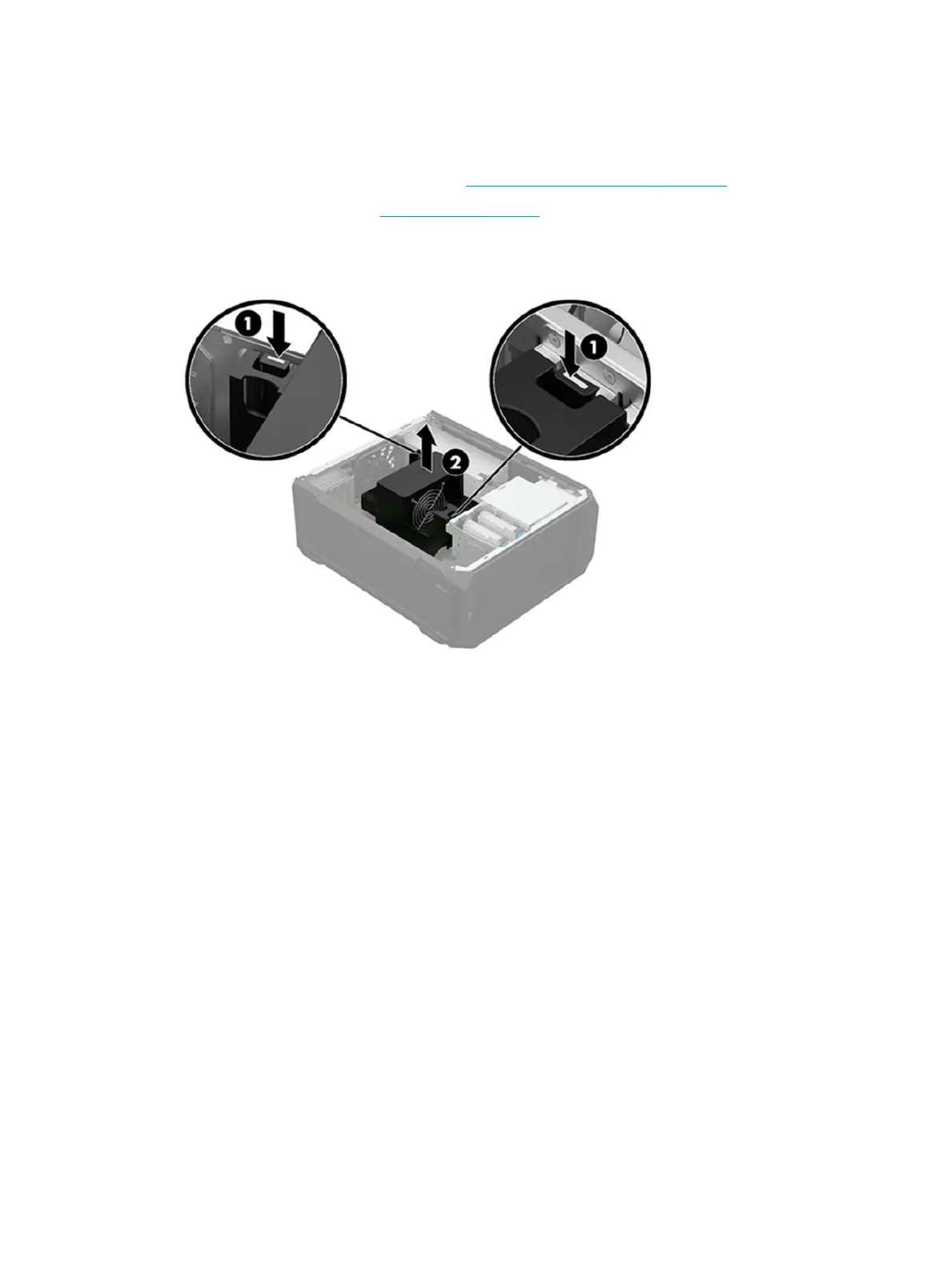

3. Release the memory fan assembly by pressing down on the release tabs (1).
4. Remove the memory fan assembly (2).
Reverse this procedure to install the memory fan assembly.
20 Chapter 4 Removal and replacement procedures
