6. Route the CPU power cable (P3) through the opening next to the power supply as shown in the
following figure.

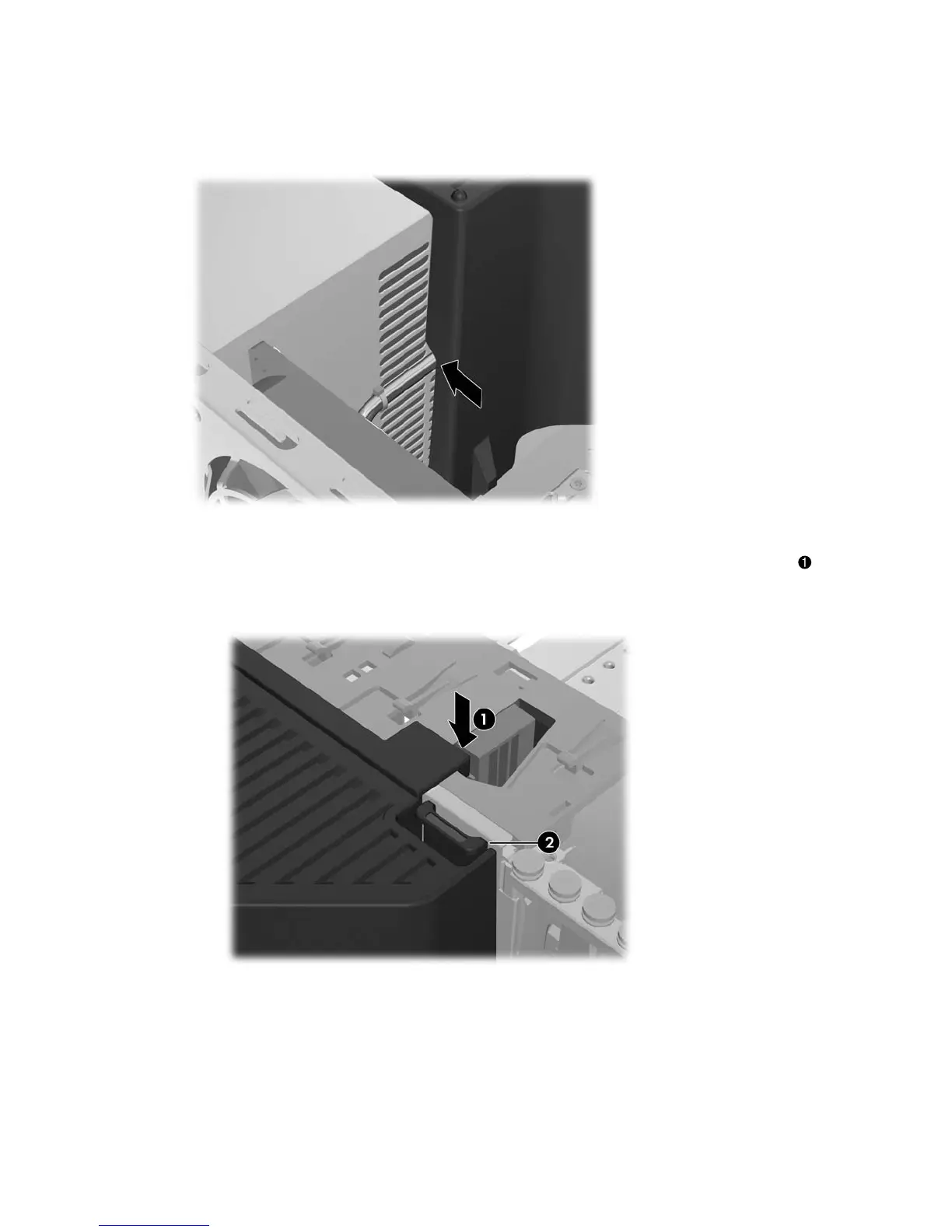

Figure 5-29 Routing the CPU power cable
7. Secure the airflow guide in the chassis.
a. Insert the tab on the airflow guide into the slot next to the yellow ODD release lever
, and
then press down as shown in the following figure.
Figure 5-30 Securing the airflow guide
b. Ensure that the airflow guide secures even with the end of the FDD bay, and that the latch
2
engages with the slot in the internal bay cover.
94 Chapter 5 Replacing components ENWW

HP Z400 - Workstation Specifications

General

Processor	Intel Xeon W3500 series
Chipset	Intel X58 Express
Memory	Up to 24 GB DDR3 ECC
Storage	Supports SATA drives
Graphics	NVIDIA Quadro or ATI FirePro series
Expansion Slots	2 PCI Express Gen2 x16, 1 PCI Express Gen2 x8
Power Supply	475W
Operating System	Red Hat Enterprise Linux
