Optical disk drive (mini-tower configuration)
This section describes how to remove and install an optical disk drive in the workstation mini-tower
configuration.
Removing an optical disk drive from the optical bay (mini-tower configuration)
1. Power down the workstation (see Predisassembly procedures on page 69).
2. Disconnect power from the workstation (see
Predisassembly procedures on page 69).
3. Remove the side access panel (see
Removing the side access panel on page 72).
4. Remove the airflow guide (see
Removing the airflow guide on page 92).
5. Remove the front bezel (see
Removing the front bezel on page 75).
6. Disconnect the data
and power
2
cables from the optical disk drive as shown in the following
figure.

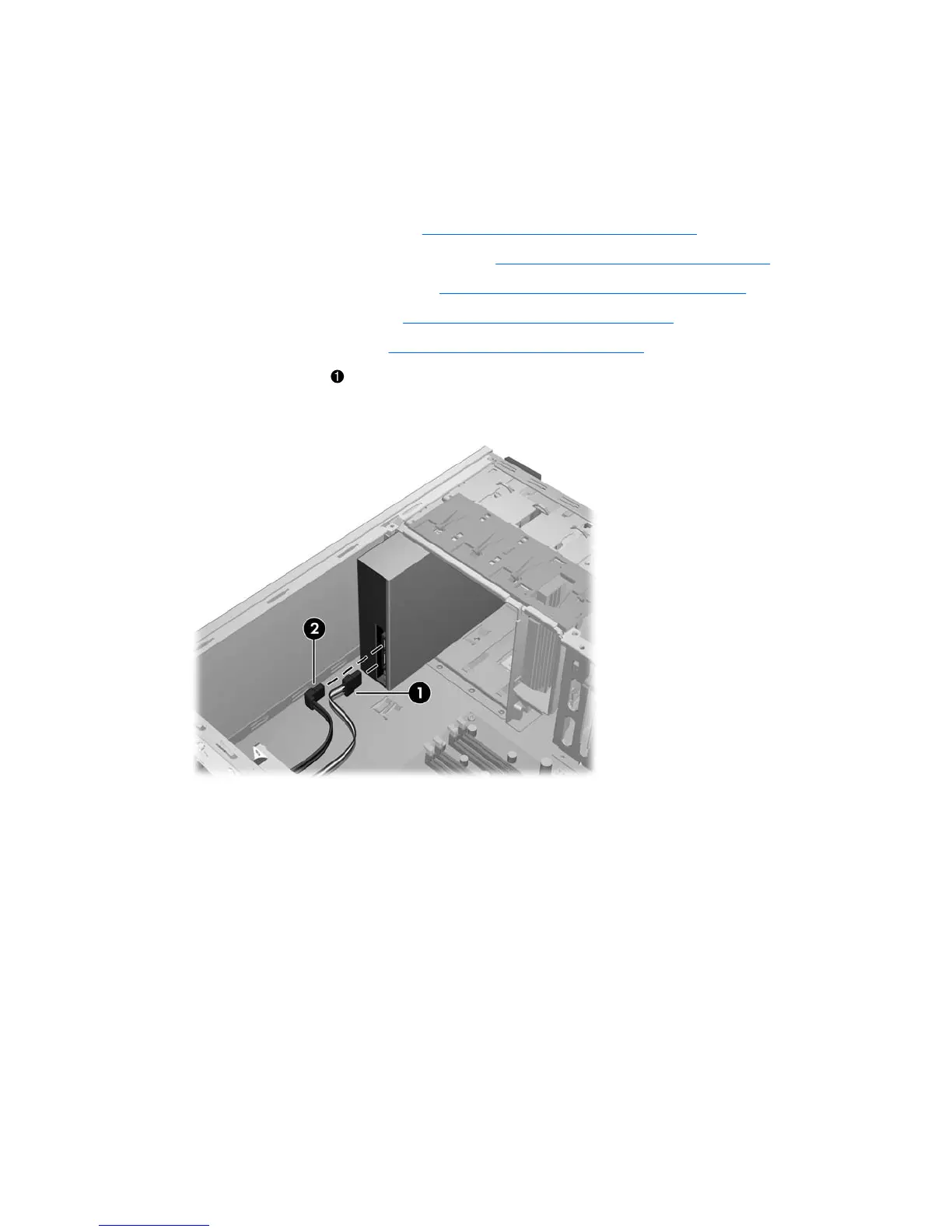

Figure 5-13 Disconnecting optical disk drive cables
80 Chapter 5 Replacing components ENWW
