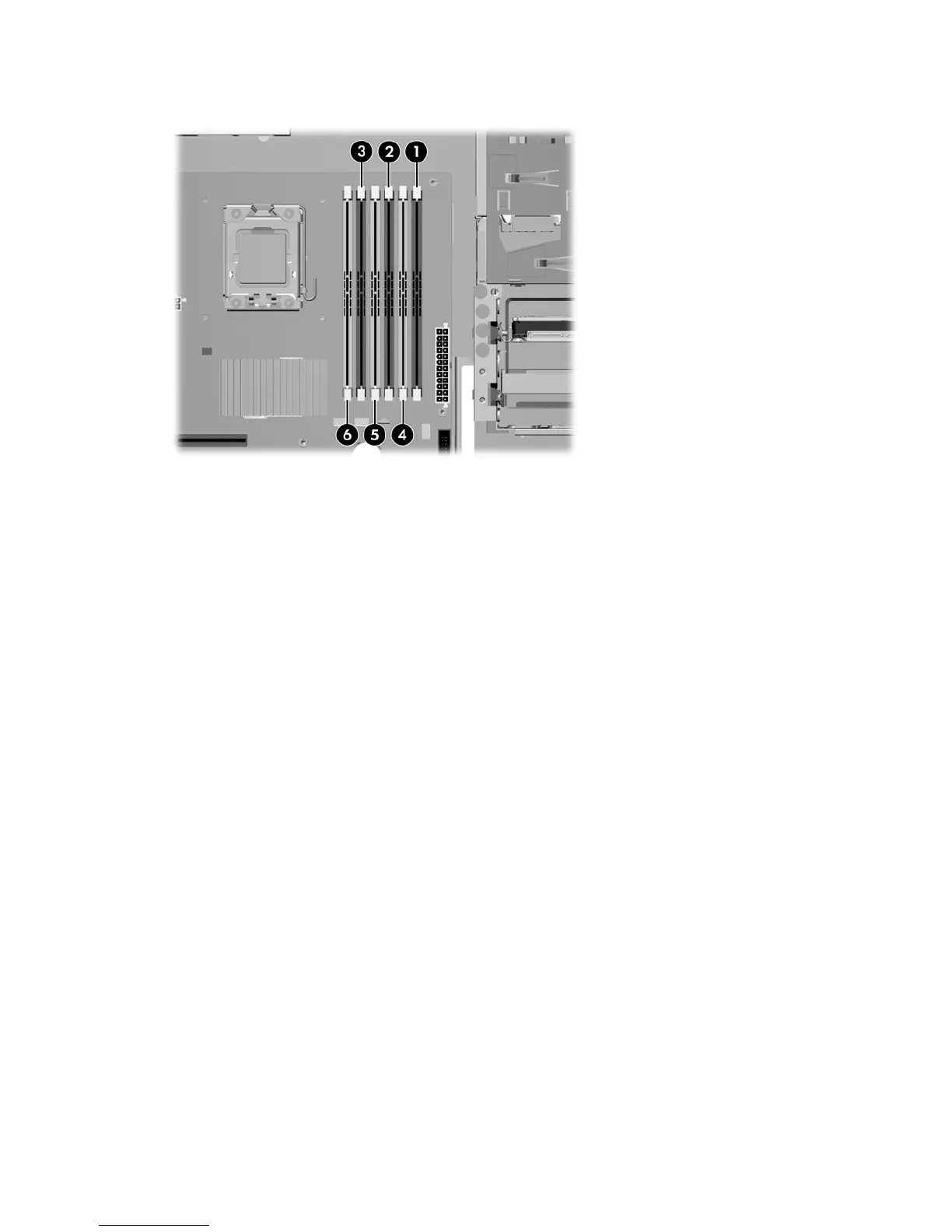

Figure 5-33 6–DIMM load order
Supported DIMM configurations
The workstation supports these DIMM arrangements, depending on which Z400 product you order:
●
Up to six DIMM slots
●
Memory range from 1 GB to 16GB for the 4-DIMM product
●
Memory range from 1 GB to 24GB for the 6-DIMM product
●
No support for mirroring
●
No support for DIMM sparing
BIOS errors and warnings
The BIOS generates warnings/errors on invalid memory configurations:
●
If the BIOS can find a valid memory configuration by disabling plugged-in memory, it does so and
reports a warning during POST. the workstation can still be started. The warning will indicate the
location of the failed DIMM on the system board or memory riser.
●
If there is no way for the BIOS to obtain a valid memory configuration by disabling plugged-in
memory, the BIOS halts with a diagnostics 2006 code for memory error (five beeps and blinks).
ENWW Removing and installing components 97
