4. Remove the expansion card support, if installed. Some workstation models use a bar support;
remove the two screws
and lift up on the support
2
.

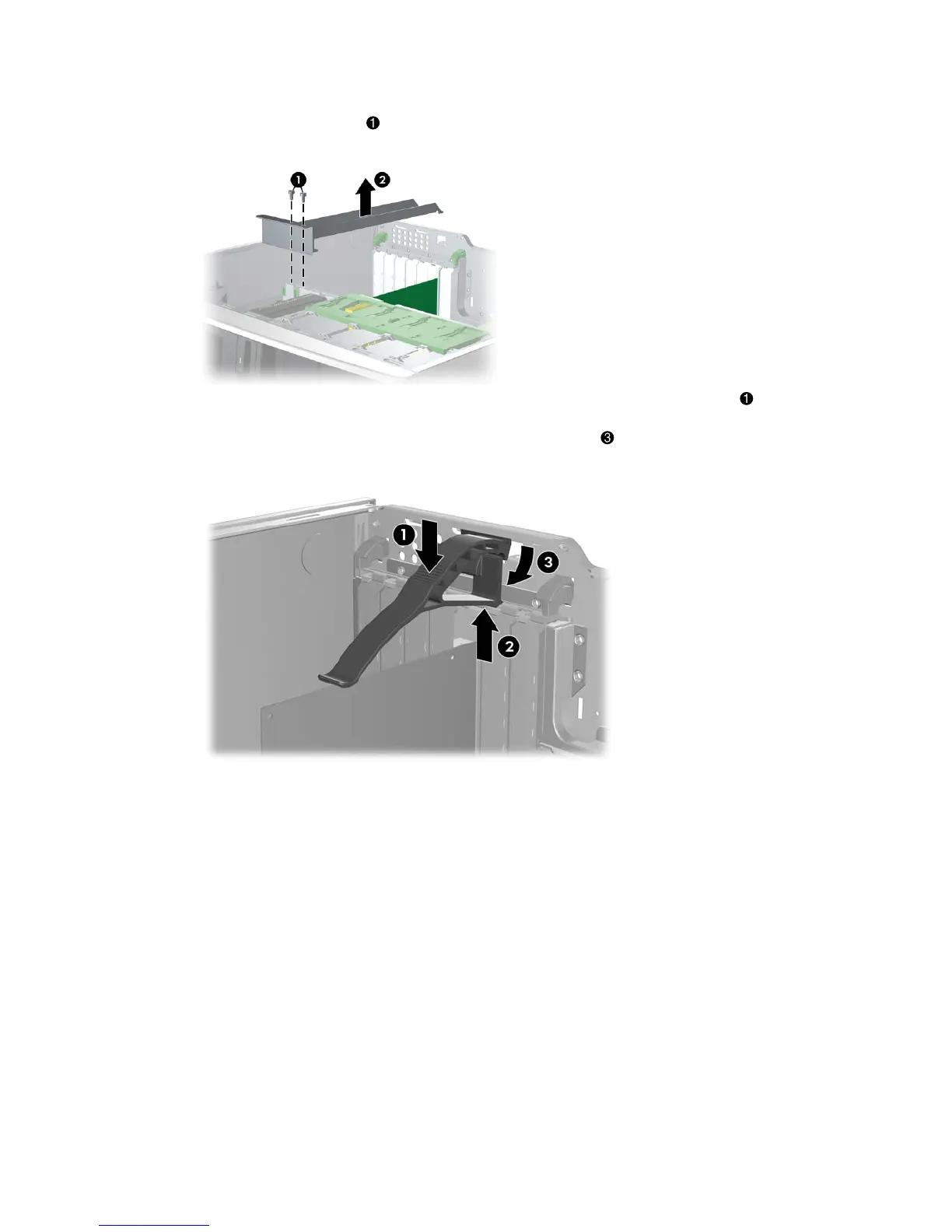

Figure 5-38 Removing expansion card support
Other workstation models use a hold down clamp; grasp the top of the clamp , squeeze the
release handles until the bottom of the clamp releases from the clamp rail
2
(it should click when
it releases), and swing the clamp out from the back panel
.
Figure 5-39 Removing expansion card clamp
5. Remove all cables connected to the expansion card.
ENWW Removing and installing components 105
