HP Z400 - Workstation User Manual

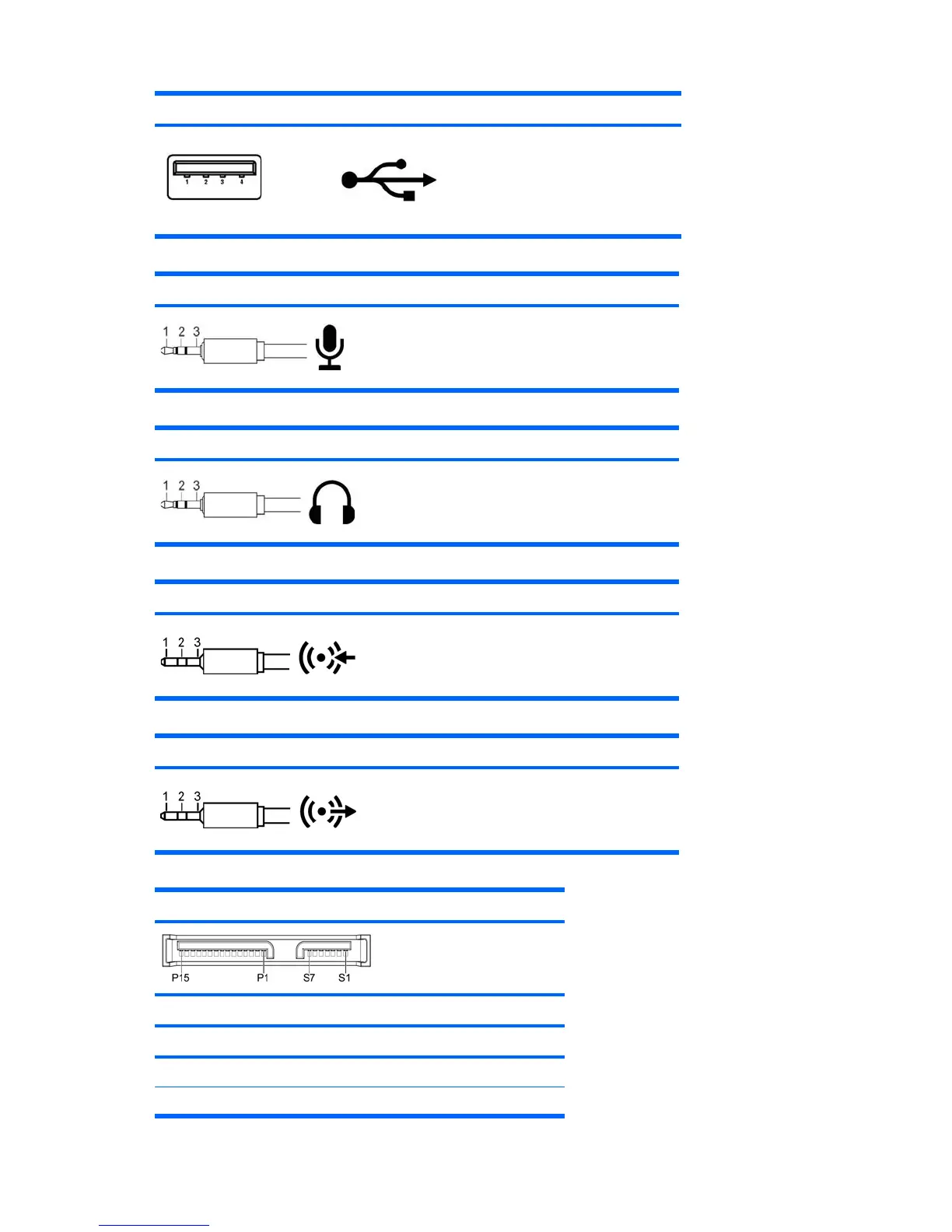

Workstation USB Pin Signal
1
2
3
4
+5 VDC
- Data
+ Data
Ground
Microphone cable (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio
Power
Ground
Headphone cable (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Left
Audio_Right
Ground
Audio line-in cable (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_In_Left
Audio_In_Right
Ground
Line-out audio cable (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Out_Left
Audio_Out_Right
Ground
SATA drive
Pin Signal Pin Signal Pin Signal
Data Cable Power Cable Power Cable
S1 Ground P1 3.3V power P8 5V power
S2* A+ P2 3.3V power P9 5V power
190 Appendix A Connector pins ENWW

HP Z400 - Workstation Specifications

General

Processor	Intel Xeon W3500 series
Chipset	Intel X58 Express
Memory	Up to 24 GB DDR3 ECC
Storage	Supports SATA drives
Graphics	NVIDIA Quadro or ATI FirePro series
Expansion Slots	2 PCI Express Gen2 x16, 1 PCI Express Gen2 x8
Power Supply	475W
Operating System	Red Hat Enterprise Linux
