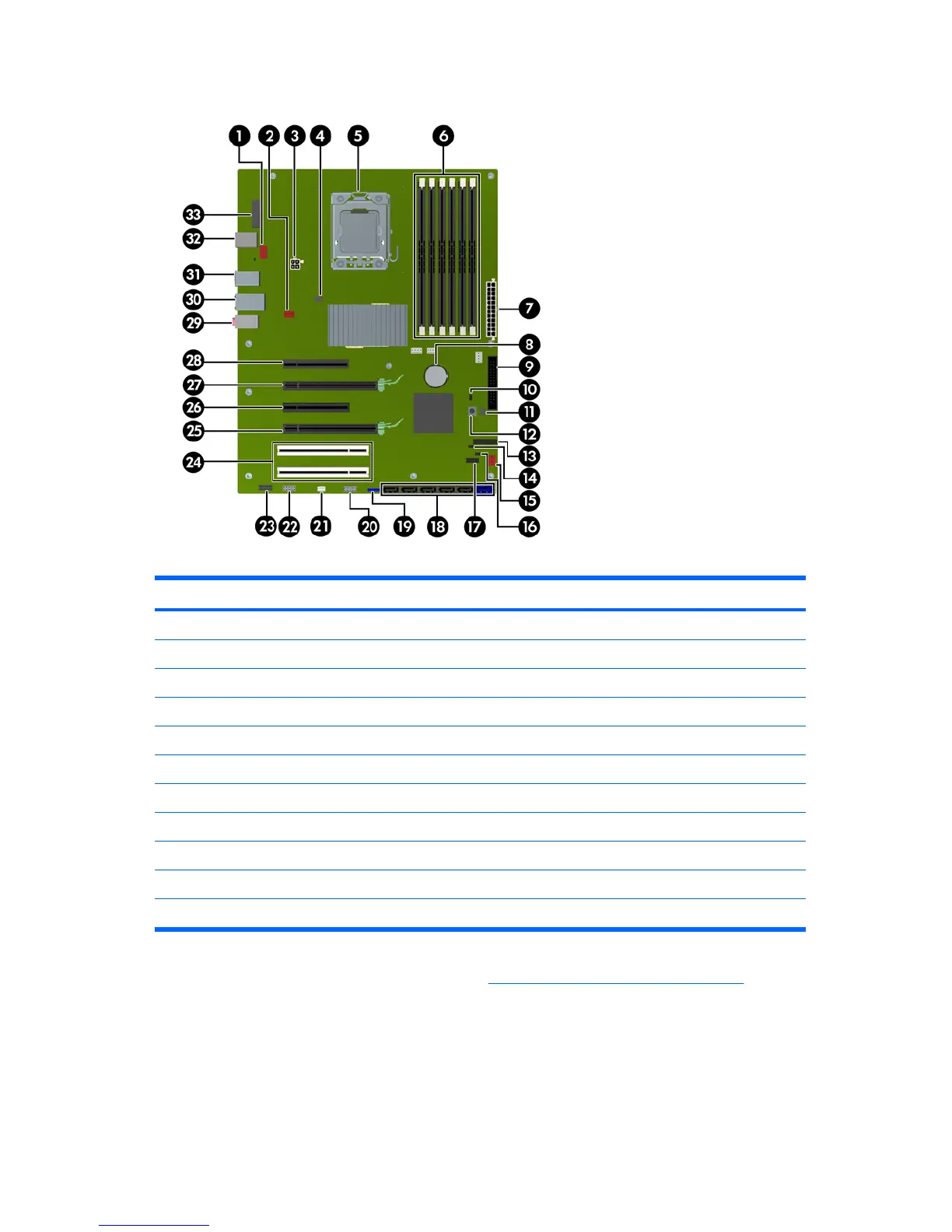

Figure 5-2 6-DIMM configuration system board components
Table 5-3 6-DIMM system board components ID
Item Component Item Component Item Component
1 CPU fan 12 Clear CMOS button 23 Front audio
2 Rear chassis fan 13 Front power button/LED 24 PCI 32/33
3 CPU power 14 Crisis recovery jumper 25 PCIe2 x16
4 Solenoid hood lock 15 Front chassis fan 26 PCIe x8(4)
5 CPU socket 16 HDD LED 27 PCIe2 x16
6 Memory sockets 17 Internal USB 1/DASH 28 PCIe2 x8(4)
7 Main power 18 SATA ports 29 Audio
8 Battery 19 Internal USB 2 30 Network/USB
9 Floppy disk drive 20 Front USB 31 USB
10 Password jumper 21 Speaker 32 Keyboard/mouse
11 Chassis intrusion switch 22 Front 1394a 33 Serial
For related system architecture information, see System board architecture on page 2.
68 Chapter 5 Replacing components ENWW
