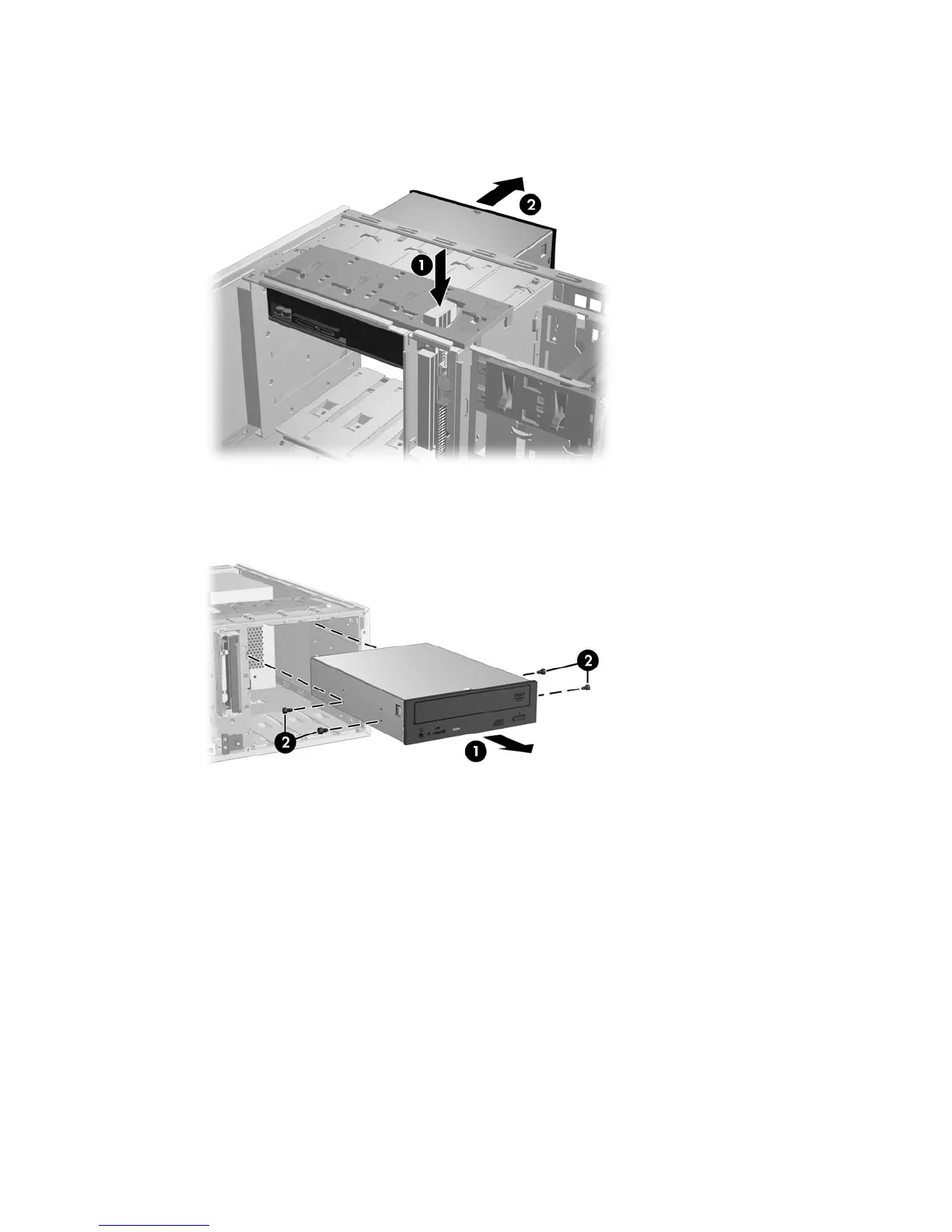

6. Press down on the yellow drive-lock release lever (1) and gently slide the drive out of the chassis
(2).
Figure 5-18 Removing the optical drive from chassis
7. After removing the drive (1), remove the four guide screws from the drive (2) if you plan to install
another drive.
Figure 5-19 Removing the optical drive screws
ENWW Removing and installing components 85
