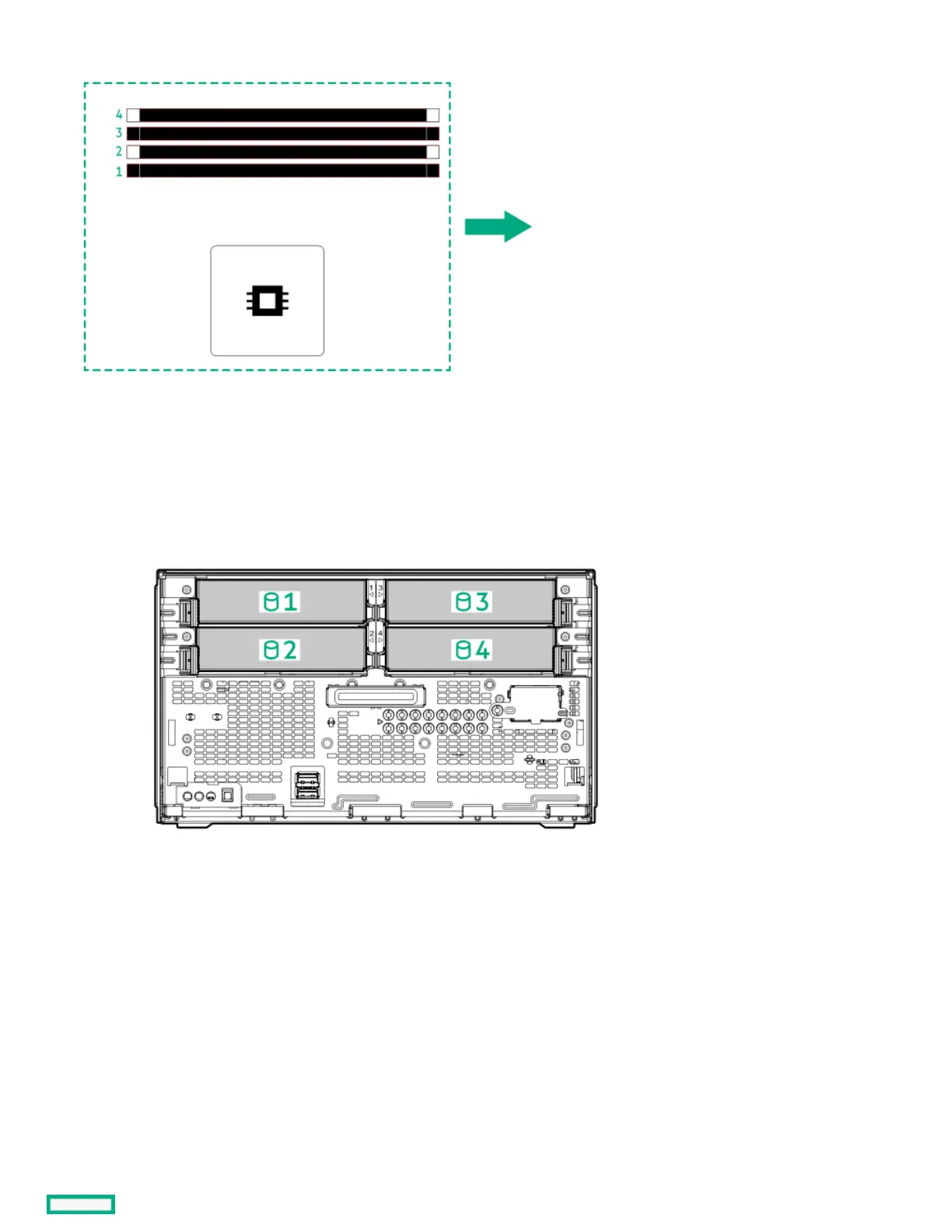

Drive bay numberingDrive bay numbering
Drive screwsDrive screws
There are 16 T-15 Torx screws located under the drive bays. Use these screws to install drives in the server.
HPE ProLiant MicroServer Gen11 Maintenance and Service Guide 111
