HPE ProLiant MicroServer Gen11 - Page 47

Expansion card
Serial port cable

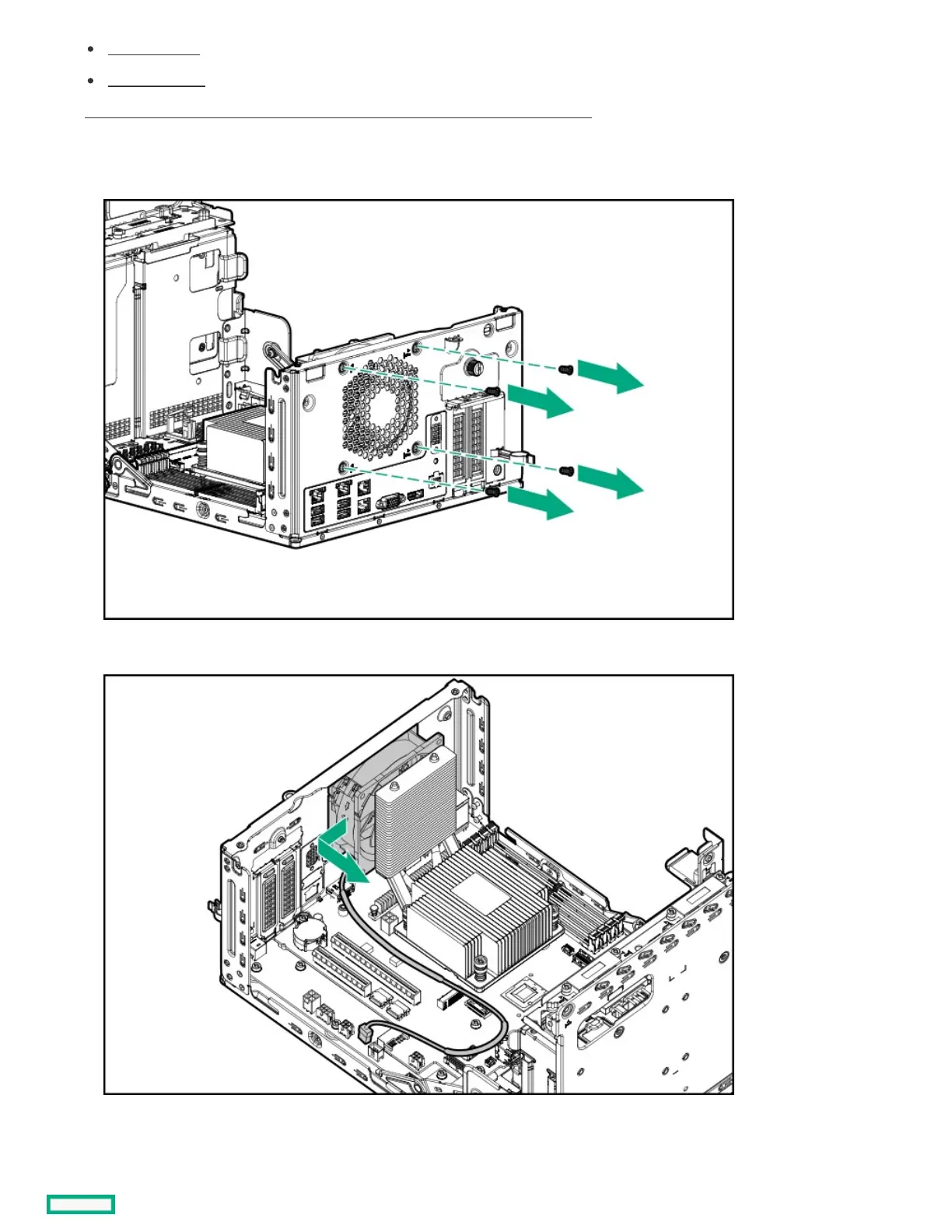

11. Disconnect the fan cable from the PDB and then release it from the cable tie and clips .
12. Remove the fan:
a. Remove the fan screws from the rear panel.
b. Remove the fan from between the rear panel and the heatsink.
ResultsResults
To replace the component, reverse the removal procedure.
HPE ProLiant MicroServer Gen11 Maintenance and Service Guide 47
